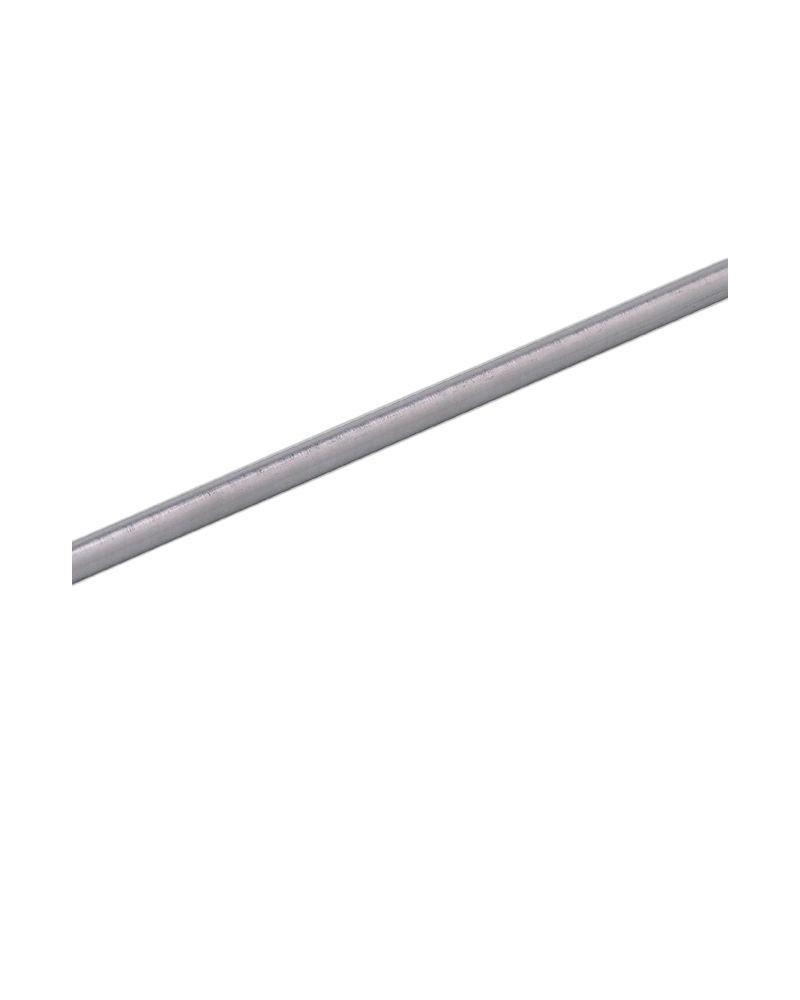

The IFM E43351 LR Probe L210 is a 210 mm probe designed for use with IFM LR level sensors. It is required for guided-wave radar level measurement and supports reliable detection of suitable liquid media. The probe is manufactured from stainless steel 316L for durable industrial use. Its compact length is suitable for smaller tanks and vessels requiring precise level sensing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43351 is designed as a probe accessory for IFM LR level sensors using guided-wave radar technology. It provides the physical sensing element required for level measurement applications. The 210 mm probe length makes it suitable for installations with relatively compact measurement requirements. It can be used for detecting aqueous media and other compatible liquids.
The probe is manufactured from stainless steel 1.4404 / 316L, offering good mechanical durability and corrosion resistance. Its stainless steel construction makes it suitable for a range of industrial process environments. The probe can be shortened where required to adapt the installation to different container heights. A specified tightening torque of 4 Nm supports proper mechanical installation.
The E43351 is suitable for applications involving coolant emulsions, cleaning liquids and heavily polluted water. Its compact 210 mm length provides flexibility for smaller process vessels and tanks. The probe can be adapted to the required installation height by shortening where permitted. This helps simplify installation across different process configurations.
210 mm probe length
Designed for IFM LR level sensors
Suitable for guided-wave radar systems
Stainless steel 316L construction
Suitable for aqueous media
Adaptable by shortening the probe
Suitable for coolant emulsions
Suitable for cleaning liquids
Quick and secure installation
Liquid level measurement
Small process tanks
Coolant monitoring
Cleaning liquid monitoring
Water level monitoring
Industrial process automation
| Specification | Details |
|---|---|
| Product Code | E43351 |
| Product Type | Probe for Level Sensors |
| Model | LR PROBE L210 |
| Sensor Series | IFM LR |
| Probe Length | 210 mm |
| Material | Stainless steel 1.4404 / 316L |
| Weight | Approximately 90.2 g |
| Tightening Torque | 4 Nm |
| Application | Guided-wave radar level sensing |
| Suitable Media | Aqueous media, coolant emulsions, cleaning liquids |
| Pack Quantity | 1 piece |
