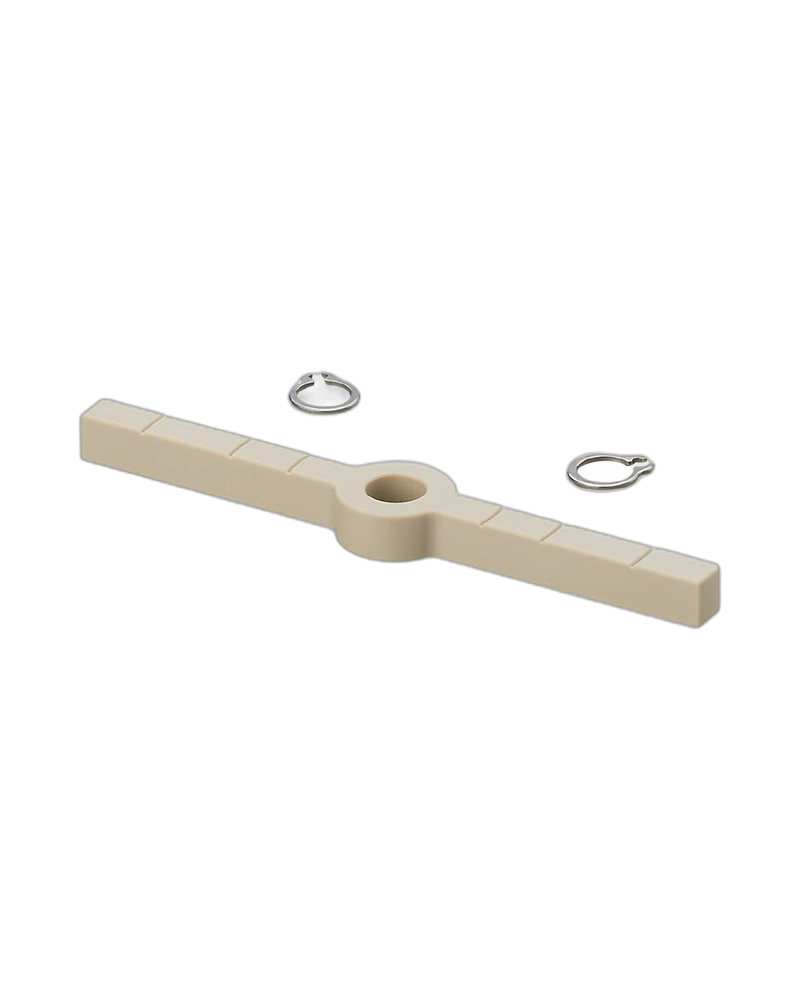

The IFM E43350 Centering Device is designed to provide reliable centering and positioning of LR level sensor probes. It is suitable for bypass installations and internal pipes with diameters from 30 to 100 mm. The device is manufactured from durable PEEK-GF30 material and includes retaining rings for secure positioning. Its compact construction supports stable probe alignment in level measurement systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43350 helps maintain the correct position of LR level sensor probes inside bypasses and internal pipes. Proper probe centering can support consistent sensor positioning during level measurement. It is designed for installations where the probe needs to remain centrally aligned within the process area. This makes it a useful accessory for guided-wave radar level sensing applications.
The centering device is manufactured from PEEK-GF30, providing a lightweight yet mechanically stable construction. Its compact design makes it easy to integrate with compatible LR probes. The material is suitable for industrial sensor accessory applications requiring dependable mechanical performance. The device weighs approximately 8.4 g, minimizing additional load on the installation.
The E43350 is supplied with two retaining rings to support secure positioning of the centering device. It is designed for bypass and internal pipe diameters between 30 and 100 mm. Its simple construction allows straightforward installation and adjustment during sensor setup. The accessory helps maintain a controlled probe position during continuous operation.
Designed for IFM LR level sensor probes
Reliable probe centering
Suitable for 30–100 mm internal pipe diameter
PEEK-GF30 construction
Lightweight design
Includes two retaining rings
Compact installation
Supports stable probe positioning
Weight approximately 8.4 g
Guided-wave radar level measurement
Bypass level measurement systems
Internal pipe installations
Liquid level monitoring
Industrial process vessels
Tank level sensing
| Specification | Details |
|---|---|
| Product Code | E43350 |
| Product Type | Centering Piece |
| Model | CENTERING DEVICE LR PROBE |
| Compatible Product | LR level sensor probes |
| Application | Bypass and internal pipe installations |
| Suitable Internal Diameter | 30–100 mm |
| Material | PEEK-GF30 |
| Weight | Approximately 8.4 g |
| Accessories Supplied | 2 retaining rings |
| Installation Type | Probe centering |
| Pack Quantity | 1 piece |
