The IFM E43349 Variable Clamp Adapter 150 is designed for hygienic installation of the LMT104 level sensor in industrial process applications. It provides a secure and adjustable connection through a G1/2 hygienic interface. The adapter combines PEEK-GF30 and stainless steel 316L construction for reliable mechanical performance. Its variable clamp design supports convenient installation and stable sensor positioning.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43349 provides a practical mounting solution for the IFM LMT104 level sensor in hygienic process installations. Its design supports connection through a G1/2 hygienic fitting arrangement. The adjustable clamp mechanism allows the sensor position to be secured according to installation requirements. This makes it suitable for process equipment where reliable and hygienic sensor mounting is important.
The adapter uses stainless steel 316L and PEEK-GF30 materials for dependable mechanical performance. Wetted parts are made from PEEK, while the housing incorporates stainless steel components. The clamp fitting is designed for controlled tightening to maintain a secure connection. This construction supports reliable operation in demanding industrial environments.

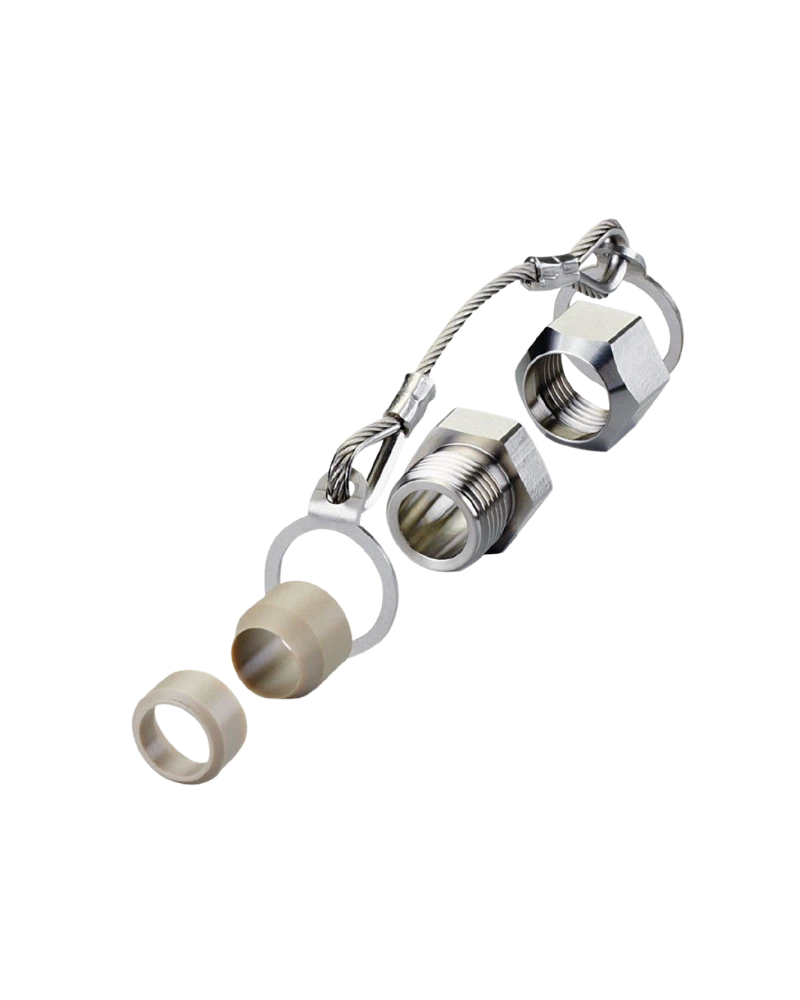

The variable clamp arrangement allows the sensor to be installed and secured without complicated mounting procedures. The adapter includes a retaining element and security cable for improved installation security. Its compact design is suitable for process equipment where controlled sensor positioning is required. The adapter is particularly useful for hygienic level measurement installations using compatible IFM components.
Variable clamp adapter design
Suitable for IFM LMT104 level sensor
G1/2 hygienic connection
PEEK-GF30 and stainless steel 316L construction
Metal-to-PEEK sealing arrangement
Secure clamp mounting
Maximum vessel pressure up to 6 bar
Compact and practical installation design
Weight approximately 174.5 g
Hygienic level measurement
Food and beverage processing equipment
Liquid storage vessels
Process tanks
Sanitary process systems
Industrial level monitoring
| Specification | Details |
|---|---|
| Product Code | E43349 |
| Product Type | Variable Clamp Adapter |
| Model | VARIABLE CLAMP ADAPTER 150 |
| Compatible Sensor | IFM LMT104 |
| Application | Hygienic process applications |
| Sensor Connection | G1/2 sealing cone |
| Adapter Design | Variable clamp |
| Wetted Material | PEEK |
| Housing Material | PEEK-GF30 / Stainless steel 316L |
| Surface Characteristics | Ra < 0.8 µm / Rz 4 µm |
| Maximum Vessel Pressure | 6 bar |
| Clamp Tightening Torque | 25–30 Nm |
| Knurled Nut Torque | Minimum 25 Nm |
| Weight | Approximately 174.5 g |
| Pack Quantity | 1 piece |
