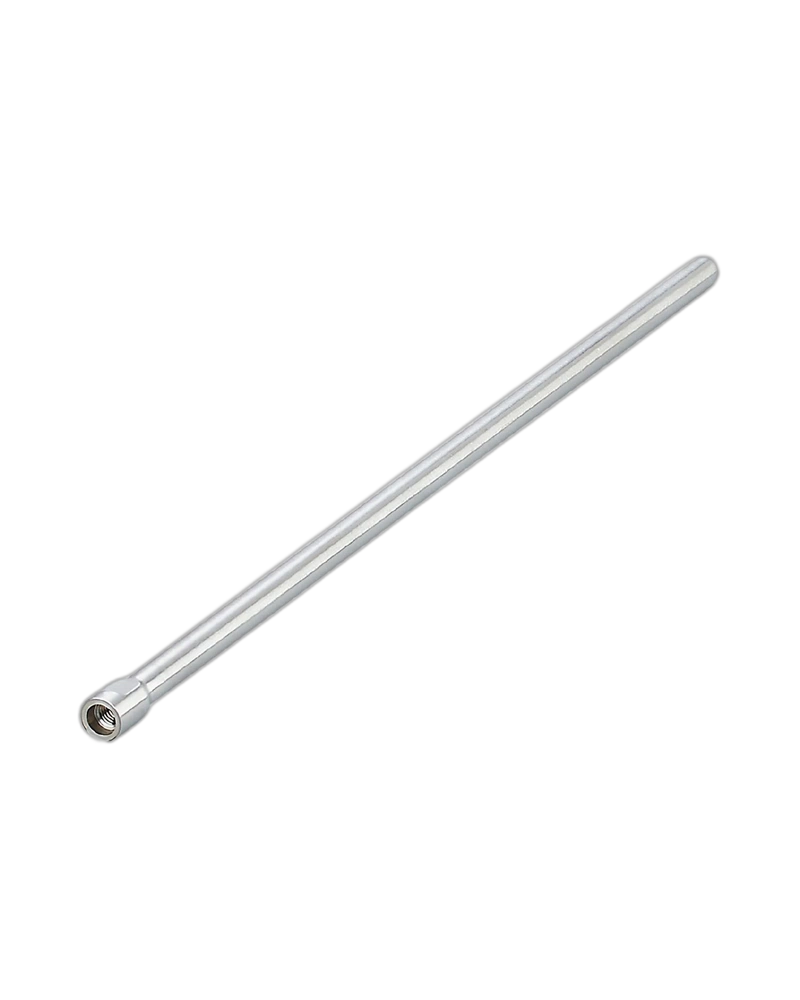

The IFM E43348 LR HYGIENE PROBE L1500 is a long-length hygienic probe designed for compatible IFM LR level sensors. With a 1500 mm probe length, it is suitable for deeper tanks and process vessels requiring extended level sensing. The probe is manufactured from 316L / 1.4404 stainless steel and features hygienic surface characteristics. It is designed for reliable detection of aqueous media in hygienic applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 1500 mm probe provides extended reach for deeper process vessels. It is designed for use with compatible LR guided wave radar level sensors. This makes it suitable for applications where shorter probe lengths cannot provide the required installation depth.
The probe is manufactured from stainless steel 316L / 1.4404. This provides a robust construction suitable for hygienic process environments. Its specified surface characteristics support suitable wetted-part applications.
The probe can be shortened according to the required container height. This allows the 1500 mm probe to be adapted for different vessel configurations. It provides installation flexibility without compromising the basic probe design.
The E43348 is designed for hygienic applications and has an H3 hygienic equipment classification according to DIN 11866. The wetted-part surface finish is specified at Ra < 0.8 µm / Rz 8 µm.
1500 mm probe length
Designed for IFM LR level sensors
Suitable for deep process vessels
Reliable aqueous media detection
316L / 1.4404 stainless steel
H3 hygienic equipment classification
Suitable for hygienic applications
Can be shortened for different vessel heights
Controlled wetted-part surface finish
Easy and secure mounting
Deep hygienic tanks
Food and beverage processing
Dairy processing plants
Liquid storage vessels
Sanitary process equipment
Large vessel level monitoring
| Specification | Details |
|---|---|
| Product Code | E43348 |
| Product Type | Probe for Level Sensors |
| Model | LR HYGIENE PROBE L1500 |
| Probe Length | 1500 mm |
| Application | Hygienic systems |
| Material | Stainless steel 316L / 1.4404 |
| Probe Surface | Ra < 0.4 µm / Rz 4 µm |
| Wetted Surface | Ra < 0.8 µm / Rz 8 µm |
| Tightening Torque | < 6.5 Nm |
| Hygienic Class | H3 according to DIN 11866 |
| Weight | 650 g |
| Pack Quantity | 1 piece |
