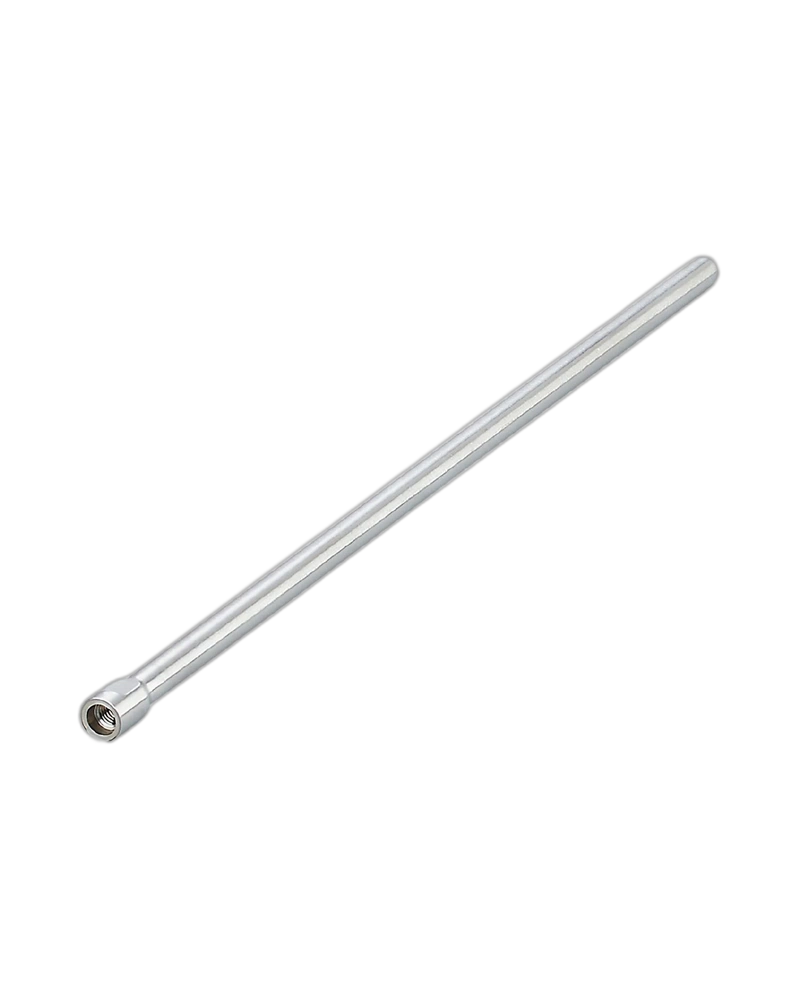

The IFM E43347 LR HYGIENE PROBE L700 is a 700 mm hygienic probe developed for compatible IFM LR level sensors. It provides reliable detection of aqueous media and is designed for hygienic process environments. The probe uses 316L / 1.4404 stainless steel and offers a controlled surface finish for wetted parts. Its 700 mm length makes it suitable for medium-to-deep process vessels.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 700 mm sensing probe provides additional reach for tanks and vessels requiring deeper level sensing. It is designed to operate with compatible LR guided wave radar level sensors. The length can be adapted when necessary to suit individual vessel dimensions.
The probe is constructed from stainless steel 316L / 1.4404. This provides a durable and hygienically suitable construction for compatible process applications. The controlled surface characteristics support hygienic equipment requirements.
The E43347 is designed for reliable detection of aqueous media. It provides an extended probe option for LR level sensing applications. This makes it suitable for liquid storage and process vessels where a longer probe is required.
The probe meets H3 hygienic equipment classification according to DIN 11866. The wetted surface is specified with Ra < 0.8 µm / Rz 8 µm. These characteristics support suitable hygienic process installations.
700 mm probe length
Designed for IFM LR level sensors
Suitable for guided wave radar level sensing
Reliable aqueous media detection
316L / 1.4404 stainless steel
H3 hygienic classification
Suitable for hygienic process environments
Can be shortened according to vessel height
Controlled wetted-part surface finish
Easy and secure mounting
Hygienic storage tanks
Food and beverage plants
Dairy processing systems
Liquid process vessels
Sanitary equipment
Aqueous liquid level monitoring
| Specification | Details |
|---|---|
| Product Code | E43347 |
| Product Type | Probe for Level Sensors |
| Model | LR HYGIENE PROBE L700 |
| Probe Length | 700 mm |
| Application | Hygienic systems |
| Material | Stainless steel 316L / 1.4404 |
| Probe Surface | Ra < 0.4 µm / Rz 4 µm |
| Wetted Surface | Ra < 0.8 µm / Rz 8 µm |
| Tightening Torque | < 6.5 Nm |
| Hygienic Class | H3 according to DIN 11866 |
| Weight | 305 g |
| Pack Quantity | 1 piece |
