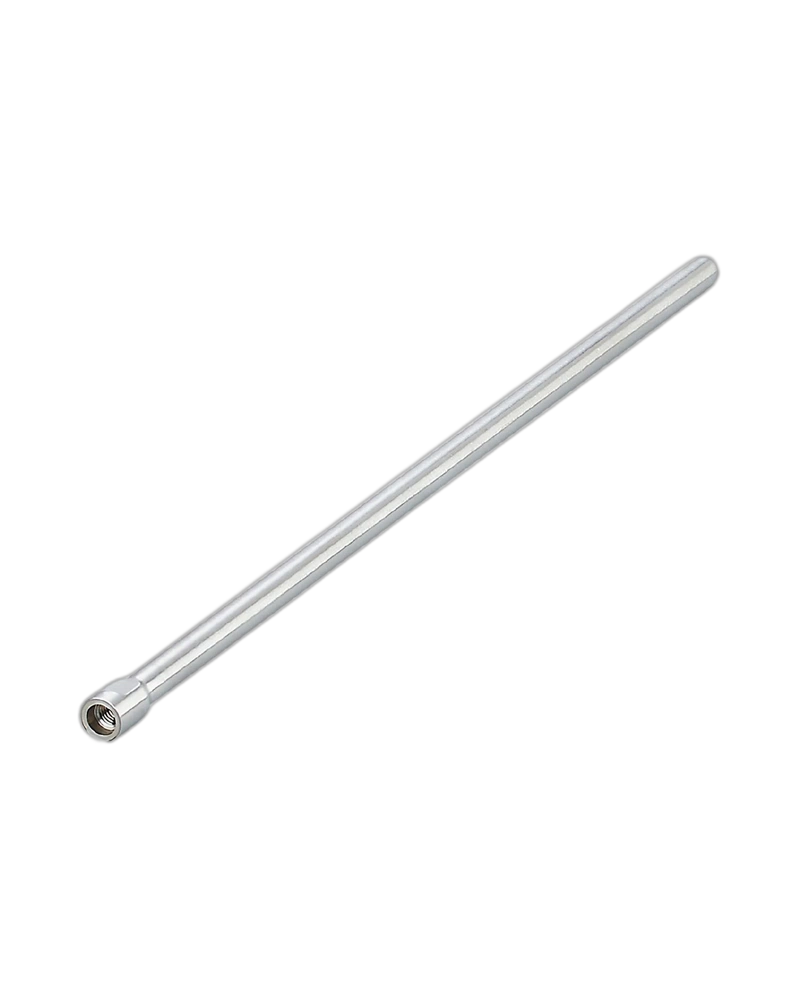

The IFM E43346 LR HYGIENE PROBE L300 is a 300 mm hygienic probe designed for IFM LR level sensors. It is suitable for reliable detection of aqueous media in hygienic process environments. The probe is constructed from 316L / 1.4404 stainless steel and features controlled surface characteristics. Its 300 mm length provides a practical option for medium-sized tanks and vessels.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 300 mm probe provides greater installation depth than compact probe versions while maintaining a manageable overall size. It is designed for compatible IFM LR guided wave radar level sensors. The probe supports reliable level detection in suitable hygienic systems.
The E43346 uses stainless steel 316L / 1.4404 for the probe construction. This material is appropriate for many hygienic process applications. The specified surface finish supports clean and controlled process installations.
The probe can be shortened to suit different container heights where required. This provides greater flexibility during equipment installation. The compact 300 mm length is suitable for a range of process vessel configurations.
The probe has a specified probe surface characteristic of Ra < 0.4 µm / Rz 4 µm. The wetted parts are specified at Ra < 0.8 µm / Rz 8 µm. It is classified as H3 according to DIN 11866.
300 mm probe length
Compatible with IFM LR level sensors
Reliable aqueous media detection
316L / 1.4404 stainless steel construction
Suitable for hygienic applications
H3 hygienic equipment classification
Adaptable probe length
Controlled surface finish
Compact and easy to install
Hygienic process tanks
Food and beverage equipment
Dairy processing
Liquid storage systems
Sanitary vessels
Aqueous media level monitoring
| Specification | Details |
|---|---|
| Product Code | E43346 |
| Product Type | Probe for Level Sensors |
| Model | LR HYGIENE PROBE L300 |
| Probe Length | 300 mm |
| Application | Hygienic systems |
| Material | Stainless steel 316L / 1.4404 |
| Probe Surface | Ra < 0.4 µm / Rz 4 µm |
| Wetted Surface | Ra < 0.8 µm / Rz 8 µm |
| Tightening Torque | < 6.5 Nm |
| Hygienic Class | H3 according to DIN 11866 |
| Weight | 131.5 g |
| Pack Quantity | 1 piece |
