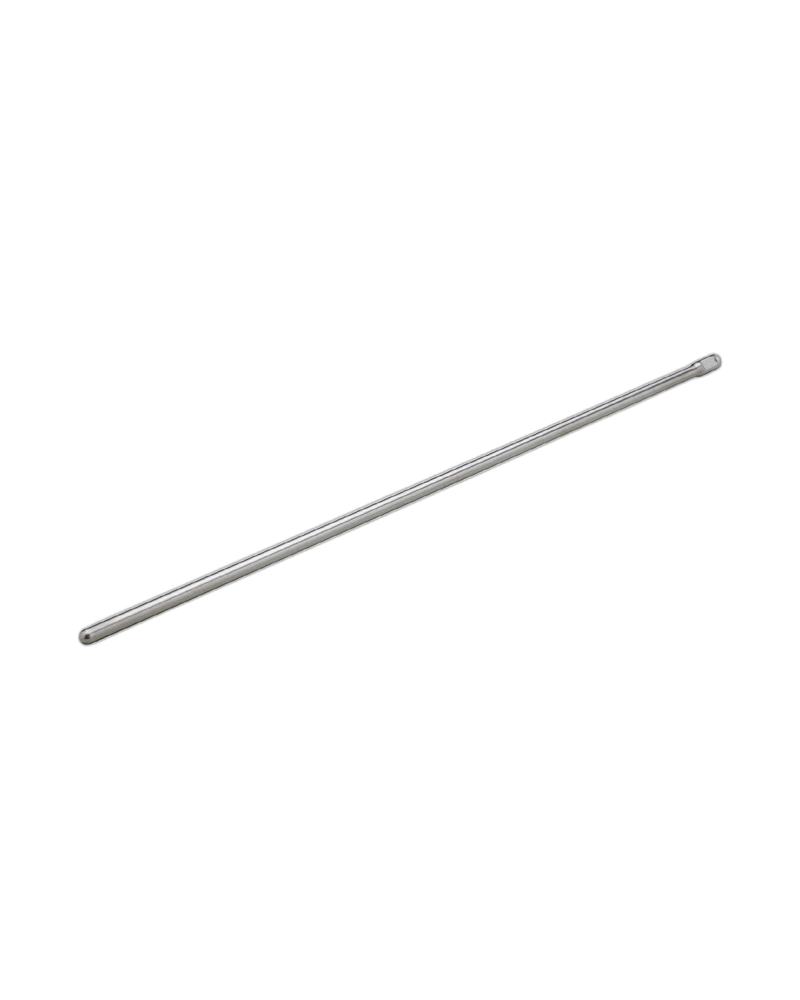

The IFM E43345 LR HYGIENE PROBE L150 is a compact 150 mm probe designed for compatible IFM LR level sensors. It provides reliable detection of aqueous media and is particularly suited for hygienic applications. The probe is manufactured from 316L stainless steel with a hygienically suitable surface finish. Its short length makes it suitable for compact tanks and process installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 150 mm probe length is suitable for installations where a shorter sensing probe is required. It can be used with compatible LR level sensors for reliable detection of aqueous media. Its compact size simplifies installation in smaller vessels.
The probe uses stainless steel 316L / 1.4404 construction. The surface characteristics are designed for hygienic process applications. The wetted-part finish is specified according to hygienic equipment requirements.
The probe can be adapted by shortening when required for different container heights. This provides installation flexibility across different vessel configurations. Its compact design also supports easier handling during installation.
The E43345 is classified as H3 according to DIN 11866. This makes it suitable for compatible hygienic process installations. The specified surface finish supports hygienic equipment requirements.
150 mm probe length
Designed for IFM LR level sensors
Suitable for aqueous media detection
316L / 1.4404 stainless steel
Hygienic construction
H3 classification according to DIN 11866
Compact installation design
Can be shortened to suit application requirements
Easy and secure mounting
Small hygienic tanks
Food processing equipment
Beverage processing
Dairy systems
Compact process vessels
Aqueous liquid level detection
| Specification | Details |
|---|---|
| Product Code | E43345 |
| Product Type | Probe for Level Sensors |
| Model | LR HYGIENE PROBE L150 |
| Probe Length | 150 mm |
| Application | Hygienic systems |
| Material | Stainless steel 316L / 1.4404 |
| Probe Surface | Ra < 0.4 µm / Rz 4 µm |
| Wetted Surface | Ra < 0.8 µm / Rz 8 µm |
| Tightening Torque | < 6.5 Nm |
| Hygienic Class | H3 according to DIN 11866 |
| Weight | 63.5 g |
| Pack Quantity | 1 piece |
