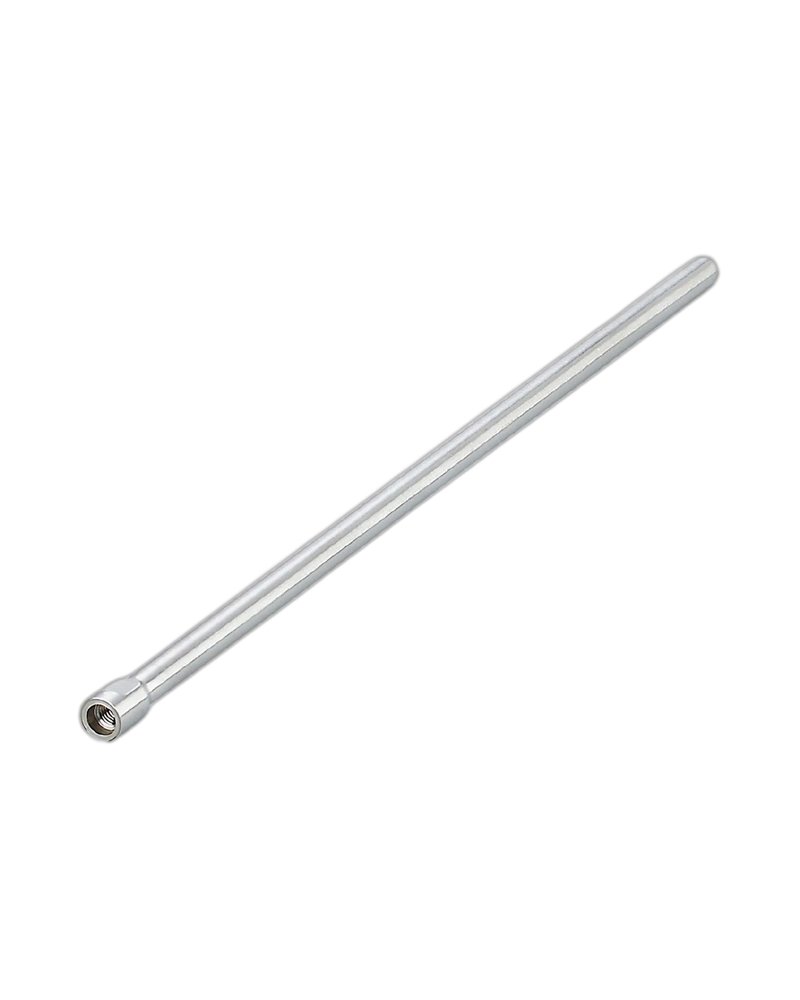

The IFM E43342 LR HYGIENE PROBE L2000 is a long-length hygienic probe designed for compatible IFM LR guided wave radar level sensors. With a 2000 mm probe length, it is suitable for deeper tanks and process vessels. The 316L stainless steel construction provides durability and hygienic compatibility. The probe can be shortened to suit specific container heights.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 2000 mm probe provides an extended sensing option for larger and deeper hygienic vessels. It is designed to support reliable detection of aqueous media with compatible LR level sensors. This makes it useful where shorter probe lengths are insufficient.
The probe is manufactured from 316L / 1.4404 stainless steel. This robust material is suitable for hygienic process installations. Its specified surface characteristics support applications where controlled surface finish is important.
The probe can be shortened according to the required container height. This provides greater flexibility during installation. It allows the same probe model to be adapted to different vessel dimensions.
The E43342 is designed for hygienic systems and has H3 hygienic equipment classification according to DIN 11866. Its wetted-part surface characteristics are specified for hygienic process applications.
2000 mm extended probe length
Designed for IFM LR level sensors
Suitable for guided wave radar technology
Reliable detection of aqueous media
316L / 1.4404 stainless steel
Suitable for hygienic applications
Adaptable by shortening the probe
H3 classification according to DIN 11866
Suitable for deep process vessels
Deep hygienic tanks
Food and beverage plants
Dairy processing systems
Liquid storage vessels
Sanitary process equipment
Large vessel level measurement
| Specification | Details |
|---|---|
| Product Code | E43342 |
| Product Type | Probe for Level Sensors |
| Model | LR HYGIENE PROBE L2000 |
| Probe Length | 2000 mm |
| Application | Hygienic systems |
| Material | Stainless steel 316L / 1.4404 |
| Probe Surface | Ra < 0.4 µm / Rz 4 µm |
| Wetted Surface | Ra < 0.8 µm / Rz 8 µm |
| Tightening Torque | < 6.5 Nm |
| Hygienic Class | H3 according to DIN 11866 |
| Weight | 865 g |
| Pack Quantity | 1 piece |
