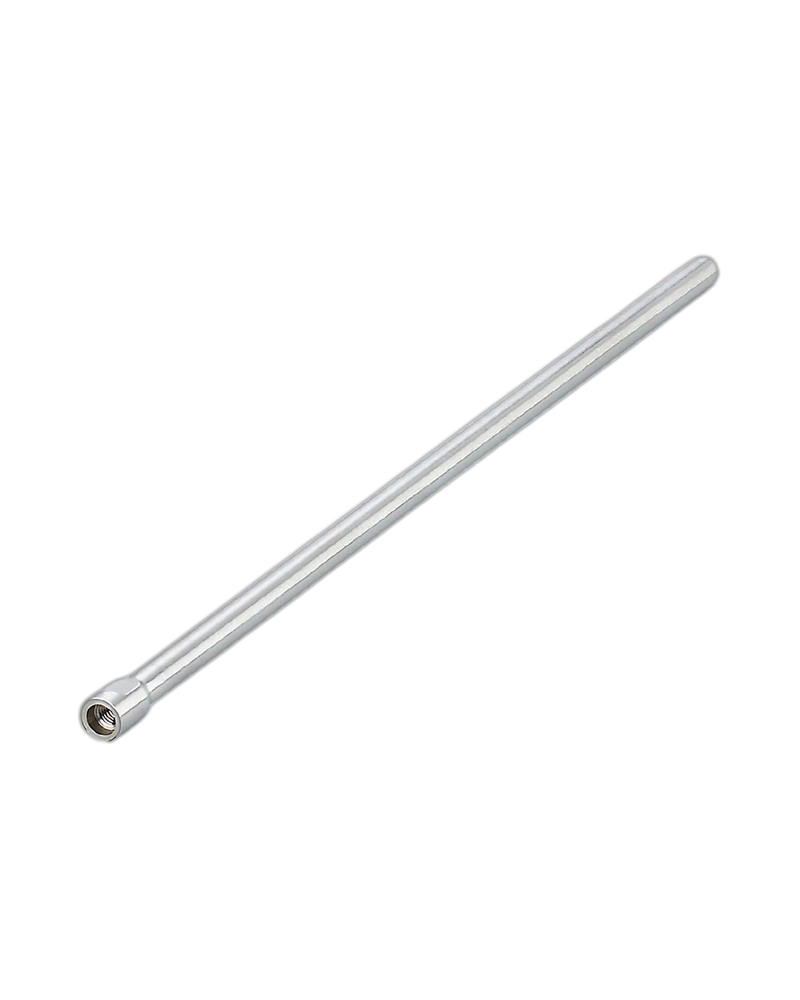

The IFM E43341 LR HYGIENE PROBE L1000 is a 1000 mm hygienic probe designed for IFM LR guided wave radar level sensors. It enables reliable detection of aqueous media in hygienic systems and can be shortened to accommodate different container heights. Manufactured from 316L stainless steel, the probe provides a durable and hygienically suitable solution for process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 1000 mm probe length makes the E43341 suitable for deeper tanks and vessels where a longer sensing probe is required. It works with compatible IFM LR level sensors to support reliable level measurement. The extended design provides flexibility for larger hygienic process vessels.
The probe is manufactured from 316L / 1.4404 stainless steel. Its controlled surface characteristics are designed for hygienic process environments. The wetted-part finish is specified for hygienic applications and supports clean process installations.
The probe can be shortened to suit different container heights. This makes the E43341 adaptable to different tank configurations. The feature helps installers achieve an appropriate probe length without requiring a completely different probe model.
The probe is specifically designed for hygienic applications and is classified as H3 according to DIN 11866. Its construction is suitable for installations where cleanable and hygienic process components are required.
1000 mm probe length
Designed for IFM LR level sensors
Suitable for guided wave radar applications
Reliable detection of aqueous media
316L stainless steel construction
Suitable for hygienic process applications
Can be shortened according to vessel height
H3 hygienic equipment classification
Precise and secure mounting
Hygienic storage tanks
Food processing equipment
Beverage processing systems
Liquid process vessels
Dairy applications
Aqueous media level monitoring
| Specification | Details |
|---|---|
| Product Code | E43341 |
| Product Type | Probe for Level Sensors |
| Model | LR HYGIENE PROBE L1000 |
| Probe Length | 1000 mm |
| Application | Hygienic systems |
| Material | Stainless steel 316L / 1.4404 |
| Probe Surface | Ra < 0.4 µm / Rz 4 µm |
| Wetted Surface | Ra < 0.8 µm / Rz 8 µm |
| Tightening Torque | < 6.5 Nm |
| Hygienic Class | H3 according to DIN 11866 |
| Weight | 435 g |
| Pack Quantity | 1 piece |
