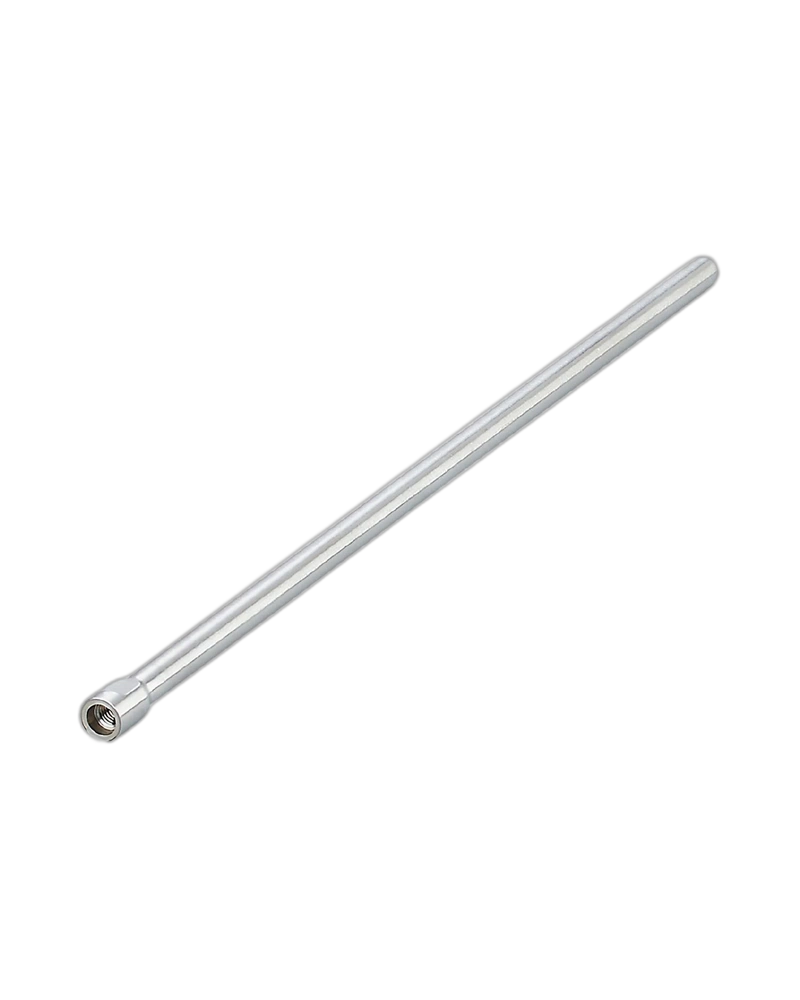

The IFM E43340 LR HYGIENE PROBE L500 is a hygienic probe designed for use with IFM LR level sensors featuring guided wave radar technology. It is suitable for reliable detection of aqueous media in hygienic systems. The 500 mm probe length can be adapted to different container heights by shortening the probe. Its stainless-steel construction and hygienic surface finish make it suitable for demanding process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43340 is designed as an accessory for LR level sensors and supports reliable level detection in hygienic systems. It is particularly suitable for applications involving aqueous media. The probe provides a practical extension for installations where a 500 mm sensing length is required.
The probe is manufactured from stainless steel 316L / 1.4404. This material is widely used for hygienic process applications because of its robust construction and suitable surface properties. The wetted surfaces have a controlled surface finish to support hygienic installation requirements.
The 500 mm probe can be shortened to suit different container heights. This provides flexibility when installing LR level sensors in tanks and process vessels. The adaptable design helps simplify installation across different equipment configurations.
The probe has a surface characteristic of Ra < 0.4 µm / Rz 4 µm, while the wetted-part surface characteristic is specified as Ra < 0.8 µm / Rz 8 µm. It is classified as hygienic equipment according to DIN 11866 H3.
500 mm probe length
Designed for IFM LR level sensors
Suitable for guided wave radar level sensing
Reliable detection of aqueous media
316L / 1.4404 stainless steel construction
Suitable for hygienic systems
Probe can be shortened for different vessel heights
H3 hygienic equipment classification
Easy and secure installation
Hygienic tank level monitoring
Food and beverage processing
Dairy processing systems
Liquid storage vessels
Sanitary process equipment
Aqueous media level detection
| Specification | Details |
|---|---|
| Product Code | E43340 |
| Product Type | Probe for Level Sensors |
| Model | LR HYGIENE PROBE L500 |
| Probe Length | 500 mm |
| Application | Hygienic systems |
| Sensor Compatibility | LR level sensors |
| Material | Stainless steel 316L / 1.4404 |
| Probe Surface | Ra < 0.4 µm / Rz 4 µm |
| Wetted Surface | Ra < 0.8 µm / Rz 8 µm |
| Tightening Torque | < 6.5 Nm |
| Hygienic Class | H3 according to DIN 11866 |
| Weight | 218 g |
| Pack Quantity | 1 piece |
