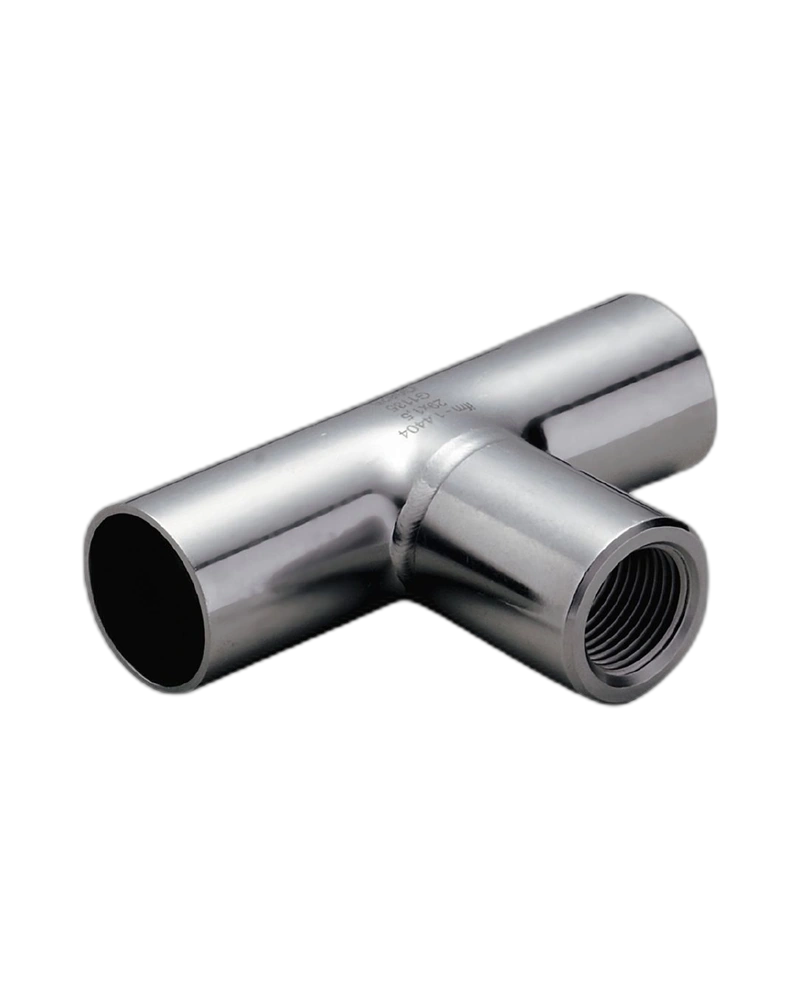

The E43316 is a stainless-steel T-piece designed for safe installation of process sensors in pipe systems. It provides a G 1/2 sensor connection with a DN25 process connection. Its robust construction is suitable for industrial and hygienic applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43316 T-piece is designed to integrate compatible process sensors into pipe installations. It provides a practical connection arrangement for industrial process measurement applications.
The T-piece features a G 1/2 sealing-cone sensor connection and a DN25 process connection. Its configuration supports secure sensor positioning within compatible pipe systems.
The T-piece is manufactured from stainless steel 316L / 1.4404. The wetted surface is designed with a smooth finish suitable for demanding process applications.
The E43316 supports process sensor installation in industrial and hygienic pipe systems. Its robust design helps provide reliable mechanical integration and process connectivity.
G 1/2 sensor connection
DN25 process connection
100 mm pipe length
316L stainless-steel construction
Smooth wetted surface
Designed for process sensors
Suitable for hygienic applications
Pressure rating up to 40 bar
Process sensor installation
Hygienic pipe systems
Industrial process equipment
Food and beverage equipment
Process automation
Tank and pipe installations
| Specification | Details |
|---|---|
| Product Code | E43316 |
| Product Type | T-piece |
| Sensor Connection | G 1/2 sealing cone |
| Process Connection | DN25 |
| Length | 100 mm |
| Material | Stainless steel 316L / 1.4404 |
| Pressure Rating | 40 bar / 4 MPa |
| Surface Finish | Ra < 0.4 µm / Rz 4 µm |
| Pack Quantity | 1 piece |
