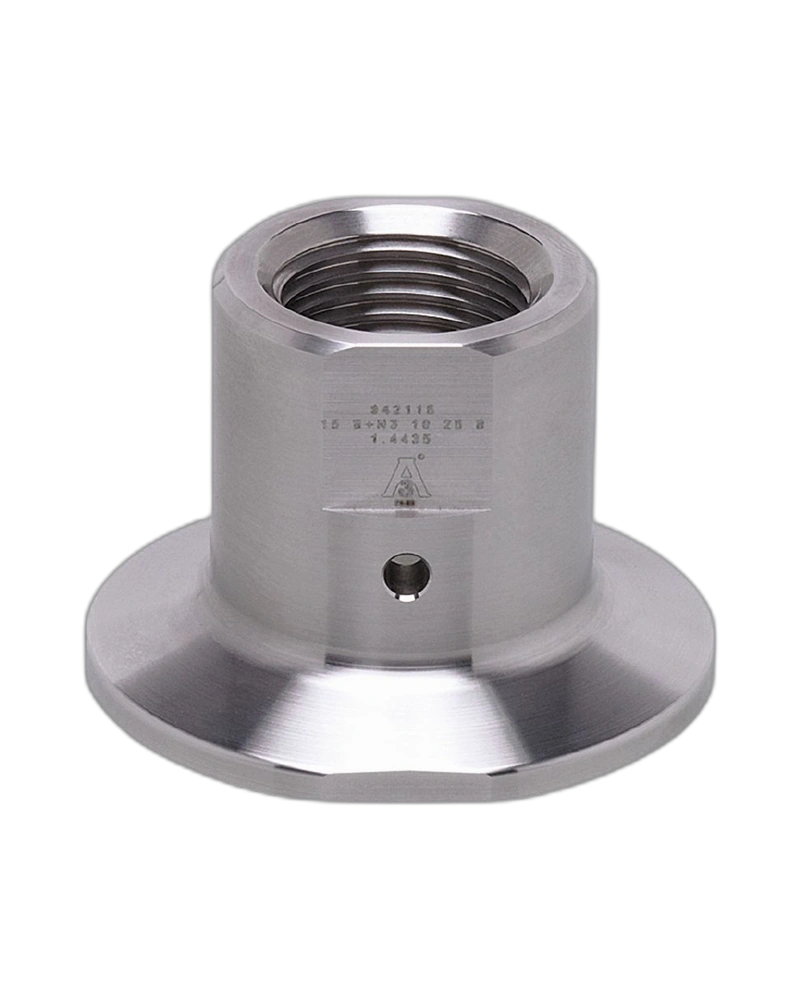

The IFM E43312 is a hygienic Tri-Clamp process adapter designed for connecting compatible G1/2 process sensors to 2-inch process connections. It uses stainless steel 316L construction and includes a leakage port for hygienic installation. The adapter is suitable for demanding process environments where reliable sensor integration is required. Its smooth surface finish supports hygienic applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43312 provides a reliable interface between compatible G1/2 process sensors and 2-inch Tri-Clamp process systems. It is designed for hygienic and industrial process installations.
The adapter features a G1/2 sealing cone and a Clamp DN50 (2") process connection according to DIN 32676 / ISO 2852. This provides a practical connection for compatible process piping.
The E43312 is manufactured from stainless steel 1.4435 / 316L. Its wetted surface has a specified finish of Ra < 0.4 µm / Rz 4 µm, supporting hygienic process applications.
The adapter has a 16 bar pressure rating and is designed for process applications requiring a hygienic 2-inch Tri-Clamp connection.
Tri-Clamp process adapter
ADAPT G1/2-CLAMP (2") 3A
G1/2 sealing cone
2-inch Clamp connection
DN50 process connection
Integrated leakage port
316L stainless-steel construction
16 bar pressure rating
DIN 32676 / ISO 2852 compatibility
Food processing
Dairy processing
Beverage production
Hygienic process systems
Process automation
Industrial measurement systems
| Specification | Details |
|---|---|
| Product Code | E43312 |
| Product Type | Tri-Clamp process adapter |
| Model | ADAPT G1/2-CLAMP (2") 3A |
| Material | Stainless steel 1.4435 / 316L |
| Sensor Connection | G1/2 sealing cone |
| Process Connection | Clamp DN50 (2") |
| Standard | DIN 32676 / ISO 2852 |
| Pressure Rating | 16 bar |
| Surface Finish | Ra < 0.4 µm / Rz 4 µm |
| Weight | 268 g |
| Pack Quantity | 1 pc. |
