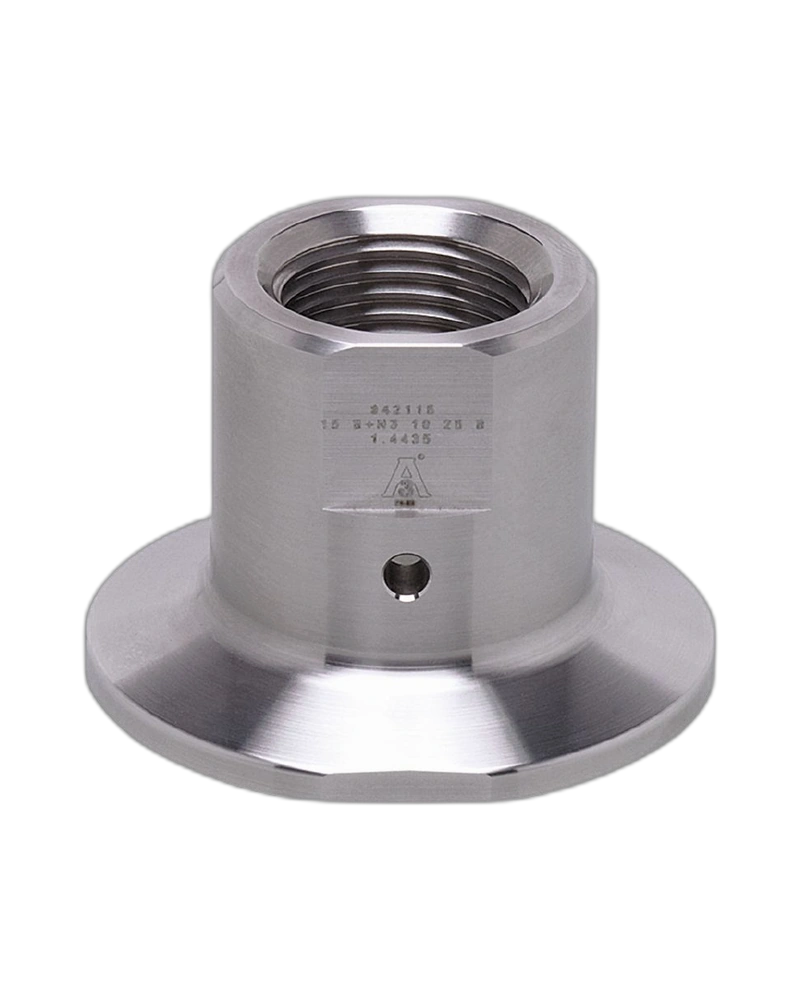

The IFM E43311 is a hygienic Tri-Clamp process adapter designed for connecting compatible G1/2 process sensors to process piping. It features a 1-inch Tri-Clamp connection with a leakage port and stainless-steel 316L construction. The adapter is designed for hygienic installations and demanding process environments. Its smooth wetted surfaces support clean process integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43311 provides a hygienic process connection between a compatible G1/2 sensor and a Tri-Clamp process system. It is designed for reliable integration in industrial process applications.
The adapter features a G1/2 sealing cone and a Clamp DN25...DN40 connection corresponding to 1...1.5 inch sizes according to DIN 32676 / ISO 2852.
The process adapter is manufactured from stainless steel 1.4435 / 316L and features a wetted surface finish of Ra < 0.4 µm / Rz 4 µm. Its leakage port supports hygienic process installation.
The E43311 provides a pressure rating of 25 bar and is suitable for hygienic process systems requiring a robust Tri-Clamp connection.
Tri-Clamp process adapter
ADAPT G1/2-CLAMP (1") 3A
G1/2 sealing cone
Clamp DN25...DN40 connection
Integrated leakage port
316L stainless-steel construction
25 bar pressure rating
DIN 32676 / ISO 2852 compatibility
Ra < 0.4 µm surface finish
Food processing equipment
Dairy processing
Beverage systems
Hygienic process automation
Process measurement
Industrial process control
| Specification | Details |
|---|---|
| Product Code | E43311 |
| Product Type | Tri-Clamp process adapter |
| Model | ADAPT G1/2-CLAMP (1") 3A |
| Material | Stainless steel 1.4435 / 316L |
| Sensor Connection | G1/2 sealing cone |
| Process Connection | Clamp DN25...DN40 |
| Standard | DIN 32676 / ISO 2852 |
| Pressure Rating | 25 bar |
| Surface Finish | Ra < 0.4 µm / Rz 4 µm |
| Weight | 203 g |
| Pack Quantity | 1 pc. |
