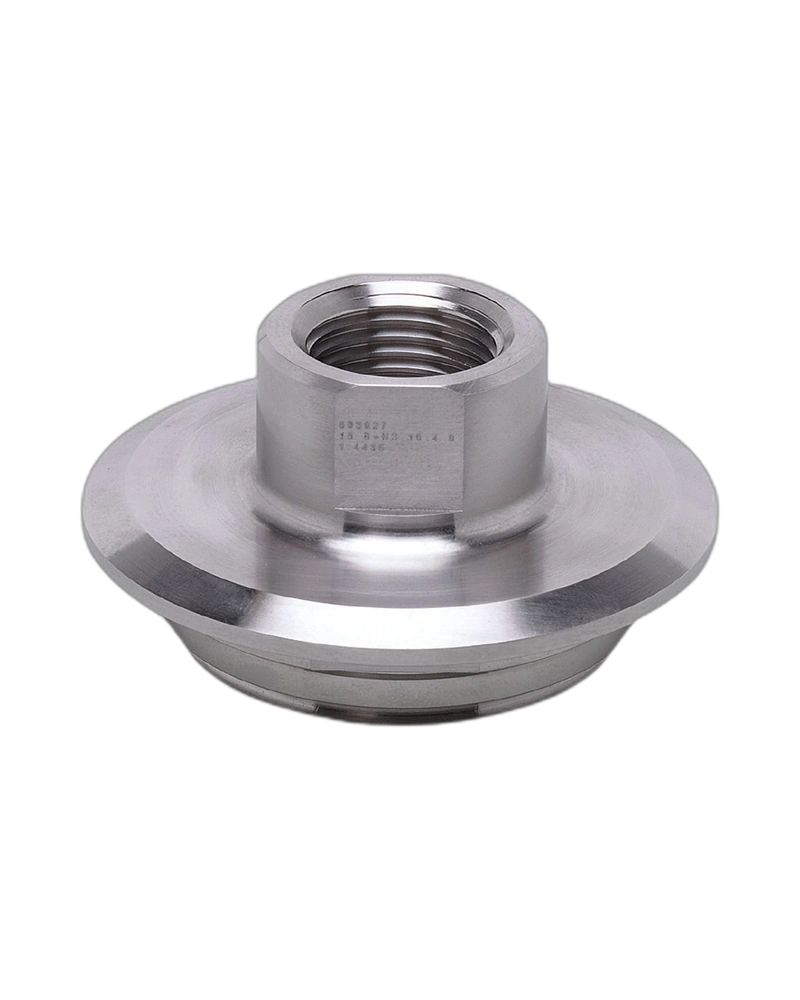

The IFM E43307 is a Varivent process adapter designed for hygienic process sensor installations. It provides a G1/2 sealing cone connection and a Varivent Form N process connection. The stainless-steel 316L construction supports demanding industrial and hygienic applications. Its 68 mm Varivent design provides reliable process integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43307 is a process adapter designed to connect compatible process sensors to Varivent process connections. It provides a practical interface for hygienic process measurement applications.
The adapter features a G1/2 sealing cone and Varivent Form N process connection. Its hygienic construction is suitable for applications where clean and reliable process connections are important.
The process adapter is manufactured from stainless steel 1.4435 / 316L. The wetted surface is specified with Ra < 0.4 µm / Rz 4 µm, supporting hygienic process applications.
The E43307 is rated for applications up to 25 bar and is suitable for Varivent connections from DN40 to DN150. Its robust construction supports reliable integration of compatible process sensors.
Varivent process adapter
ADAPT G1/2 VARIVENT D68 design
G1/2 sealing cone
Varivent Form N connection
DN40 to DN150 compatibility
68 mm process connection
316L stainless-steel construction
Ra < 0.4 µm surface finish
25 bar pressure rating
Hygienic process automation
Food and beverage equipment
Process measurement systems
Tank installations
Pipeline systems
Industrial process control
| Specification | Details |
|---|---|
| Product Code | E43307 |
| Product Type | Process adapter Varivent |
| Model | ADAPT G1/2 VARIVENT D68 |
| Material | Stainless steel 1.4435 / 316L |
| Sensor Connection | G1/2 sealing cone |
| Process Connection | Varivent Form N |
| Connection Size | DN40...DN150 |
| Diameter | 68 mm |
| Pressure Rating | 25 bar |
| Surface Finish | Ra < 0.4 µm / Rz 4 µm |
| Weight | 596 g |
| Pack Quantity | 1 pc. |
