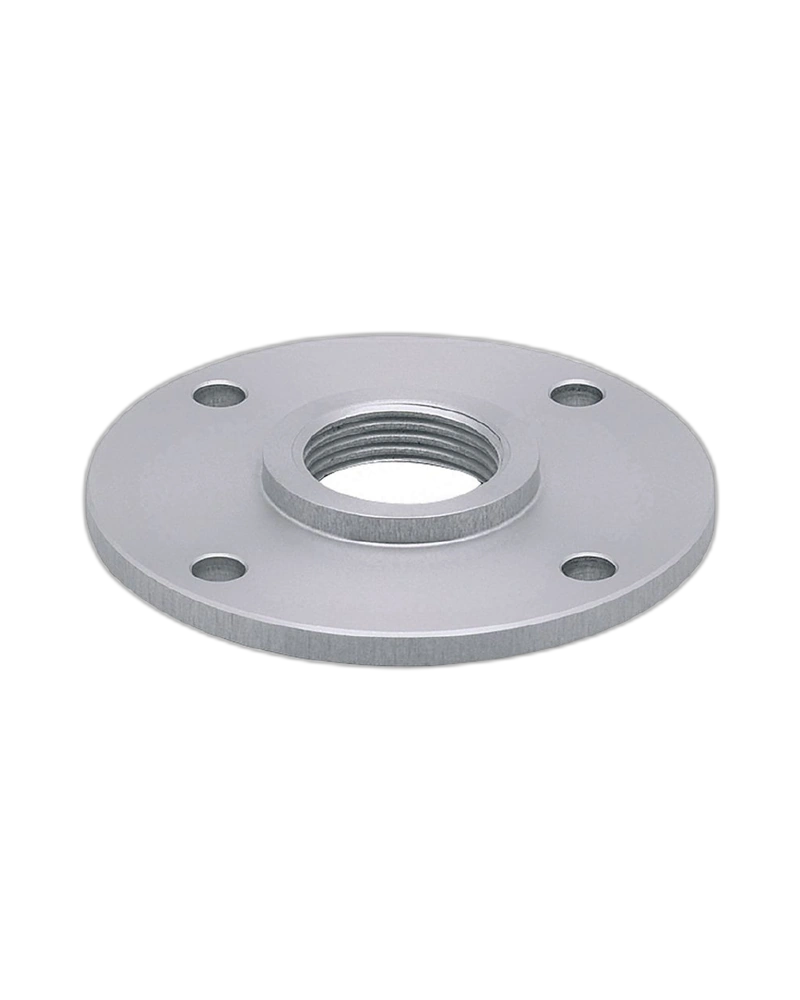

The IFM E43202 is a flange plate designed for mounting compatible LR level sensors in industrial process vessels. It features a G3/4 internal thread and an 80 mm flange diameter. The stainless-steel construction with NBR sealing provides a robust and practical mounting interface. It is suitable for level measurement applications requiring a compact flange configuration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43202 provides a secure mounting interface for compatible LR level sensors. Its flange design is intended for suitable industrial level measurement installations.
The flange plate features a G3/4 internal threaded connection with an 80 mm flange diameter. This provides a defined mechanical interface for compatible sensor installations.
The flange is manufactured from stainless steel 1.4305 / 303 and uses NBR sealing. This construction provides a durable mounting solution for appropriate industrial environments.
The E43202 is intended for LR level sensors and has a tank pressure range of -0.1 to 1.6 MPa depending on the seal used. The specified tightening torque is 6–9 Nm.
65–80 flange configuration
G3/4 internal thread
80 mm flange diameter
Designed for LR level sensors
Stainless steel 1.4305 / 303 flange
NBR sealing
Compact flange design
6–9 Nm tightening torque
Suitable for industrial vessels
Pack quantity of 1 piece
Level sensor mounting
Industrial tanks
Process vessels
Liquid level monitoring
Process automation
Industrial measurement systems
| Specification | Details |
|---|---|
| Product Code | E43202 |
| Product Type | Flange plate |
| Designation | FLANGE PLATE 65-80/G3/4 |
| Sensor Type | LR level sensors |
| Process Connection | G3/4 internal thread |
| Flange Diameter | 80 mm |
| Flange Material | Stainless steel 1.4305 / 303 |
| Seal Material | NBR |
| Tank Pressure | -0.1 to 1.6 MPa* |
| Tightening Torque | 6–9 Nm |
| Pack Quantity | 1 piece |
| Weight | Approx. 196.4 g |
