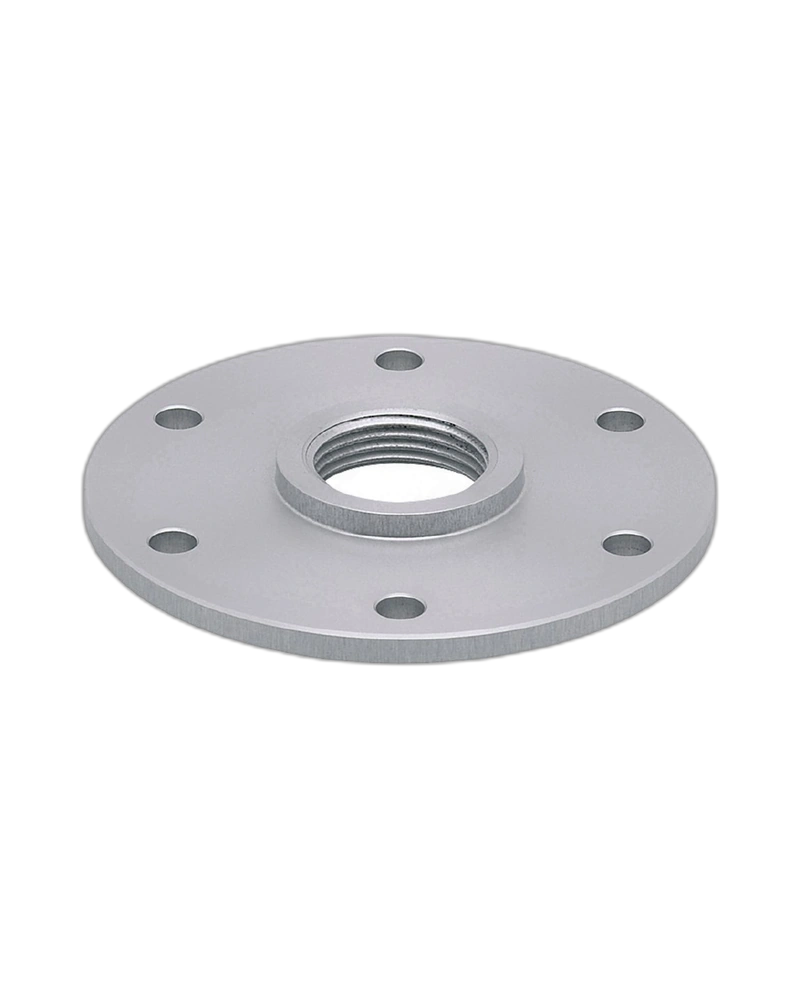

The IFM E43201 is a flange plate designed for compatible LR level sensors and process installations. It features a G3/4 internal thread and a 90 mm flange diameter according to DIN 24557. The stainless-steel flange and NBR sealing construction provide a robust mounting interface. It is suitable for level sensor installation in industrial vessels and tanks.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43201 provides a practical flange mounting solution for compatible LR level sensors. It is designed according to DIN 24557 for suitable level measurement installations.
The flange plate uses a G3/4 internal threaded connection and a 90 mm flange diameter. This configuration provides a defined interface for compatible level sensor installations.
The flange is manufactured from stainless steel 1.4305 / 303, with NBR sealing. The robust construction supports reliable installation in suitable industrial environments.
The E43201 is designed for LR level sensors and supports tank pressures from -0.1 to 1.6 MPa under the specified conditions. The recommended tightening torque is 6–9 Nm.
73–90 flange configuration
G3/4 internal thread
90 mm flange diameter
Designed for LR level sensors
Stainless steel flange
NBR sealing
According to DIN 24557
Tank pressure range -0.1 to 1.6 MPa
6–9 Nm tightening torque
Pack quantity of 1 piece
Level sensor installation
Industrial tanks
Process vessels
Liquid level measurement
Industrial automation
Process monitoring
| Specification | Details |
|---|---|
| Product Code | E43201 |
| Product Type | Flange plate |
| Designation | FLANGE PLATE 73-90/G3/4 |
| Sensor Type | LR level sensors |
| Process Connection | G3/4 internal thread |
| Flange Diameter | 90 mm |
| Standard | DIN 24557 |
| Flange Material | Stainless steel 1.4305 / 303 |
| Seal Material | NBR |
| Tank Pressure | -0.1 to 1.6 MPa |
| Ambient Temperature | 0 to 80 °C |
| Tightening Torque | 6–9 Nm |
| Pack Quantity | 1 piece |
