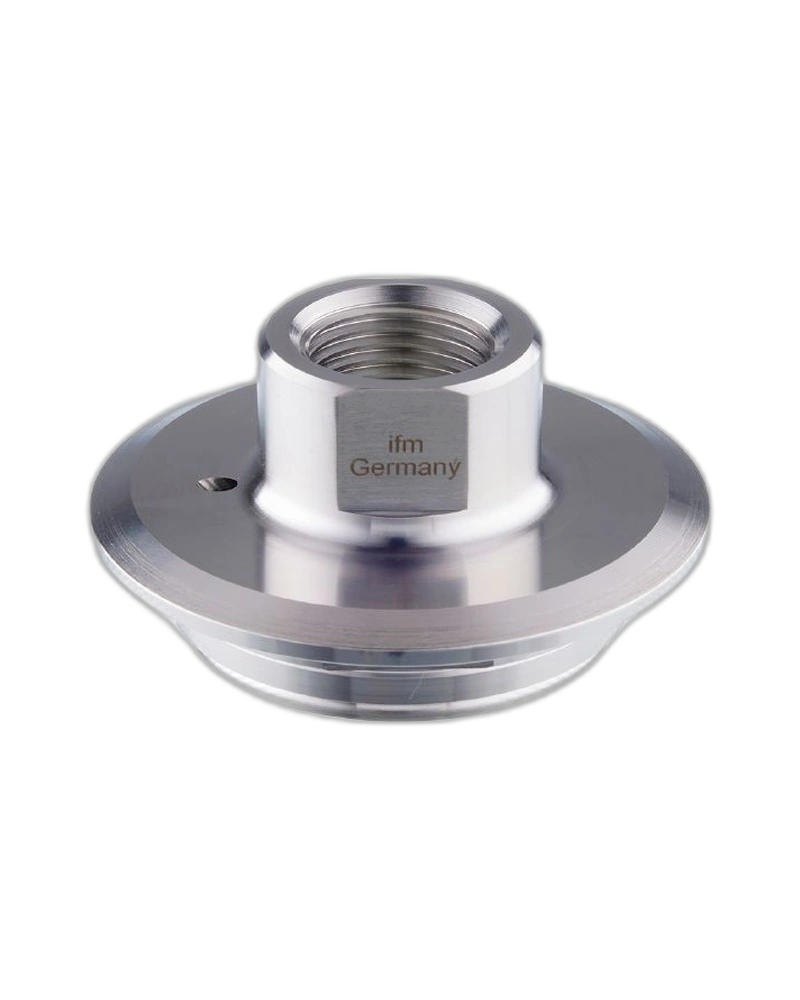

The E43035 is a hygienic Varivent process adapter designed for reliable integration of compatible sensors into process systems. It features a G1/2 sensor connection and a 68 mm Varivent interface. The 316L stainless-steel construction and smooth hygienic surface support demanding food, beverage and industrial process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43035 provides a hygienic process connection for compatible sensors used in industrial process equipment. Its Varivent interface supports secure integration into suitable process systems.
The adapter incorporates a Varivent Form N connection and a sealing edge for reliable process integration. An integrated leakage port supports hygienic installation requirements.
The adapter is manufactured from 316L stainless steel with a smooth surface finish. This construction supports demanding hygienic environments and process applications.
The E43035 is suitable for hygienic process systems requiring a larger 68 mm Varivent interface and reliable sensor-to-process connection.
G1/2 sensor connection
Varivent Form N process connection
68 mm adapter diameter
DN40 to DN150 interface range
Integrated leakage port
316L stainless-steel construction
Surface finish Ra < 0.4 µm
Surface finish Rz 4 µm
Pressure rating up to 25 bar
Pack quantity: 1 piece
Hygienic process systems
Food processing equipment
Beverage processing
Dairy applications
Sanitary production lines
Process automation
Industrial process instrumentation
| Specification | Details |
|---|---|
| Product Code | E43035 |
| Product Type | Process adapter Varivent |
| Design | ADAPT G1/2-VARIVENT D68 3A |
| Sensor Connection | G1/2 |
| Process Connection | Varivent Form N |
| Interface Range | DN40 to DN150 / 1.5" to 6" |
| Adapter Diameter | 68 mm |
| Pressure Rating | 25 bar |
| Material | Stainless steel 316L / 1.4435 |
| Surface Finish | Ra < 0.4 µm / Rz 4 µm |
| Leakage Port | Yes |
| Weight | 590.8 g |
| Pack Quantity | 1 piece |
