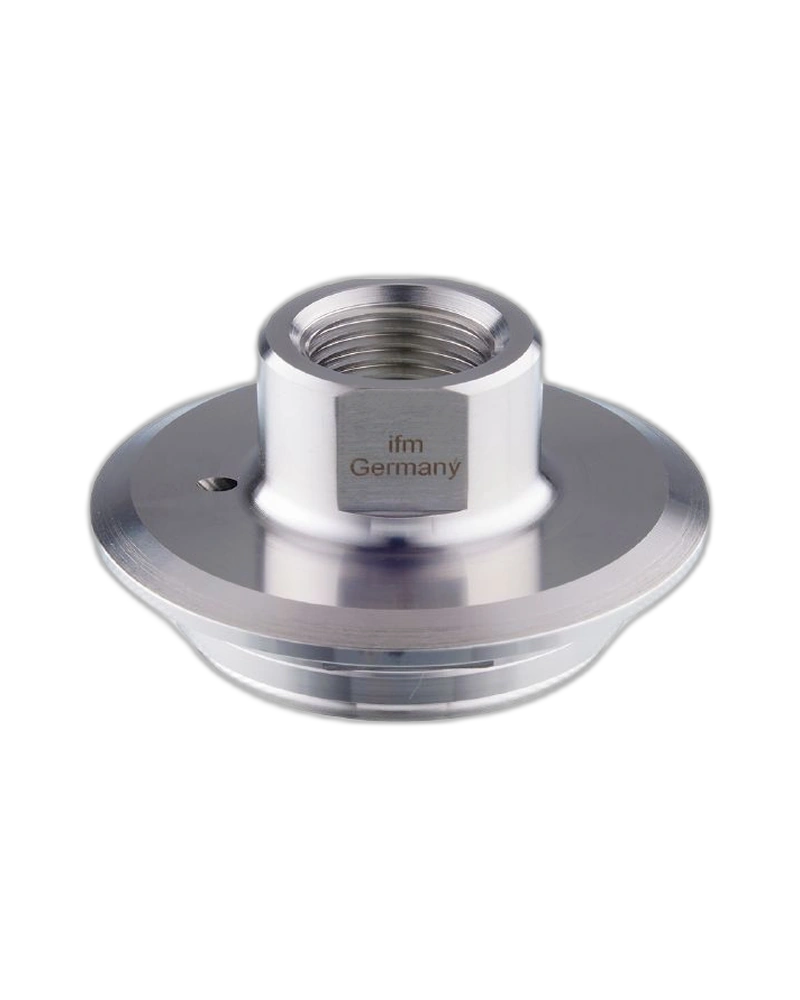

The E43034 is a Varivent process adapter designed for connecting compatible sensors to hygienic process systems. It features a G1/2 sensor connection and a Varivent Form F process interface with a 50 mm diameter. Its 316L stainless-steel construction and hygienic surface finish support demanding industrial process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43034 provides a hygienic process connection between compatible sensors and Varivent process systems. Its integrated leakage port helps support reliable process installation and monitoring.
The adapter features a Varivent Form F connection suitable for hygienic process installations. Its sealing-edge design supports reliable connection between the sensor and process adapter.
The process adapter is manufactured from 316L stainless steel with a surface finish of Ra < 0.4 µm / Rz 4 µm. This smooth surface supports hygienic process requirements.
The E43034 is suitable for hygienic process equipment where reliable sensor integration, cleanable connections and robust process compatibility are required.
G1/2 sensor connection
Varivent Form F process connection
50 mm adapter diameter
DN25 / 1" hygienic interface
Integrated leakage port
316L stainless-steel construction
Surface finish Ra < 0.4 µm
Surface finish Rz 4 µm
Pressure rating up to 25 bar
Pack quantity: 1 piece
Hygienic process systems
Food and beverage equipment
Dairy processing
Liquid processing plants
Process instrumentation
Industrial automation
Sanitary process equipment
| Specification | Details |
|---|---|
| Product Code | E43034 |
| Product Type | Process adapter Varivent |
| Design | ADAPT G1/2-VARIVENT D50 3A |
| Sensor Connection | G1/2 |
| Process Connection | Varivent Form F |
| Nominal Interface | DN25 / 1" |
| Adapter Diameter | 50 mm |
| Pressure Rating | 25 bar |
| Material | Stainless steel 316L / 1.4435 |
| Surface Finish | Ra < 0.4 µm / Rz 4 µm |
| Leakage Port | Yes |
| Weight | 390.2 g |
| Pack Quantity | 1 piece |
