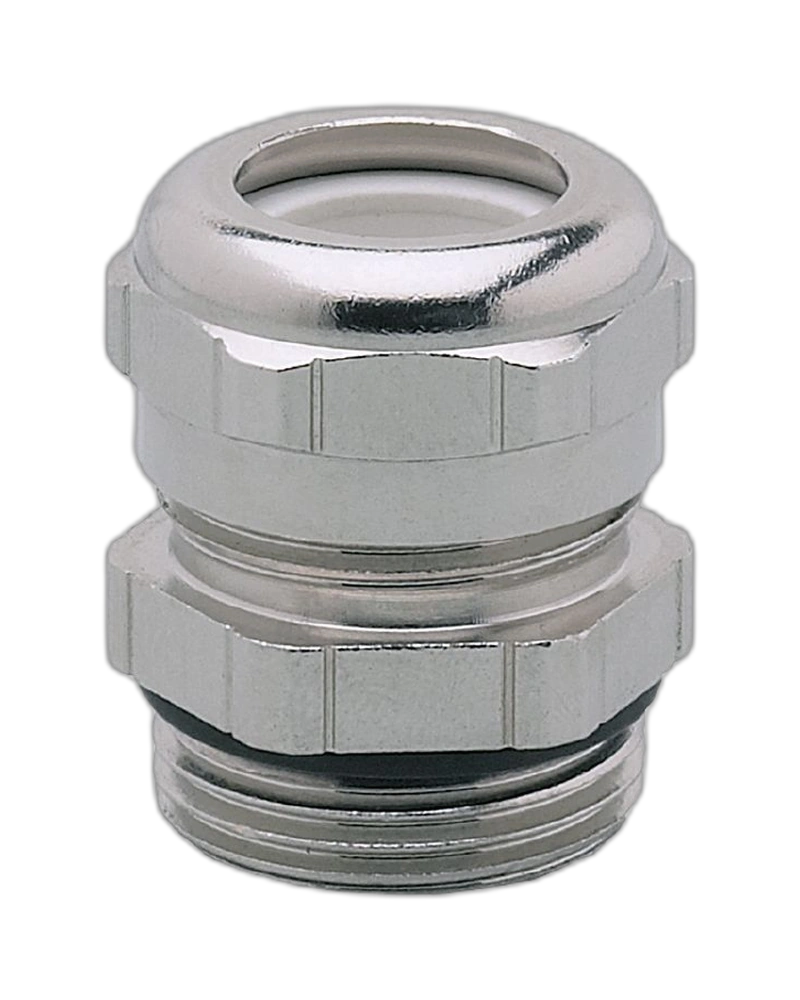

The E43019 is a compact clamp fitting designed for installing compatible LI capacitive level sensors. It provides a 16 mm sensor connection and a G3/4 external process connection. The nickel-plated brass construction with TPE and FKM sealing provides a practical mounting solution for industrial level-sensing applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43019 is designed specifically for compatible capacitive level sensors in container and process applications. Its compact fitting design simplifies sensor installation.
The 16 mm sensor connection provides a suitable interface for compatible LI level sensors. The clamp mechanism supports secure sensor positioning during installation.
The fitting uses nickel-plated brass with TPE and FKM sealing. This combination provides a compact and practical mechanical connection for process installations.
The E43019 is suitable for capacitive level sensing in containers and industrial process equipment where a G3/4 process connection is required.
G3/4 external process connection
16 mm sensor connection
Designed for LI capacitive level sensors
Nickel-plated brass construction
TPE material
FKM sealing
Compact fitting design
Pressure rating up to 0.5 bar
Ambient temperature 0 to 60 °C
Pack quantity: 1 piece
Capacitive level sensing
Liquid level monitoring
Industrial containers
Process tanks
Automation systems
Process equipment
Factory installations
| Specification | Details |
|---|---|
| Product Code | E43019 |
| Product Type | Clamp fitting for process sensors |
| Design | Fitting LI G3/4/D16 |
| Sensor Connection | Ø16 mm |
| Process Connection | G3/4 external thread |
| Pressure Rating | 0.5 bar |
| Ambient Temperature | 0 to 60 °C |
| Dimensions | Ø31 × 36 mm |
| Tightening Torque | 10 Nm |
| Weight | 67.8 g |
| Materials | Nickel-plated brass, TPE, FKM |
| Pack Quantity | 1 piece |
