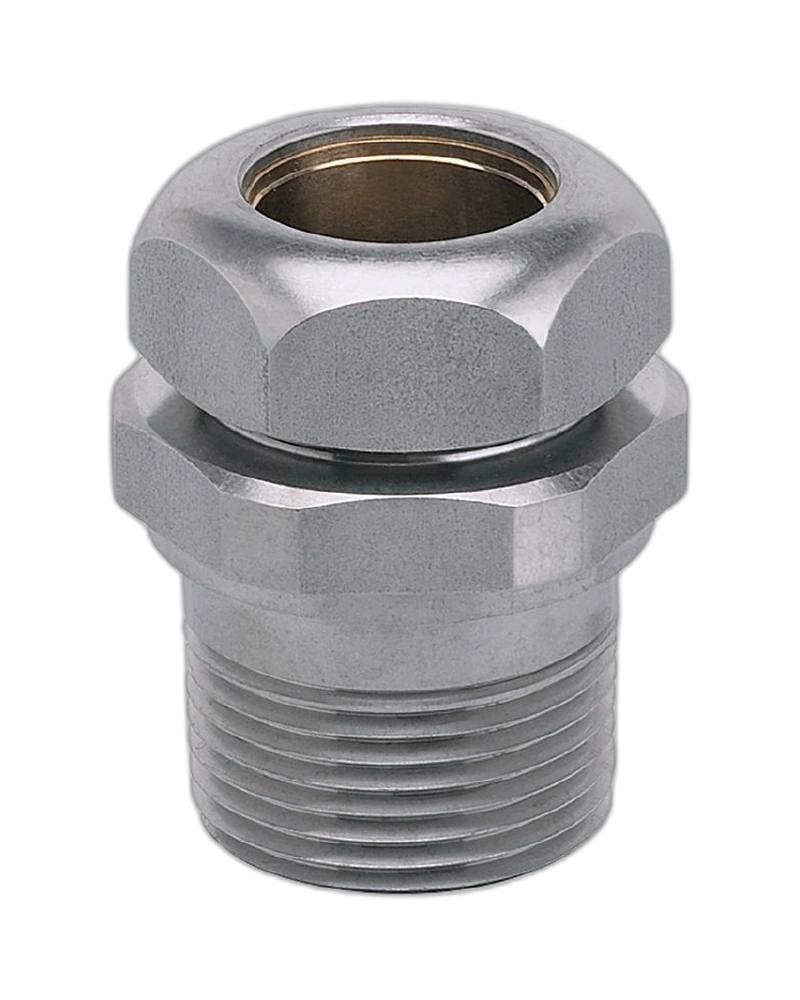

The E43015 is a clamp fitting designed for mounting compatible capacitive level sensors and climatic tubes in containers. It combines a 22 mm sensor connection with a 1" NPT external process connection. The adjustable mounting arrangement supports secure sensor positioning and reliable industrial installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43015 provides a convenient mounting solution for compatible level-sensing components. Its clamp design allows the sensor to be securely positioned inside process containers.
The 22 mm sensor connection supports compatible devices and allows adjustment of the required immersion depth. This provides installation flexibility for different process vessels.
The adapter uses robust materials including stainless steel, brass and NBR sealing components. Its construction is intended for dependable industrial service.
The E43015 is suitable for capacitive level monitoring in containers, tanks and process equipment where a 1" NPT process connection is required.
1" NPT external process connection
22 mm sensor connection
Clamp fitting construction
Adjustable sensor immersion depth
Stainless-steel components
Brass construction elements
NBR sealing
Pressure rating up to 0.5 bar
Industrial mounting design
Pack quantity: 1 piece
Capacitive level measurement
Industrial tanks
Process containers
Liquid monitoring
Process automation
Factory equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | E43015 |
| Product Type | Clamp fitting for process sensors |
| Design | Mounting adapter NPT1/D22 |
| Sensor Connection | Ø22 mm |
| Process Connection | 1" NPT |
| Pressure Rating | 0.5 bar |
| Ambient Temperature | 0 to 80 °C |
| Tightening Torque | 6–8 Nm |
| Weight | 258.5 g |
| Materials | Stainless steel, NBR, brass |
| Pack Quantity | 1 piece |
