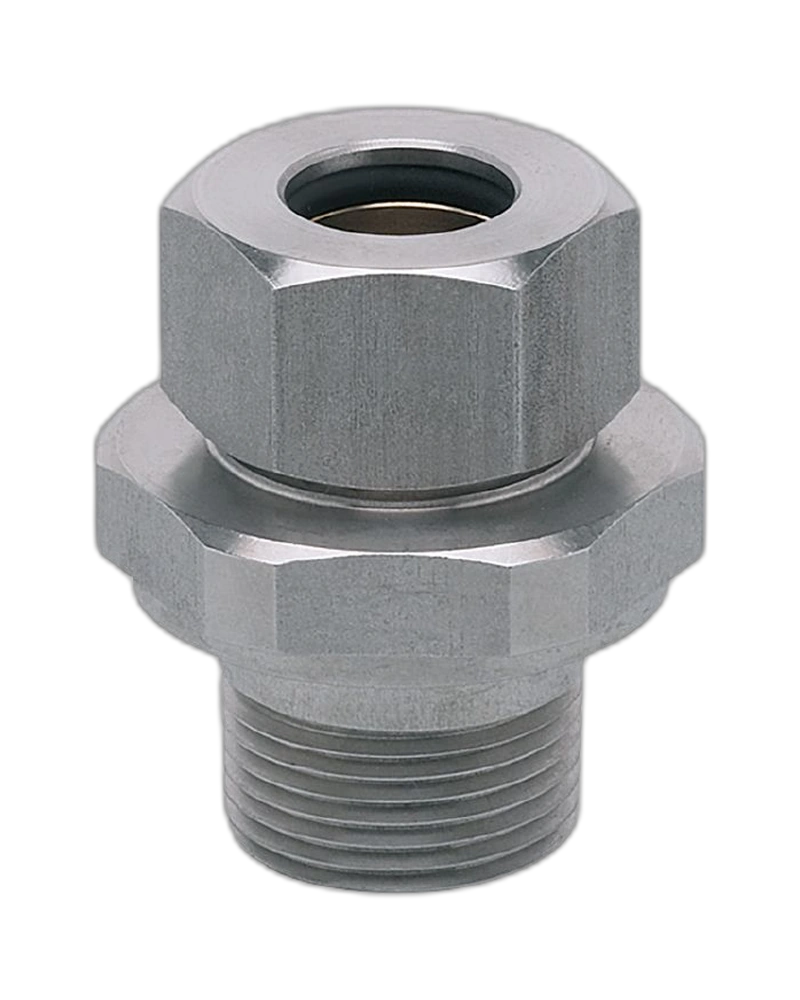

The E43012 is a mounting adapter designed for installing compatible capacitive level sensors in containers. It combines a 16 mm sensor connection with a 3/4" NPT external process connection. The clamp fitting allows convenient sensor positioning and provides a secure mounting solution for industrial level-monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43012 provides a compact and practical interface between compatible capacitive level sensors and process containers. Its clamp design simplifies sensor installation and positioning.
The adapter is designed for 16 mm sensor connections and allows the required immersion depth to be conveniently adjusted. This supports flexible installation in different container configurations.
The fitting uses stainless-steel components with a brass spacer and FKM clamping ring. The construction is intended for reliable use in industrial environments.
The E43012 is suitable for capacitive level sensors used in tanks, containers and industrial process equipment where a 3/4" NPT connection is required.
3/4" NPT external process connection
16 mm sensor connection
Designed for capacitive level sensors
Clamp fitting construction
Adjustable sensor immersion depth
Stainless-steel flange and lock nut
Brass spacer
FKM clamping ring
Pressure rating up to 0.5 bar
Pack quantity: 1 piece
Capacitive level measurement
Industrial containers
Storage tanks
Process automation
Liquid level monitoring
Industrial equipment
Factory automation
| Specification | Details |
|---|---|
| Product Code | E43012 |
| Product Type | Clamp fitting for process sensors |
| Design | Mounting adapter NPT3/4/D16 |
| Sensor Connection | Ø16 mm |
| Process Connection | 3/4" NPT external thread |
| Pressure Rating | 0.5 bar |
| Ambient Temperature | 0 to 80 °C |
| Dimensions | Ø39 × 48 mm |
| Tightening Torque | 6–9 Nm |
| Weight | 259 g |
| Materials | Stainless steel, brass, FKM |
| Pack Quantity | 1 piece |
