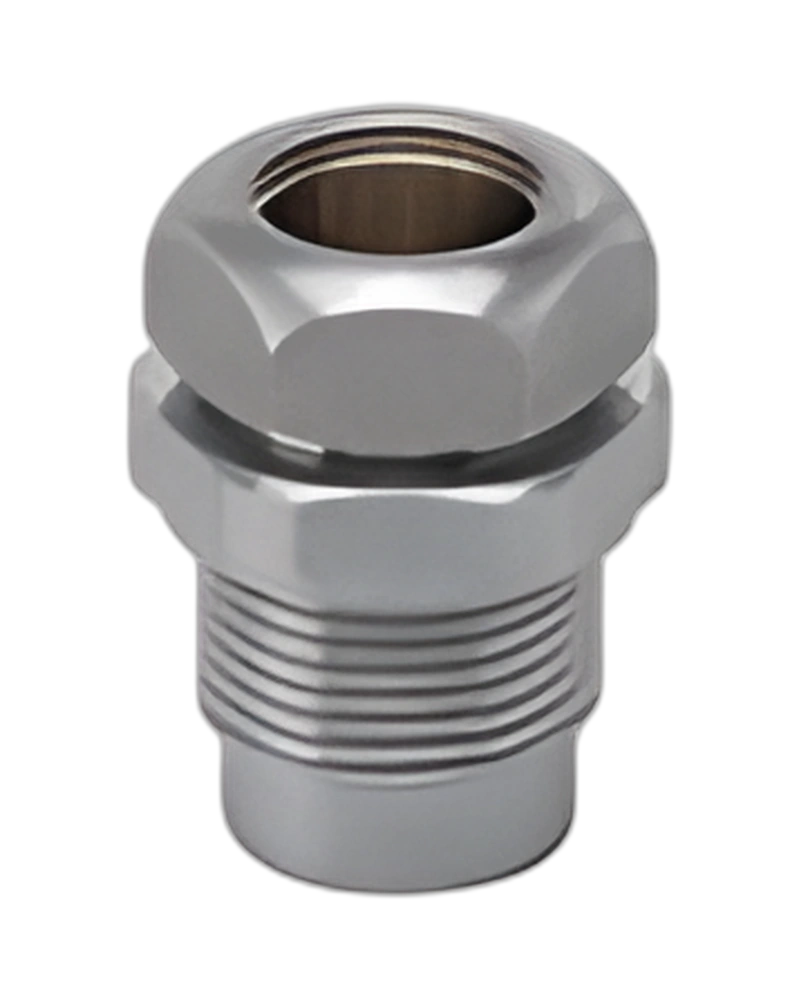

The E43009 is a clamp fitting designed for installing compatible capacitive level sensors in containers. It provides quick, secure and adjustable sensor mounting with a G1 external process connection. Its stainless-steel construction makes it suitable for demanding industrial environments and reliable level-sensing installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43009 provides a practical mounting solution for compatible capacitive level sensors and climatic tubes. Its clamp design allows the sensor immersion depth to be adjusted according to the installation requirement.
The fitting supports easy and secure sensor installation while allowing convenient adjustment of the required immersion depth. This helps achieve accurate positioning inside containers and process vessels.
The mounting adapter uses stainless steel together with sealing materials and brass components for dependable mechanical installation. Its robust construction is suitable for industrial environments.
The E43009 is suitable for level-sensing applications in containers, tanks and industrial process equipment where reliable sensor positioning and secure mounting are required.
G1 external process connection
22 mm sensor connection
Designed for compatible capacitive level sensors
Adjustable immersion depth
Stainless-steel construction
Clamp fitting design
Pressure rating up to 0.5 bar
Ambient temperature 0 to 80 °C
Compact industrial construction
Pack quantity: 1 piece
Capacitive level sensing
Industrial tanks
Process containers
Liquid level monitoring
Industrial automation
Process equipment
Machine and plant installations
| Specification | Details |
|---|---|
| Product Code | E43009 |
| Product Type | Clamp fitting for process sensors |
| Design | Mounting adapter G1/D22 |
| Sensor Connection | Ø22 mm |
| Process Connection | G1 external thread |
| Pressure Rating | 0.5 bar |
| Ambient Temperature | 0 to 80 °C |
| Dimensions | Ø39 × 55 mm |
| Tightening Torque | 6–8 Nm |
| Weight | 256 g |
| Materials | Stainless steel, NBR, Tesnit, brass |
| Pack Quantity | 1 piece |
