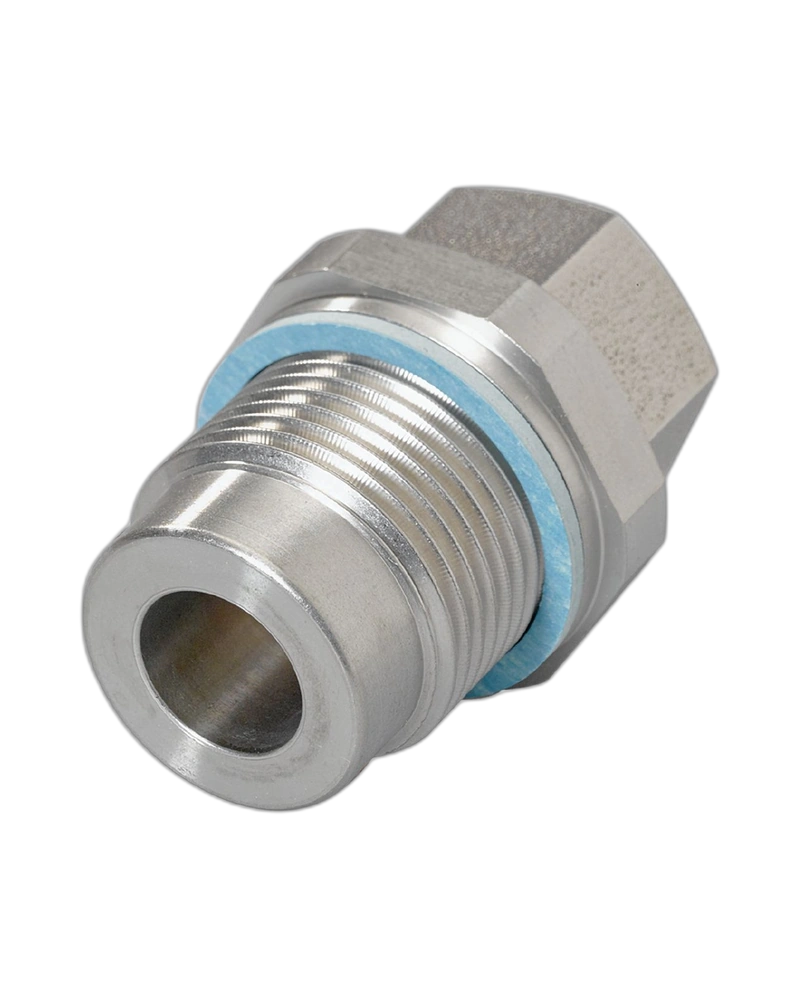

The E43004 is a mounting adapter for compatible IFM capacitive level sensors, providing a G1 external threaded process connection. Its stainless steel construction offers a durable mounting interface for industrial process applications. The adapter combines a practical clamp fitting with suitable sealing components to support secure sensor installation in level measurement and process automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43004 is designed for mounting compatible capacitive level sensors within industrial process equipment. Its G1 process connection provides a practical installation interface.
The adapter features a G1 external thread and Ø16 mm sensor connection, supporting integration with compatible level sensor installations.
The stainless steel flange and lock nut provide mechanical durability, while the brass spacer and FKM clamping ring support reliable sensor positioning.
The E43004 is suitable for industrial level measurement and process automation applications requiring a G1 threaded mounting connection for compatible sensors.
Mounting adapter for process sensors
G1 external thread
Ø16 mm sensor connection
Compatible with capacitive level sensors
Stainless steel construction
Brass spacer
FKM clamping ring
Pressure rating 0.05 MPa
Ambient temperature 0 to 80°C
Pack quantity of 1 piece
Industrial level measurement
Process automation
Tank monitoring
Liquid level sensing
Capacitive sensor installation
Process control systems
| Specification | Details |
|---|---|
| Product Code | E43004 |
| Product Type | Mounting adapter |
| Compatible Sensors | LK, LI, LT, LL |
| Sensor Connection | Ø16 mm |
| Process Connection | G1 external thread |
| Material | Stainless steel |
| Spacer | Brass |
| Clamping Ring | FKM |
| Seal | Tesnit |
| Pressure Rating | 0.05 MPa / 0.5 bar |
| Ambient Temperature | 0 to 80°C |
| Dimensions | Ø39 × 57 mm |
| Weight | 335 g |
| Pack Quantity | 1 pcs. |
