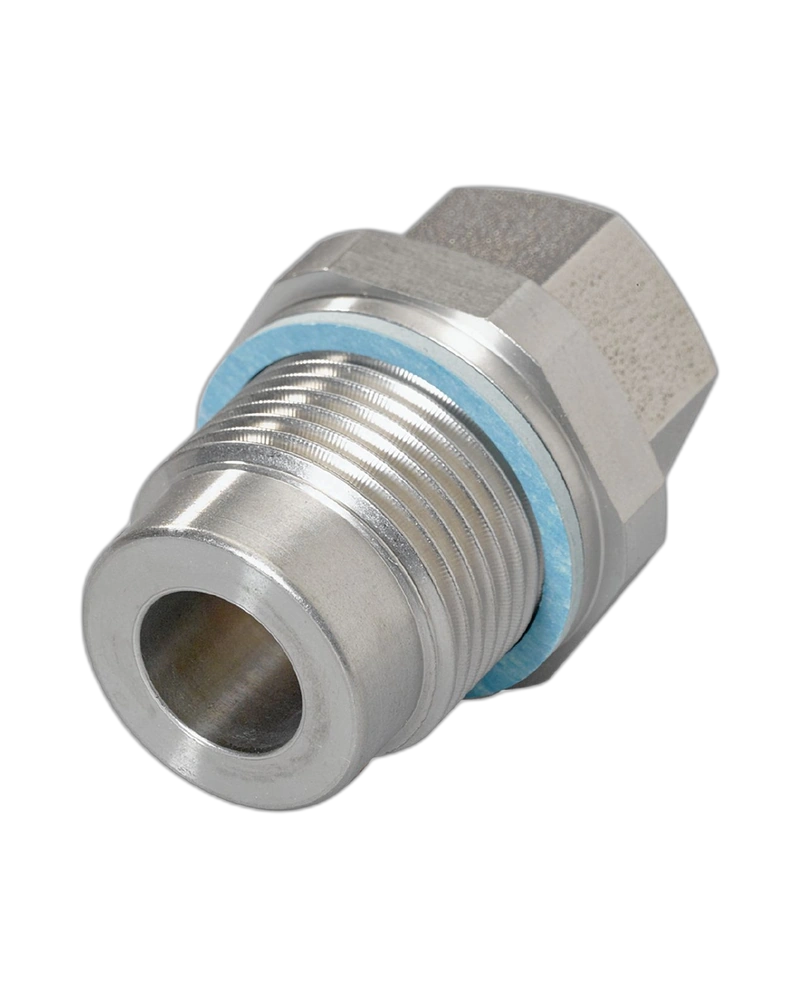

The E43003 is a mounting adapter designed for compatible IFM capacitive level sensors in industrial process installations. Its G3/4 external thread provides a practical process connection, while the clamp fitting supports secure sensor mounting. The stainless steel construction and FKM sealing components make it suitable for dependable installation in process automation and level measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43003 provides a practical mounting interface for compatible IFM capacitive level sensors. It is designed for process installations requiring a G3/4 connection.
The adapter features a G3/4 external thread and a Ø16 mm sensor connection, allowing compatible sensor equipment to be integrated into suitable process installations.
The stainless steel flange and knurled nut provide robust mechanical construction, while the brass spacer and FKM clamping ring support the mounting arrangement.
The E43003 is suitable for compatible LK, LI, LT and LL capacitive level sensors and industrial process applications requiring reliable sensor mounting.
Mounting adapter for process sensors
G3/4 external thread
Ø16 mm sensor connection
Compatible with capacitive level sensors
Stainless steel construction
Brass spacer
FKM clamping ring
Pressure rating 0.05 MPa
Ambient temperature 0 to 80°C
Pack quantity of 1 piece
Level measurement
Process automation
Tank monitoring
Industrial liquid detection
Capacitive sensor installation
Process control equipment
| Specification | Details |
|---|---|
| Product Code | E43003 |
| Product Type | Mounting adapter |
| Compatible Sensors | LK, LI, LT, LL |
| Sensor Connection | Ø16 mm |
| Process Connection | G3/4 external thread |
| Material | Stainless steel |
| Spacer | Brass |
| Clamping Ring | FKM |
| Seal | Tesnit |
| Pressure Rating | 0.05 MPa / 0.5 bar |
| Ambient Temperature | 0 to 80°C |
| Dimensions | Ø39 × 44 mm |
| Weight | 250 g |
| Pack Quantity | 1 pcs. |
