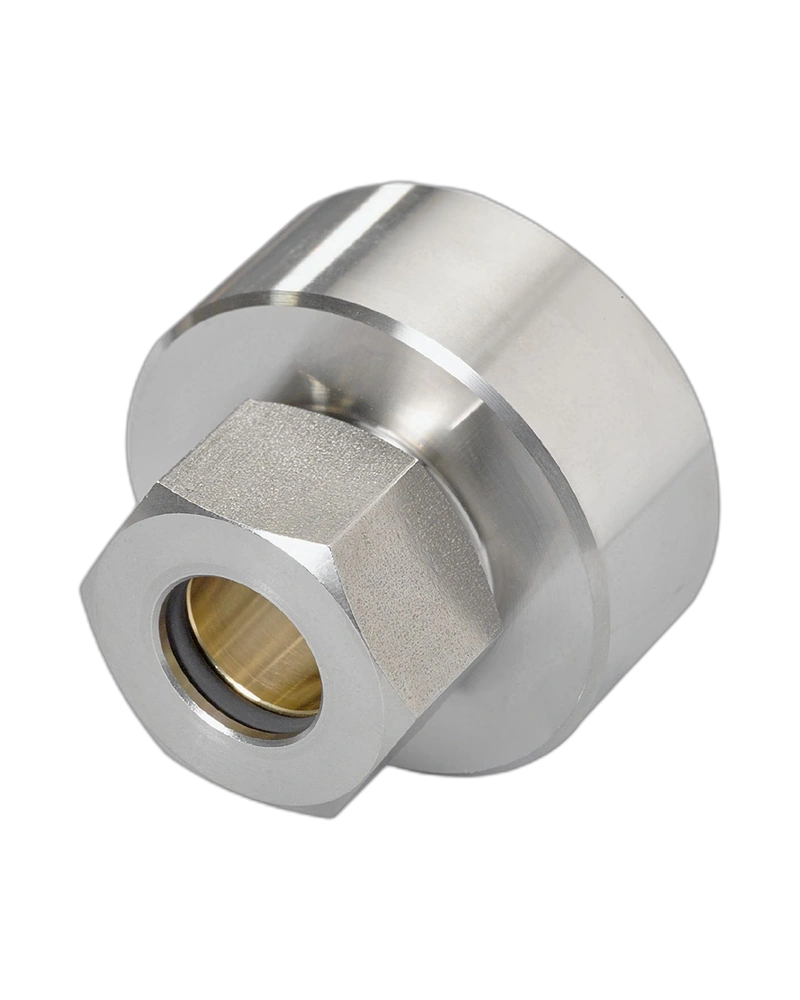

The E43002 is a welding adapter designed for compatible IFM capacitive level sensors used in industrial process installations. Its 50 mm welding adapter and D16 sensor connection provide a practical method for mounting the sensor into suitable containers or process equipment. Stainless steel construction supports durable installation in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E43002 is designed for safe and reliable installation of compatible capacitive level sensors in containers and process equipment.
The 50 mm welding adapter provides a stable process-side mounting interface, while the D16 configuration supports compatible sensor installation and adjustment.
The adapter uses stainless steel components with brass and FKM elements in the mounting arrangement. Its robust construction is suitable for industrial environments.
The E43002 is suitable for capacitive level sensors and industrial process applications where reliable sensor mounting and adjustable immersion depth are required.
Welding adapter for level sensors
50 mm welding adapter
D16 sensor connection
Compatible with LK, LI, LT and LL sensors
Stainless steel construction
Brass spacer
FKM clamping ring
Pressure rating 0.05 MPa
Ambient temperature 0 to 80°C
Pack quantity of 1 piece
Capacitive level measurement
Tank level monitoring
Industrial process equipment
Liquid level detection
Process automation
Sensor installation systems
| Specification | Details |
|---|---|
| Product Code | E43002 |
| Product Type | Welding adapter |
| Compatible Sensors | LK, LI, LT, LL |
| Welding Adapter Diameter | 50 mm |
| Sensor Connection | Ø16 mm |
| Material | Stainless steel |
| Spacer | Brass |
| Clamping Ring | FKM |
| Pressure Rating | 0.05 MPa / 0.5 bar |
| Ambient Temperature | 0 to 80°C |
| Weight | 394.5 g |
| Pack Quantity | 1 pcs. |
