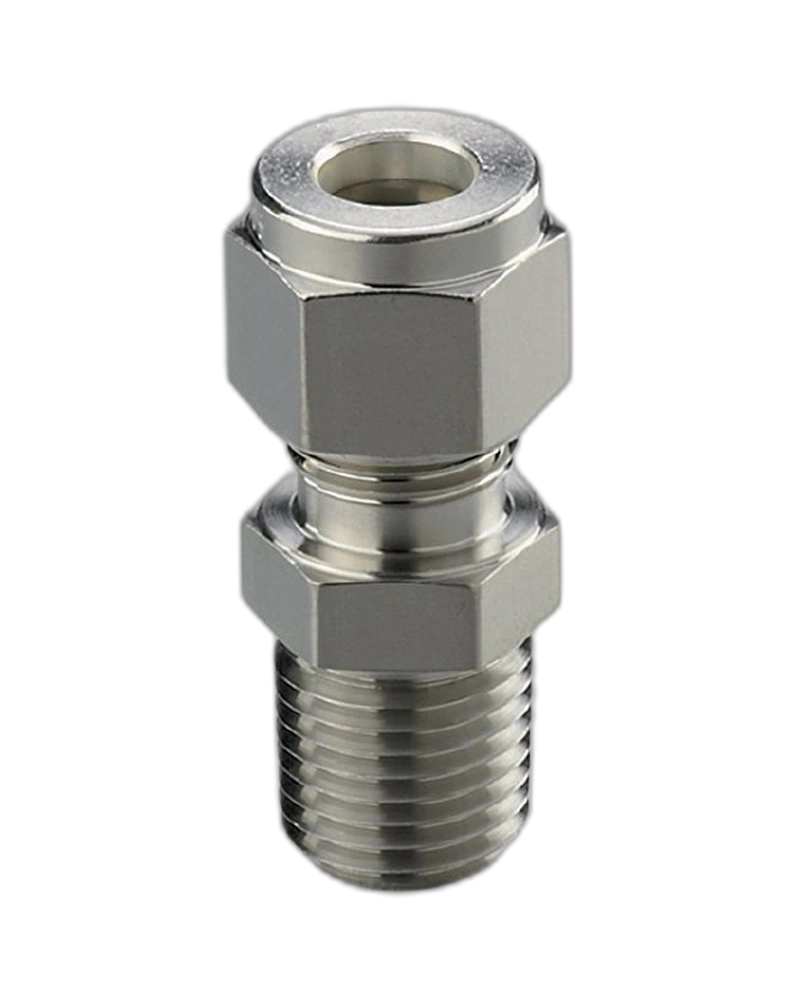

The E40264 progressive ring fitting is designed for mounting compatible temperature sensors in industrial process applications. It provides an Ø8 mm sensor connection with an R1/4 threaded process connection. The compact stainless steel 316L construction supports reliable installation in demanding environments, while the progressive ring design enables convenient adjustment of sensor immersion depth for suitable measurement arrangements.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E40264 provides a practical mounting solution for compatible temperature sensors used in industrial process equipment.
The progressive ring arrangement allows the required sensor immersion depth to be conveniently adjusted during installation.
The R1/4 threaded connection provides compatibility with suitable process equipment and piping systems.
The fitting is made from stainless steel 316L / 1.4404 and has a pressure rating of 50 bar / 5 MPa.
Progressive ring fitting
R1/4 process connection
Ø8 mm sensor connection
316L stainless steel construction
50 bar pressure rating
Adjustable immersion depth
Suitable for temperature sensors
Compact design
Robust industrial construction
Easy sensor installation
Temperature measurement
Process piping
Industrial containers
Sensor mounting
Process equipment
Industrial automation
Temperature monitoring
Factory equipment
| Specification | Details |
|---|---|
| Product Code | E40264 |
| Product Type | Progressive ring fitting |
| Model | COMPRESSION FITTING R1/4 |
| Sensor Connection | Ø8 mm |
| Process Connection | R1/4 |
| Material | Stainless steel 316L / 1.4404 |
| Pressure Rating | 50 bar / 5 MPa |
| Weight | 38.2 g |
| Pack Quantity | 1 pc. |
