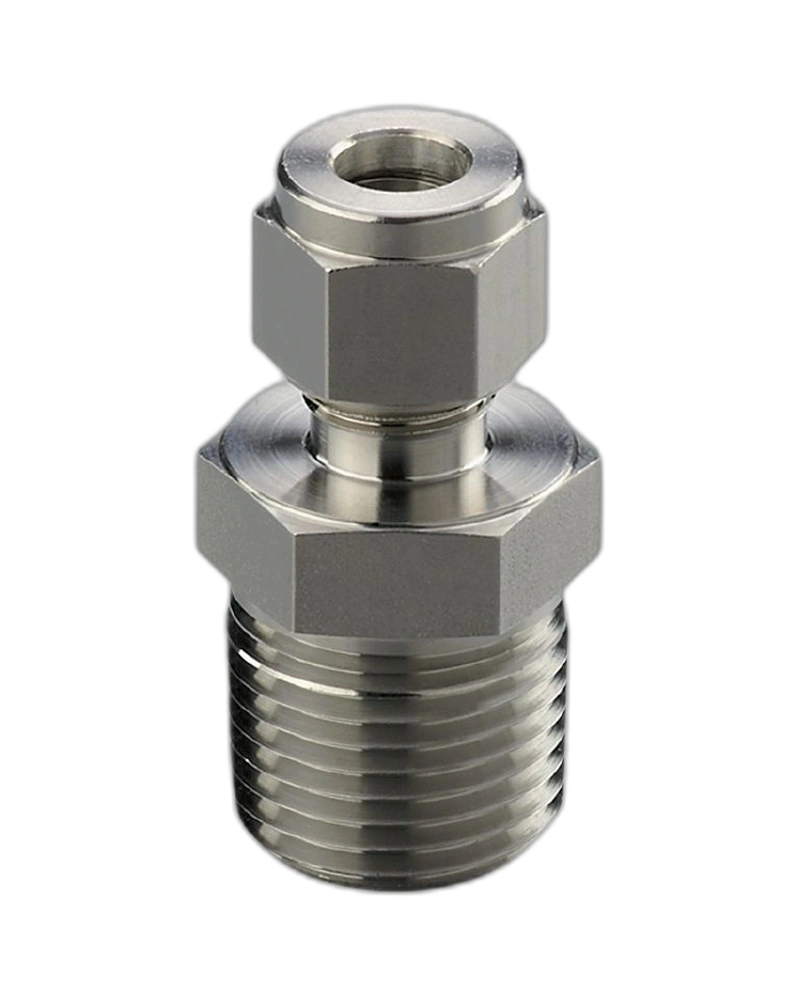

The E40263 progressive ring fitting provides a secure mounting interface for compatible temperature sensors in industrial process installations. It features an Ø8 mm sensor connection and an R1/2 threaded process connection. The robust stainless steel 316L construction is suitable for demanding industrial environments, while the progressive ring design allows convenient adjustment of the required sensor immersion depth.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E40263 is designed for quick and easy mounting of compatible temperature sensors in suitable process installations.
The progressive ring fitting allows convenient adjustment of the required sensor immersion depth for accurate positioning.
Its 316L / 1.4404 stainless steel construction provides durable mechanical performance in demanding industrial environments.
The fitting has a pressure rating of 50 bar / 5 MPa and uses an R1/2 threaded process connection.
Progressive ring fitting
R1/2 process connection
Ø8 mm sensor connection
Stainless steel 316L
50 bar pressure rating
Adjustable immersion depth
Designed for temperature sensors
Robust construction
Suitable for industrial environments
Compact mounting solution
Temperature sensor installation
Process piping
Industrial equipment
Process containers
Temperature monitoring
Industrial automation
Process instrumentation
Factory equipment
| Specification | Details |
|---|---|
| Product Code | E40263 |
| Product Type | Progressive ring fitting |
| Model | COMPRESSION FITTING R1/2 |
| Sensor Connection | Ø8 mm |
| Process Connection | R1/2 |
| Material | Stainless steel 316L / 1.4404 |
| Pressure Rating | 50 bar / 5 MPa |
| Weight | 79.5 g |
| Pack Quantity | 1 pc. |
