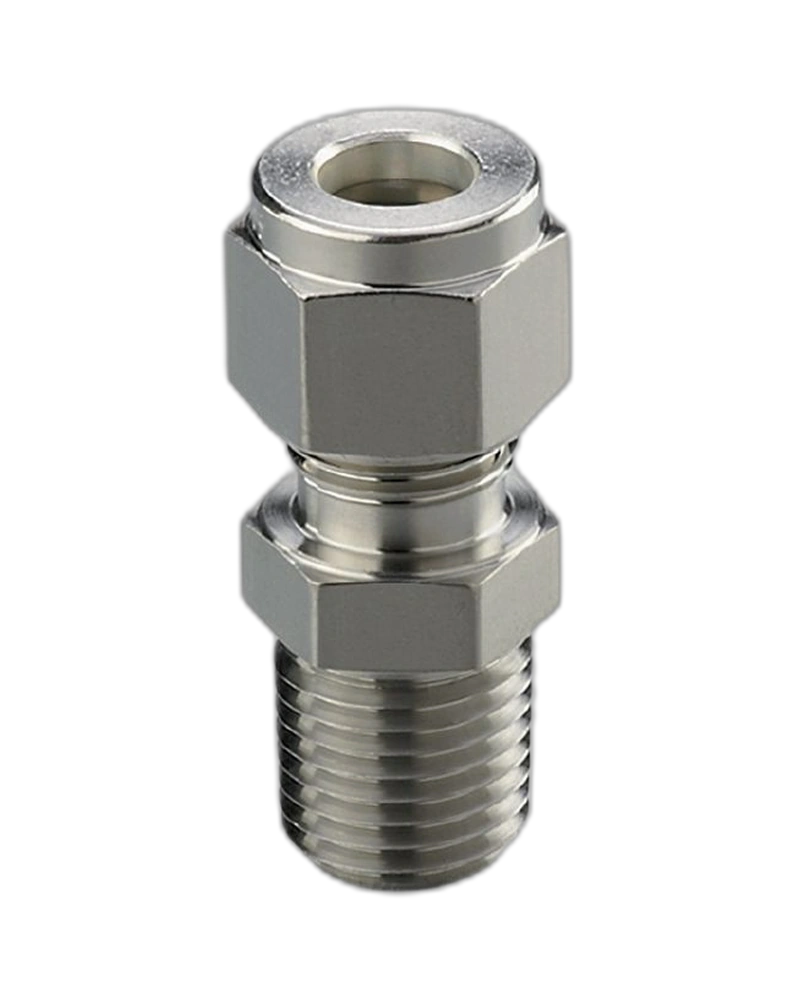

The E40262 progressive ring fitting is a compact process connection component for mounting compatible flow and temperature sensors. It provides an Ø8 mm sensor connection with a 1/4-inch NPT threaded process connection. The stainless steel 316L construction supports reliable industrial installation, while the progressive ring design enables convenient adjustment of sensor immersion depth in suitable pipes and containers.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E40262 is designed for mounting compatible sensors in suitable pipes and containers used in industrial process systems.
The progressive ring arrangement enables convenient adjustment of the sensor immersion depth during installation.
Its 1/4-inch NPT process connection provides compatibility with suitable threaded industrial process connections.
The fitting is manufactured from stainless steel 316L / 1.4404 and has a pressure rating of 50 bar for compatible applications.
Progressive ring fitting
1/4 NPT process connection
Ø8 mm sensor connection
316L stainless steel construction
50 bar pressure rating
Adjustable immersion depth
Compact construction
Suitable for flow sensors
Suitable for temperature sensors
Industrial process connection
Flow measurement
Temperature measurement
Process piping
Industrial containers
Process instrumentation
Sensor mounting
Automation systems
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | E40262 |
| Product Type | Progressive ring fitting |
| Model | COMPRESSION FITTING 1/4 NPT |
| Sensor Connection | Ø8 mm |
| Process Connection | 1/4" NPT |
| Material | Stainless steel 316L / 1.4404 |
| Pressure Rating | 50 bar / 5 MPa |
| Weight | 38.5 g |
| Pack Quantity | 1 pc. |
