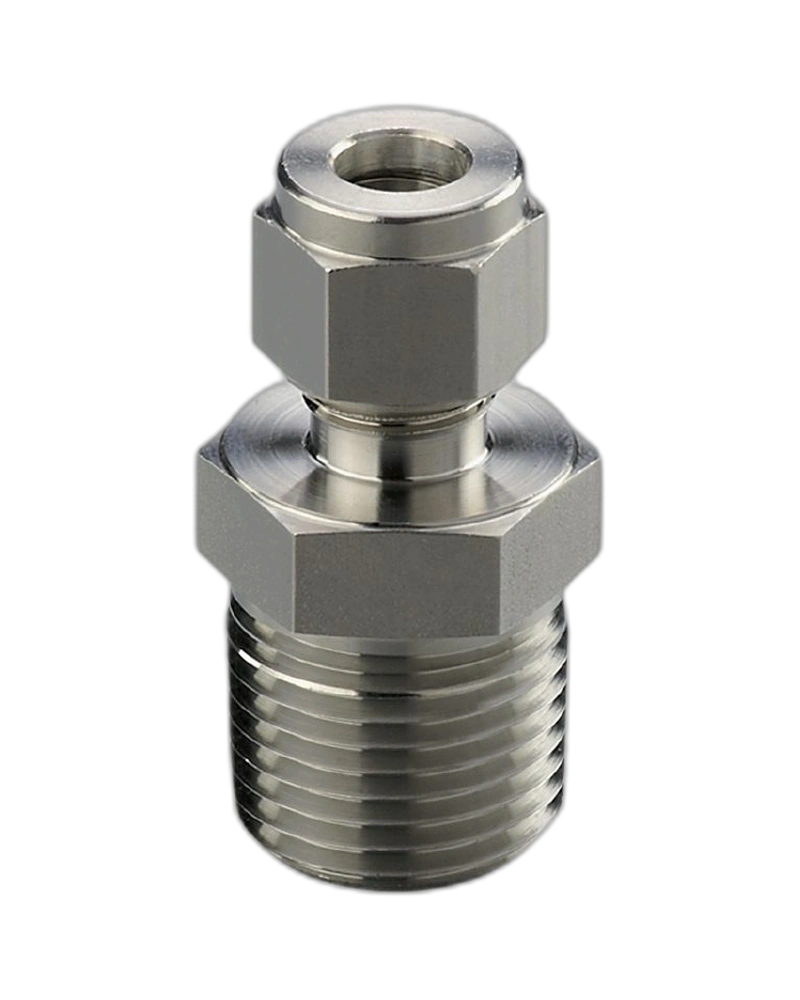

The E40261 progressive ring fitting is designed for mounting compatible flow and temperature sensors in process pipes and containers. It features an Ø8 mm sensor connection and a 1/2-inch NPT threaded process connection for suitable installations. The 316L stainless steel construction provides robust mechanical performance, while the progressive ring design enables convenient adjustment of sensor immersion depth.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E40261 provides a secure mounting interface for compatible flow and temperature sensors used in industrial process systems.
The progressive ring design allows convenient adjustment of the sensor's immersion depth to achieve appropriate positioning within the process.
The 1/2-inch NPT process connection enables integration with compatible threaded process equipment and piping arrangements.
Manufactured from stainless steel 316L / 1.4404, the fitting is designed for demanding industrial environments. The product has a 50 bar pressure rating.
Progressive ring fitting
1/2 NPT process connection
Ø8 mm sensor connection
316L stainless steel construction
50 bar pressure rating
Adjustable sensor immersion depth
Suitable for flow sensors
Suitable for temperature sensors
Robust industrial design
Suitable for process piping
Flow measurement
Temperature measurement
Process piping
Industrial containers
Sensor installation
Process equipment
Industrial automation
Fluid monitoring systems
| Specification | Details |
|---|---|
| Product Code | E40261 |
| Product Type | Progressive ring fitting |
| Model | COMPRESSION FITTING 1/2 NPT |
| Sensor Connection | Ø8 mm |
| Process Connection | 1/2" NPT |
| Material | Stainless steel 316L / 1.4404 |
| Pressure Rating | 50 bar / 5 MPa |
| Weight | 80 g |
| Pack Quantity | 1 pc. |
