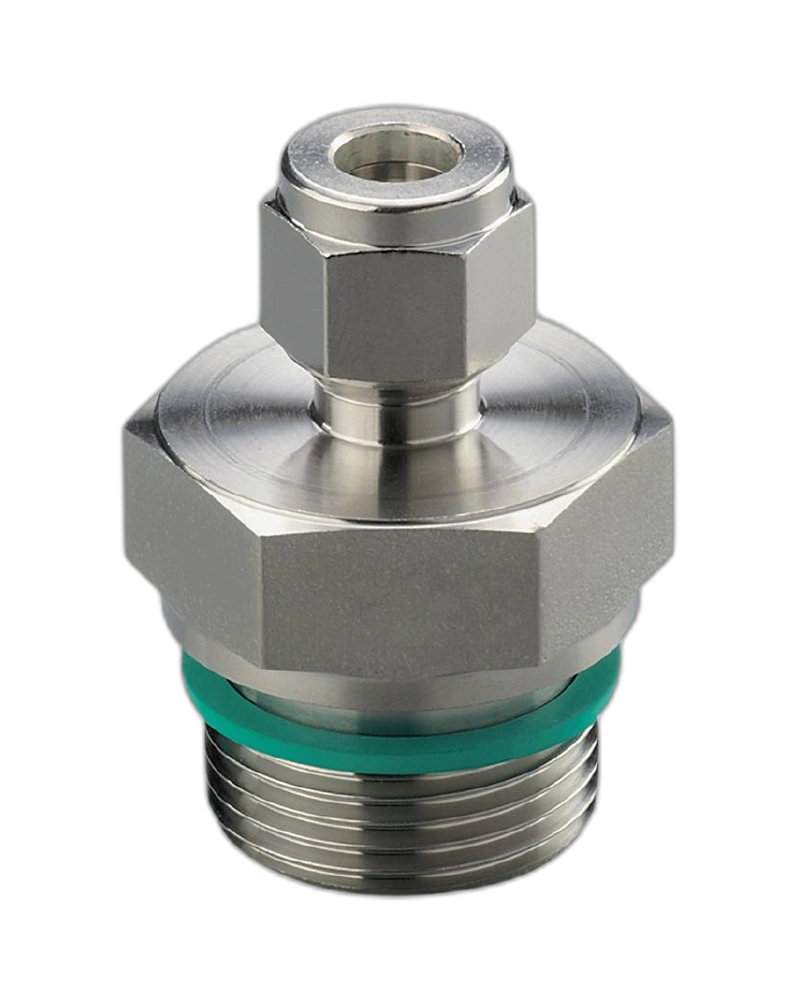

The E40260 progressive ring fitting is designed for quick and convenient mounting of compatible flow and temperature sensors in pipes and containers. It provides adjustable sensor immersion depth and a secure G3/4 process connection. The robust 316L stainless steel construction is suitable for demanding industrial environments, while the FKM sealing element and 50 bar pressure rating support dependable process installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E40260 provides a practical connection for compatible flow and temperature sensors used in process piping and containers.
The progressive ring arrangement allows convenient adjustment of the required sensor immersion depth for suitable process measurement.
The fitting is manufactured from stainless steel 316L / 1.4404, providing robust construction for industrial applications.
The fitting has a pressure rating of 50 bar (5 MPa), subject to proper installation and application compatibility.
Progressive ring fitting
G3/4 process connection
Ø8 mm sensor connection
316L stainless steel
FKM sealing gasket
50 bar pressure rating
Adjustable immersion depth
Suitable for flow sensors
Suitable for temperature sensors
Robust industrial construction
Flow sensor mounting
Temperature sensor mounting
Industrial piping
Process containers
Process instrumentation
Fluid monitoring
Industrial automation
Factory equipment
| Specification | Details |
|---|---|
| Product Code | E40260 |
| Product Type | Progressive ring fitting |
| Model | COMPRESSION FITTING G3/4 |
| Sensor Connection | Ø8 mm |
| Process Connection | G3/4 |
| Material | Stainless steel 316L / 1.4404 |
| Seal | FKM |
| Pressure Rating | 50 bar / 5 MPa |
| Weight | 159.3 g |
| Pack Quantity | 1 pc. |
