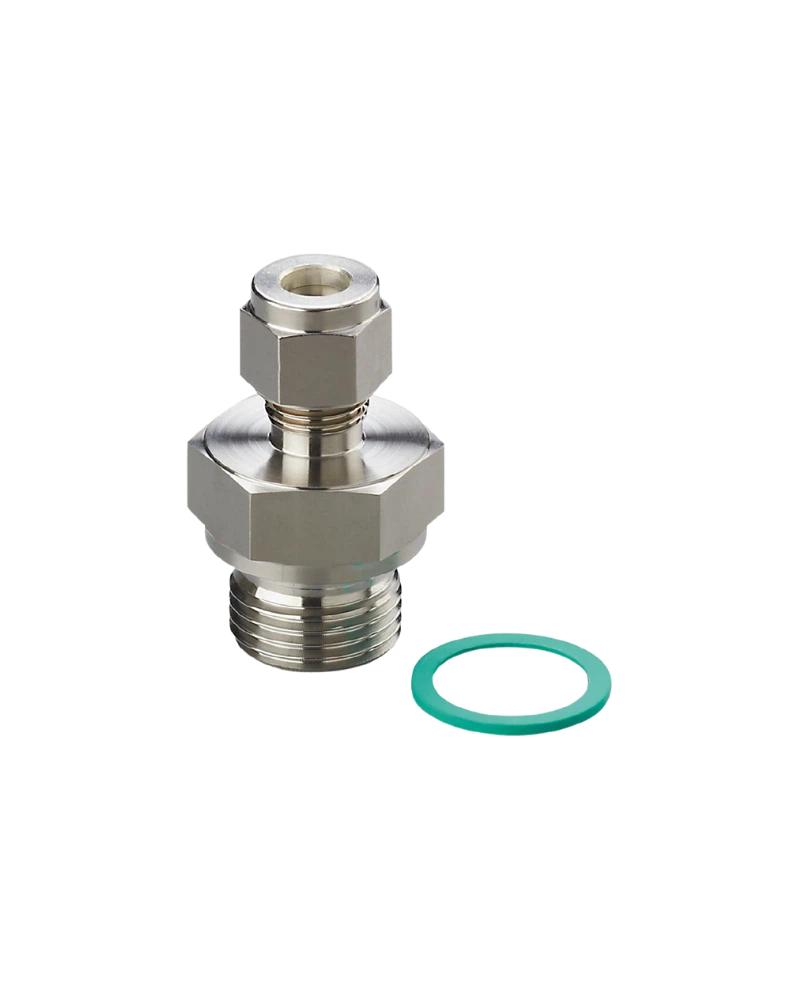

The E40258 progressive ring fitting is designed for mounting compatible flow and temperature sensors in pipes and containers. It allows convenient adjustment of the sensor immersion depth while providing a secure process connection. Made from robust 316L stainless steel, it is suitable for demanding industrial environments and offers a pressure rating of up to 50 bar for compatible applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E40258 is designed to support the installation of compatible flow and temperature sensors in pipes and containers. Its compression fitting arrangement allows the sensor to be positioned at the required immersion depth.
The progressive ring fitting provides convenient adjustment of the sensor immersion depth, helping achieve suitable sensor positioning within the process.
The fitting is manufactured from 316L stainless steel, providing robust mechanical construction for demanding industrial environments.
The E40258 has a pressure rating of 50 bar (5 MPa), subject to correct installation, medium compatibility and application conditions.
Progressive ring fitting
G1/2 threaded process connection
Ø8 mm sensor connection
316L stainless steel construction
FKM sealing ring
50 bar pressure rating
Adjustable sensor immersion depth
Suitable for flow sensors
Suitable for temperature sensors
Designed for industrial environments
Flow sensor installation
Temperature sensor installation
Industrial piping
Process equipment
Containers
Process measurement systems
Industrial automation
Maintenance and sensor replacement
| Specification | Details |
|---|---|
| Product Code | E40258 |
| Product Type | Progressive ring fitting |
| Model | COMPRESSION FITTING G1/2 |
| Sensor Connection | Ø8 mm |
| Process Connection | G1/2 |
| Material | Stainless steel 316L / 1.4404 |
| Seal | FKM |
| Pressure Rating | 50 bar / 5 MPa |
| Weight | 100.8 g |
| Pack Quantity | 1 pc. |
