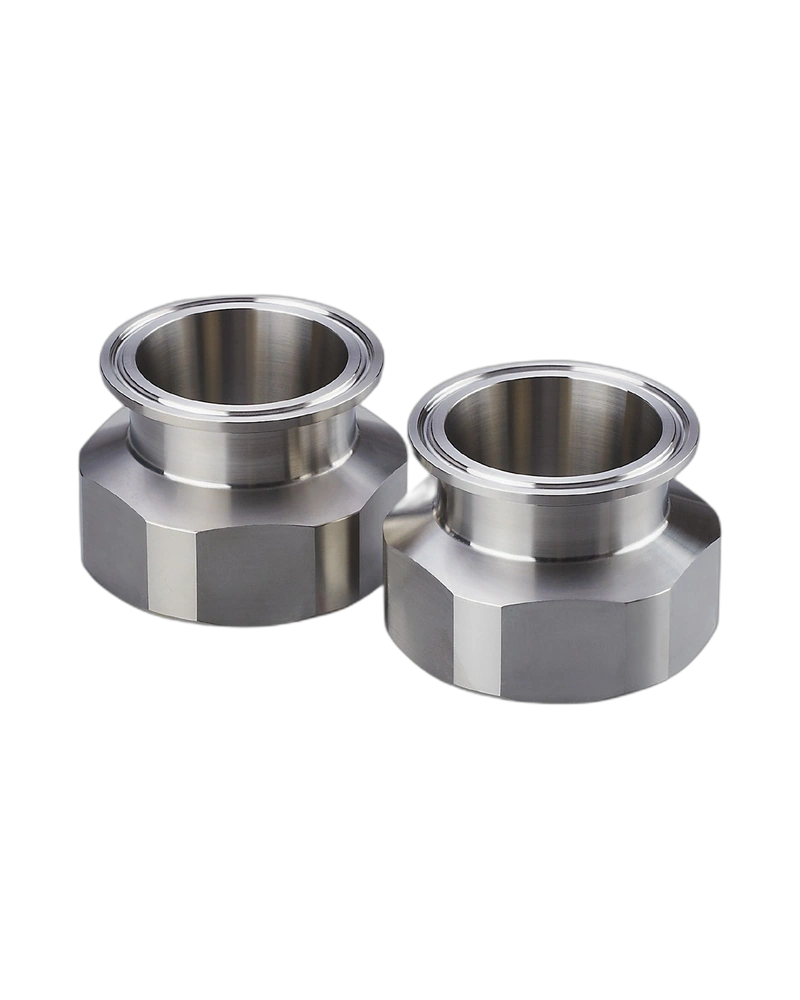

The E40254 is a stainless-steel mounting adapter for compatible flow sensors used in industrial liquid and gas applications. It provides a G2 sensor connection and a Clamp DN50 (2") process connection according to DIN 32676/ISO 2852. The adapter is constructed from 316L stainless steel and includes two O-rings, providing a practical connection solution for compatible flow sensor installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E40254 is designed for compatible flow sensors such as SM2 and SM9 types, providing a dedicated mounting interface for industrial process installations.
The adapter uses stainless steel 316L / 1.4404 construction, making it suitable for compatible industrial process environments and applications requiring a robust mounting component.
It features a G2 sensor connection and Clamp DN50 (2") process connection according to DIN 32676 and ISO 2852 standards.
The adapter is intended for compatible flow sensor installations involving liquids and gases in industrial applications. The specified construction and supplied sealing elements support practical installation of the sensor within the process connection.
Mounting adapter for flow sensors
G2 sensor connection
Clamp DN50 (2") process connection
DIN 32676 compatible
ISO 2852 compatible
Stainless steel 316L construction
Suitable for industrial applications
Suitable for liquid and gas media
Supplied with O-rings
Compatible with selected flow sensors
Flow sensor installation
Industrial process systems
Liquid measurement applications
Gas measurement applications
Piping systems
Process instrumentation
Industrial automation
Flow monitoring equipment
| Specification | Details |
|---|---|
| Product Code | E40254 |
| Product Type | Mounting adapter for flow sensors |
| Model | ADAPT G2-CLAMP/D64,0/DIN32676 |
| Sensor Connection | G2 |
| Process Connection | Clamp DN50 (2") |
| Standard | DIN 32676 / ISO 2852 |
| Material | Stainless steel 316L / 1.4404 |
| Media | Liquids and gases |
| O-ring | FKM 47.22 × 3.53 mm |
| O-rings Supplied | 2 pcs |
| Weight | 1040 g |
| Application | Industrial |
