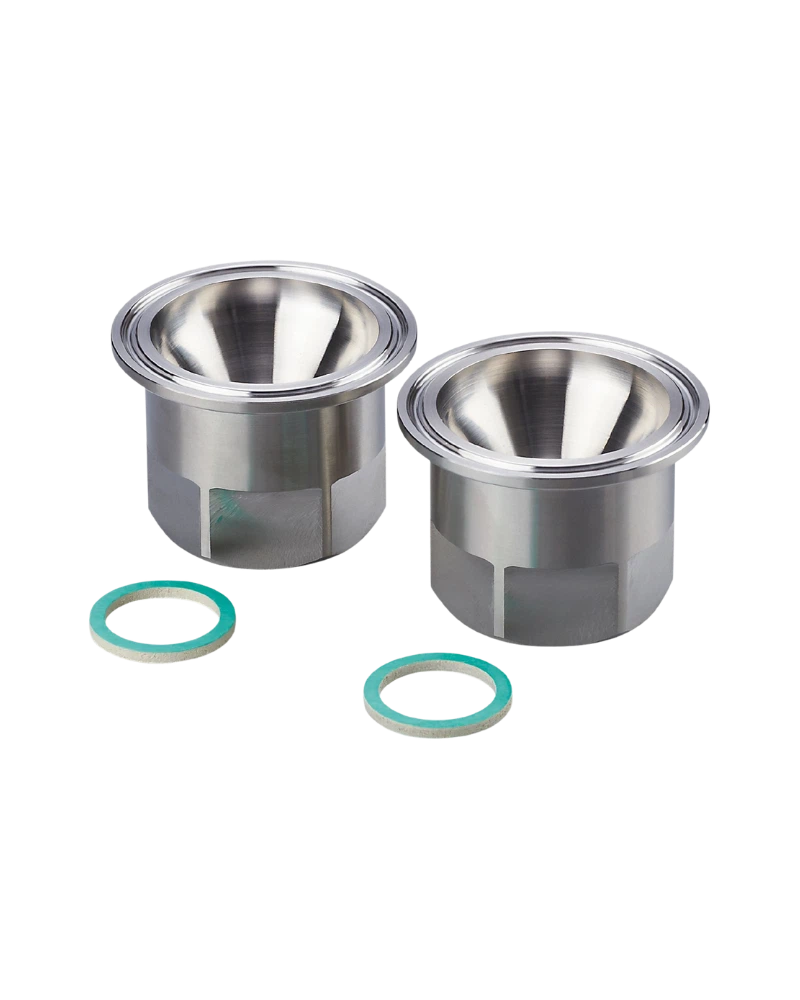

The E40253 is a stainless-steel mounting adapter designed for compatible flow sensors in industrial and hygienic applications. It provides a G1 sensor connection and a Clamp DN40 (1.5") process connection according to DIN 32676/ISO 2852. The adapter is suitable for liquid media, has a 16 bar pressure rating and is supplied with two reinforced-fibre NBR seals.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E40253 is designed for compatible flow sensors such as SM8 and SU8 types, providing a practical mounting interface for process installations.
The adapter is manufactured from stainless steel 316L / 1.4404, supporting robust use in compatible industrial and hygienic process environments.
The adapter provides a G1 sensor connection with a Clamp DN40 (1.5") process connection according to DIN 32676 and ISO 2852.
It is designed for liquid media and industrial or hygienic applications. The specified pressure rating is 16 bar, with final suitability depending on the application and material compatibility.
Mounting adapter for flow sensors
G1 sensor connection
Clamp DN40 (1.5") process connection
DIN 32676 compatible
ISO 2852 compatible
Stainless steel 316L construction
Suitable for liquid media
Industrial application design
Hygienic application suitability
16 bar pressure rating
Flow sensor installation
Industrial process equipment
Hygienic systems
Liquid process applications
Piping systems
Flow measurement
Process instrumentation
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E40253 |
| Product Type | Mounting adapter for flow sensors |
| Model | ADAPT G1-CLAMP/D50,5/DIN32676 |
| Sensor Connection | G1 |
| Process Connection | Clamp DN40 (1.5") |
| Standard | DIN 32676 / ISO 2852 |
| Material | Stainless steel 316L / 1.4404 |
| Media | Liquid media |
| Pressure Rating | 16 bar |
| Seals Supplied | 2 × NBR reinforced fibre |
| Weight | 662.5 g |
| Pack Quantity | 2 pcs |
| Application | Industrial / hygienic |
