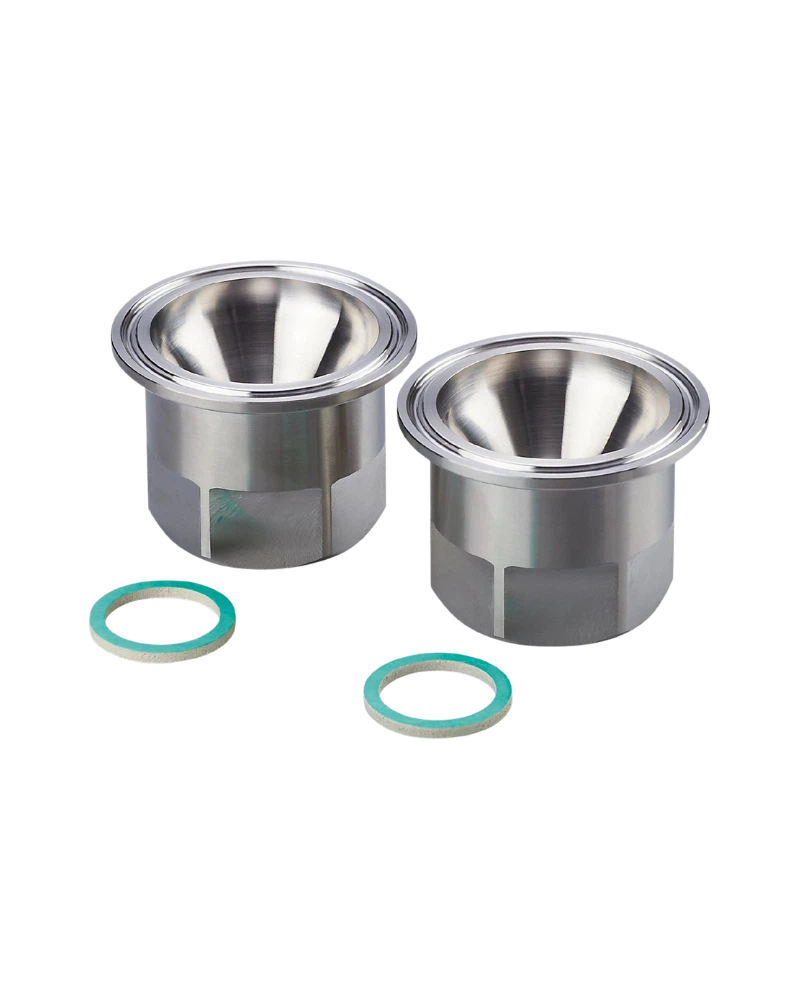

The E40252 is a stainless-steel mounting adapter for compatible flow sensors, designed for industrial and hygienic applications with liquid media. It provides a G1 sensor connection and a Clamp DN50 process connection according to DIN 32676/ISO 2852. The adapter is rated for 16 bar and is supplied with two reinforced-fibre NBR seals for installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E40252 is designed for compatible flow sensors, including SM8-type sensors, providing a practical connection interface for process installation.
The adapter is manufactured from stainless steel 316L / 1.4404, providing a robust construction for compatible industrial and hygienic applications.
It features a G1 sensor connection and a Clamp DN50 (2") process connection according to DIN 32676 and ISO 2852.
The E40252 is intended for liquid media and is specified for industrial and hygienic applications. Its stated pressure rating is 16 bar, subject to application conditions and compatibility requirements.
Mounting adapter for flow sensors
G1 sensor connection
Clamp DN50 (2") process connection
DIN 32676 compatible
ISO 2852 compatible
Stainless steel 316L construction
Suitable for liquid media
Designed for industrial applications
Suitable for hygienic applications
16 bar pressure rating
Flow sensor installation
Industrial process systems
Hygienic process systems
Liquid media applications
Piping systems
Process instrumentation
Industrial automation
Flow measurement installations
| Specification | Details |
|---|---|
| Product Code | E40252 |
| Product Type | Mounting adapter for flow sensors |
| Model | ADAPT G1-CLAMP/D64,0/DIN32676 |
| Sensor Connection | G1 |
| Process Connection | Clamp DN50 (2") |
| Standard | DIN 32676 / ISO 2852 |
| Material | Stainless steel 316L / 1.4404 |
| Media | Liquid media |
| Pressure Rating | 16 bar |
| Seals Supplied | 2 × NBR reinforced fibre |
| Weight | 834.5 g |
| Application | Industrial / hygienic |
