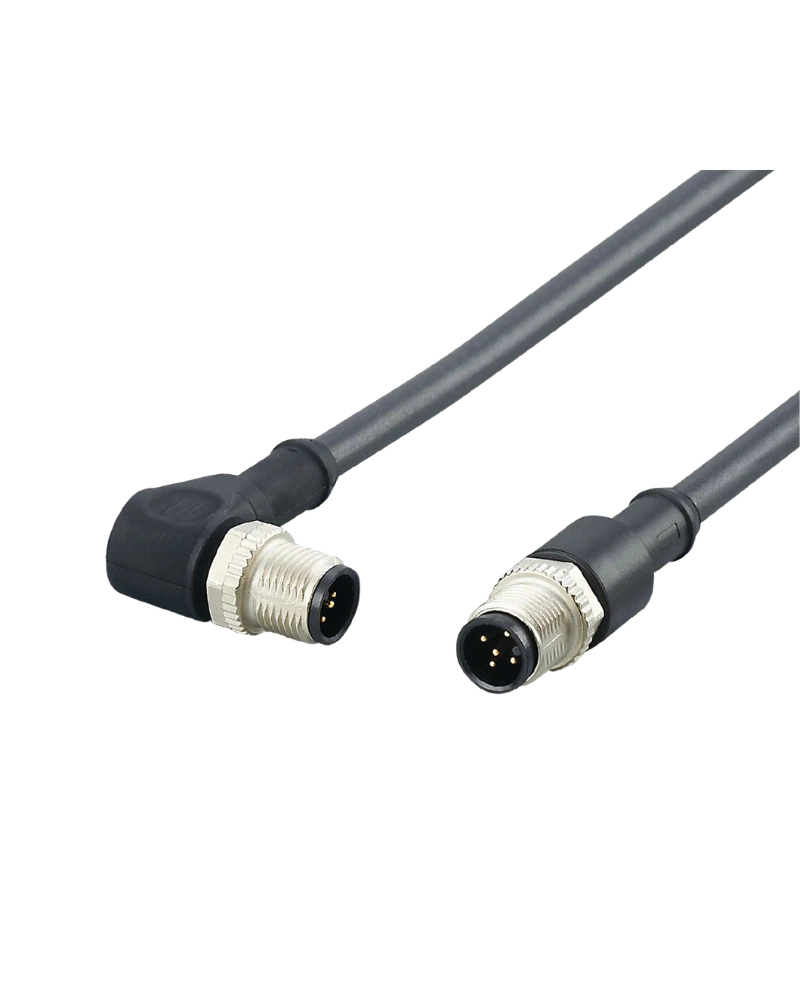

The E3M153 is a 16 m screened M12 connection cable designed for 3D Smart Sensor systems with analogue PAL video output. It features an angled A-coded 5-pole M12 connector and robust industrial construction. IP67 and IP69K protection, drag-chain suitability and a minimum 60 mm bending radius support reliable installation in demanding automation and mobile-machine environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 16 m cable provides extended connection capability for large machine installations and systems where the camera or sensor is positioned far from the connected equipment.
The screened cable design supports reliable analogue video signal transmission for compatible mobile 3D Smart Sensor applications.
The angled A-coded 5-pole M12 connector provides a secure industrial interface. Stainless-steel locking components support reliable mechanical connection.
The E3M153 provides IP67 and IP69K protection and operates from -40 °C to +80 °C. Drag-chain suitability provides additional installation flexibility.
16 m connection cable
Screened cable construction
M12 angled connector
A-coded connector
5 contacts
Designed for 3D Smart Sensor systems
Analogue PAL video compatibility
IP67 protection
IP69K protection
Drag-chain suitable
3D Smart Sensor systems
Mobile camera applications
Analogue video transmission
Industrial automation
Factory automation
Machine vision systems
Mobile machinery
Long-distance sensor connections
| Specification | Details |
|---|---|
| Product Code | E3M153 |
| Product Type | Connection cable |
| Model | CONNECTION CABLE M12 16M |
| Cable Length | 16 m |
| Cable Type | Screened |
| Housing Material | PUR |
| Sealing | FKM |
| Connector | 1 × M12, angled |
| Coding | A |
| Contacts | 5 |
| Locking Material | Stainless steel 303 / 1.4305 |
| Operating Voltage | < 25 V AC / < 60 V DC |
| Ambient Temperature | -40 °C to +80 °C |
| Protection Rating | IP67 / IP69K |
| Drag Chain Suitability | Yes |
| Fixed Bending Radius | ≥ 60 mm |
| Weight | 806.2 g |
| Pack Quantity | 1 piece |
