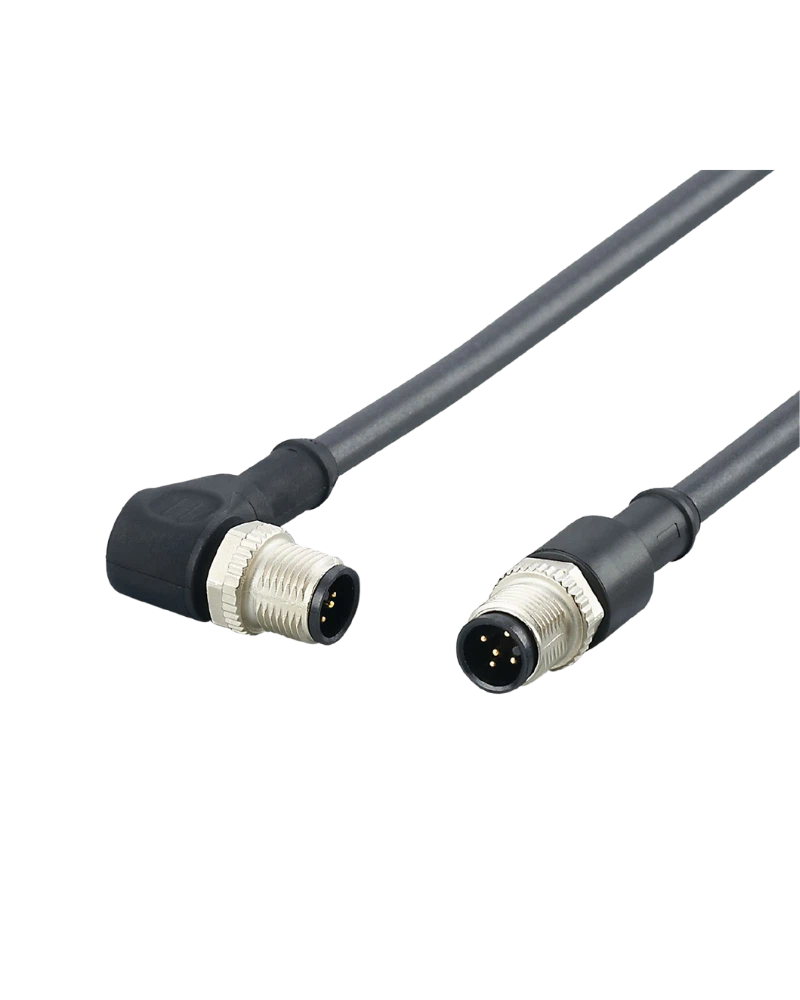

The E3M151 is a 5 m screened M12 connection cable designed for mobile 3D Smart Sensor systems with analogue PAL video output. It provides reliable signal transmission through a robust industrial cable and angled M12 connector. IP67 and IP69K protection, drag-chain suitability and a wide temperature range make it suitable for demanding factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E3M151 uses a screened cable design for reliable signal transmission in compatible 3D Smart Sensor applications with analogue PAL video output.
The cable features an angled 5-pole M12 connector with A coding and stainless-steel locking components, providing a secure connection for industrial installations.
The cable uses a TPU outer construction with FKM sealing and durable contact materials. This supports reliable operation in industrial environments.
The cable provides IP67 and IP69K protection and operates from -40 °C to +80 °C. It is also suitable for drag-chain applications.
5 m connection cable
Screened cable construction
M12 angled connector
A-coded connector
5 contacts
Designed for 3D Smart Sensor systems
Suitable for analogue PAL video output
IP67 and IP69K protection
-40 °C to +80 °C ambient temperature
Drag-chain suitable
3D Smart Sensor systems
Mobile camera systems
Analogue video applications
Industrial automation
Factory automation
Machine vision
Mobile machinery
Industrial camera connections
| Specification | Details |
|---|---|
| Product Code | E3M151 |
| Product Type | Connection cable |
| Model | CONNECTION CABLE M12 5M |
| Cable Length | 5 m |
| Cable Type | Screened |
| Cable Material | TPU |
| Connector | 1 × M12, angled |
| Coding | A |
| Contacts | 5 |
| Protection Rating | IP67 / IP69K |
| Operating Voltage | < 25 V AC / < 60 V DC |
| Ambient Temperature | -40 °C to +80 °C |
| Drag Chain Suitability | Yes |
| Fixed Bending Radius | ≥ 60 mm |
| Weight | 274.3 g |
| Pack Quantity | 1 piece |
