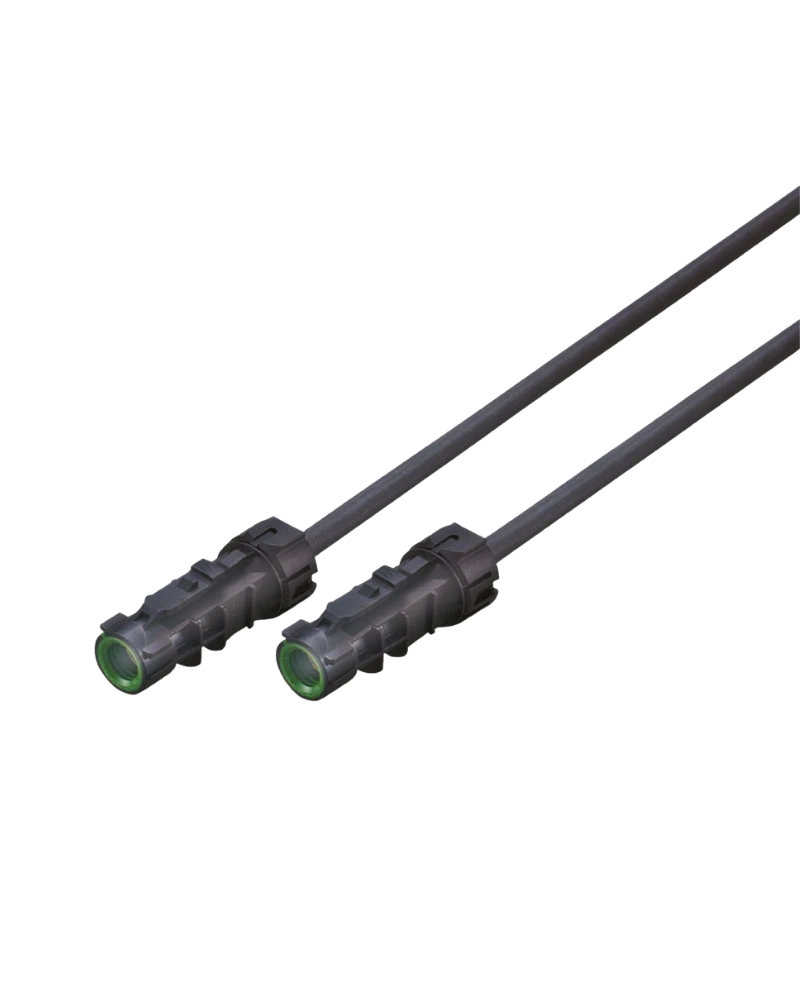

The E3M123 is a 3 m MCI connection cable designed for connecting a mobile 3D camera or sensor with its system illumination unit. The cable uses a black TPU construction with gold-plated contacts for reliable signal transmission. IP67 protection, drag-chain suitability and a wide temperature range make it suitable for demanding mobile-machine and industrial imaging applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E3M123 is designed for reliable connection between compatible mobile 3D camera systems and illumination units. It supports stable signal transmission within the imaging system.
The 3 m cable provides extended routing flexibility where the camera and illumination unit are installed at greater distances within the machine.
The cable uses black TPU material and is designed for industrial environments. Gold-plated contacts support reliable electrical connection.
The E3M123 is suitable for drag-chain applications and provides a minimum fixed-installation bending radius of 40 mm. It also supports an ambient temperature range of -40 °C to +105 °C and IP67 protection.
3 m MCI connection cable
Designed for mobile 3D cameras
Camera-to-illumination connection
Gold-plated contacts
Black TPU cable
IP67 protection
-40 °C to +105 °C ambient temperature
Drag-chain suitable
Minimum 40 mm fixed bending radius
Suitable for demanding industrial environments
Mobile 3D camera systems
O3M camera systems
System illumination connections
Mobile machinery
Industrial imaging
Machine vision systems
Automation equipment
Camera monitoring applications
| Specification | Details |
|---|---|
| Product Code | E3M123 |
| Product Type | Connection cable |
| Model | MCI CONNECTION CABLE 3M |
| Cable Length | 3 m |
| Cable Material | TPU |
| Cable Colour | Black |
| Operating Voltage | <25 V AC / <60 V DC |
| Ambient Temperature | -40 °C to +105 °C |
| Protection Rating | IP67 |
| Drag Chain Suitability | Yes |
| Fixed Bending Radius | ≥40 mm |
| Weight | Approx. 116.8 g |
| Pack Quantity | 1 piece |
