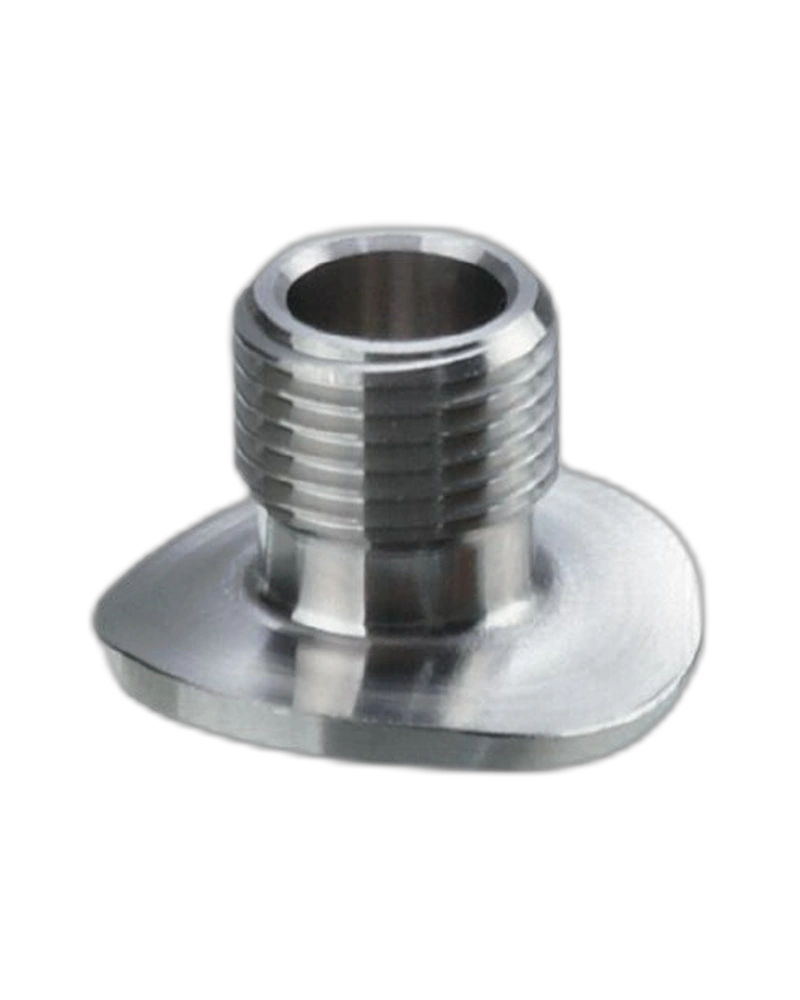

IFM E38829 is a hygienic welding adapter designed for reliable process sensor installation in industrial pipes and tanks. It features 316L stainless steel construction, a Ø18 mm welding adapter, G1/8 internal thread and 120 bar pressure rating.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Process Sensor Installation
E38829 provides a secure connection for compatible process sensors in pipes and process vessels. The zero-void configuration is designed to support hygienic installation. It creates a robust interface between the sensor and process equipment. The adapter is suitable for demanding process applications.
Durable Stainless Steel
The adapter is manufactured from stainless steel 316L / 1.4404. This construction provides durability and corrosion resistance for industrial use. The wetted surface has a smooth Ra < 0.4 µm finish. This supports clean and hygienic process installations.
G1/8 Sensor Connection
The G1/8 internal thread and Ø3 mm sensor interface provide a compact sensor mounting arrangement. Compatible process sensors can be securely installed within the adapter. The design supports reliable sensor positioning. It is suitable for process measurement applications.
2 mm Pipe Wall Compatibility
E38829 is designed for nominal pipe sizes from DN25 to DN100 and a 2 mm pipe wall thickness. The Ø18 mm welding adapter provides a secure welded connection. With a 120 bar pressure rating, it is suitable for high-pressure process applications.
120 bar pressure rating
316L stainless steel construction
Ø18 mm welding adapter
G1/8 internal sensor connection
Zero-void hygienic design
Suitable for pipes and process vessels
Hygienic process systems
Food and beverage processing
Process sensor installation
Industrial tanks
Process piping
Automation and monitoring systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E38829 |
| Product Type | Welding Adapter for Process Sensors |
| Designation | ADAPT, D3/ZERO VOID/R=19/T=2.00 |
| Pressure Rating | 120 bar / 12 MPa |
| Material | Stainless steel 316L / 1.4404 |
| Sensor Connection | G1/8 internal thread, Ø3 mm |
| Process Connection | Welding adapter Ø18 mm |
| Nominal Pipe Size | DN25–DN100 |
| Pipe Wall Thickness | 2 mm |
| Surface Finish | Ra < 0.4 µm |
| Weight | 9.3 g |
| Pack Quantity | 1 pc |
| Application | Industrial and hygienic applications |
