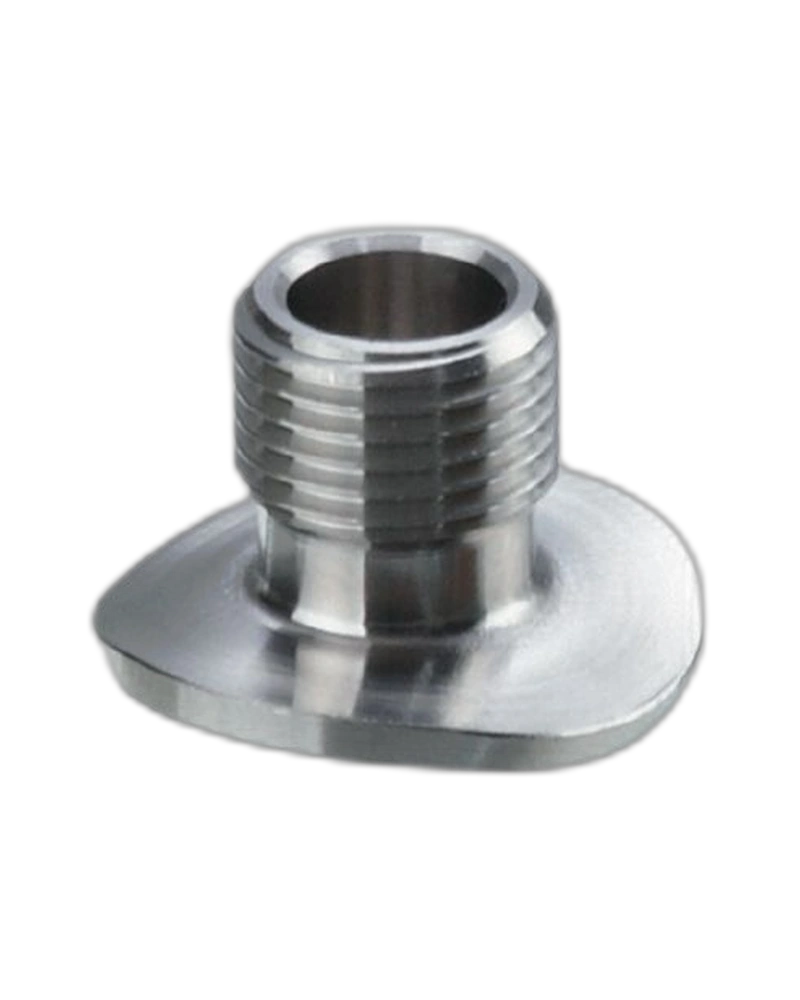

IFM E38828 is a robust stainless steel welding adapter for process sensors used in industrial and hygienic applications. It features a Ø18 mm welding connection, G1/8 internal sensor thread and 120 bar pressure rating for reliable process integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Hygienic Welding Connection
E38828 provides a welded process connection for compatible sensors used in pipes, tanks and process equipment. Its zero-void design helps reduce areas where process media can accumulate. This supports hygienic installation requirements. The adapter is suitable for demanding industrial environments.
316L Stainless Steel Body
The adapter is manufactured from stainless steel 316L / 1.4404 for reliable mechanical performance. The material provides good resistance to corrosion and process conditions. A smooth Ra < 0.4 µm surface finish supports hygienic applications. The robust design is suitable for harsh industrial environments.
Sensor Interface
The adapter incorporates a G1/8 internal thread with Ø3 mm sensor interface. This allows compatible process sensors to be securely mounted. The compact sensor connection supports practical installation in process systems. It provides a reliable interface between the sensor and process line.
Pressure and Pipe Compatibility
E38828 supports pressures up to 120 bar. It is designed for nominal pipe sizes from DN25 to DN100 with a 1.5 mm pipe wall thickness. The Ø18 mm welding adapter provides a secure connection to the process pipe.
120 bar pressure rating
316L stainless steel construction
Ø18 mm welding connection
G1/8 internal sensor thread
Zero-void hygienic design
Suitable for industrial and hygienic applications
Process sensor mounting
Hygienic process equipment
Food and beverage processing
Process pipes and tanks
Industrial temperature and pressure monitoring
Automation systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E38828 |
| Product Type | Welding Adapter for Process Sensors |
| Designation | ADAPT, D3/ZERO VOID/R=19/T=1.50 |
| Pressure Rating | 120 bar / 12 MPa |
| Material | Stainless steel 316L / 1.4404 |
| Sensor Connection | G1/8 internal thread, Ø3 mm |
| Process Connection | Welding adapter Ø18 mm |
| Nominal Pipe Size | DN25–DN100 |
| Pipe Wall Thickness | 1.5 mm |
| Surface Finish | Ra < 0.4 µm |
| Weight | 8.5 g |
| Pack Quantity | 1 pc |
| Application | Industrial and hygienic applications |
