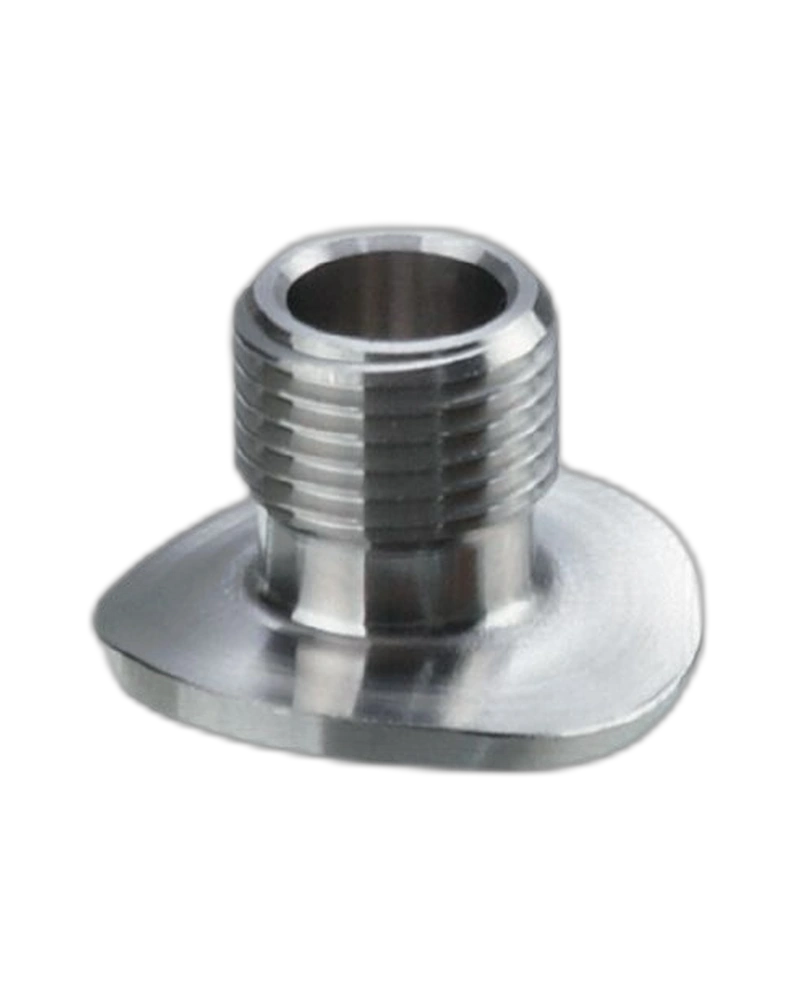

IFM E38827 is a hygienic welding adapter designed for secure installation of process sensors in pipes and tanks. It is manufactured from 316L stainless steel and features a Ø18 mm welding adapter, G1/8 internal sensor connection and 120 bar pressure rating.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Welding Adapter Design
E38827 provides a secure welded connection for compatible process sensors. The adapter can be integrated into suitable pipes and process vessels. Its zero-void design supports hygienic installation requirements. This makes it suitable for demanding industrial and hygienic applications.
316L Stainless Steel Construction
The adapter is manufactured from stainless steel 316L / 1.4404. This material provides durability and good resistance to corrosion. The wetted surface has a smooth Ra < 0.4 µm finish. The robust construction is suitable for harsh process environments.
Sensor Connection
E38827 features a G1/8 internal thread with a Ø3 mm sensor interface. This configuration provides a compact connection for compatible process sensors. The sensor can be securely positioned within the welded adapter. The design supports reliable process measurement.
High Pressure Capability
The welding adapter provides a pressure rating of up to 120 bar. It is designed for nominal pipe sizes from DN25 to DN100 with a 1.25 mm pipe wall thickness. The Ø18 mm welding adapter supports secure process integration.
120 bar pressure rating
316L stainless steel construction
Ø18 mm welding adapter
G1/8 internal sensor connection
Zero-void hygienic design
Suitable for industrial and hygienic applications
Process sensor installation
Food and beverage systems
Hygienic process equipment
Pipes and tanks
Industrial automation
Process monitoring systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E38827 |
| Product Type | Welding Adapter for Process Sensors |
| Designation | ADAPT, D3/ZERO VOID/R=19/T=1.25 |
| Application | Industrial and hygienic process applications |
| Pressure Rating | 120 bar / 12 MPa |
| Material | Stainless steel 316L / 1.4404 |
| Sensor Connection | G1/8 internal thread, Ø3 mm |
| Process Connection | Welding adapter Ø18 mm |
| Nominal Pipe Size | DN25–DN100 |
| Pipe Wall Thickness | 1.25 mm |
| Surface Finish | Ra < 0.4 µm |
| Weight | 8.2 g |
| Pack Quantity | 1 pc |
