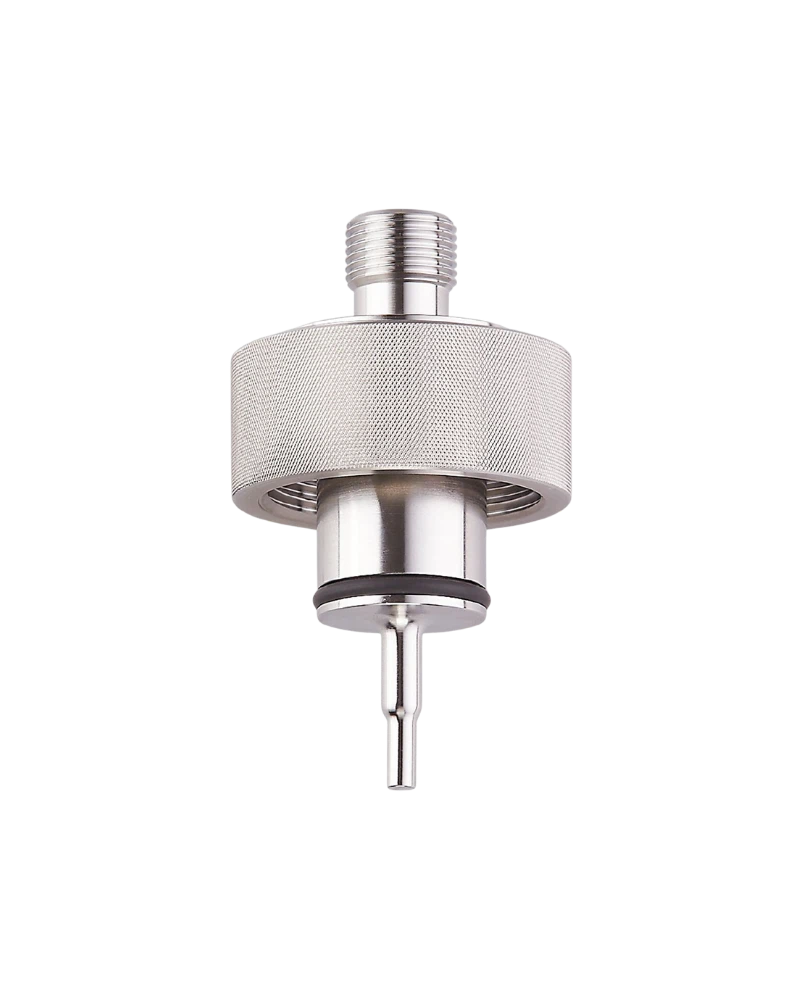

IFM E38826 is a hygienic thermowell designed with a DN25 Ingold process connection for temperature sensors. Its 316L stainless steel body, smooth wetted surface and 16 bar pressure rating provide reliable protection in food, beverage and industrial processes.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Sensor Protection
E38826 protects temperature sensors against aggressive process media and high flow velocities. The thermowell isolates the sensor from direct process exposure while allowing temperature measurement. It also allows sensor replacement without requiring removal of the complete process connection. This improves maintenance convenience.
Ingold Process Connection
The product uses an Ingold Ø25 mm process connection designed for hygienic process installations. This provides a practical connection for suitable process equipment and adapters. The connection supports secure installation of the thermowell. Its design is suitable for hygienic applications.
316L Stainless Steel Construction
E38826 is manufactured from stainless steel 316L / 1.4435. The wetted parts have a smooth Ra < 0.38 µm surface finish. This supports hygienic operation and easier cleaning. The stainless steel construction provides durability in demanding environments.
Compact 25 mm Installation
The thermowell has a 25 mm installation length and 83 mm bore/design length. It supports pressure ratings up to 16 bar. The compact configuration is useful where space around the process connection is limited.
Hygienic Ingold Ø25 mm process connection
316L stainless steel construction
16 bar pressure rating
Smooth Ra < 0.38 µm wetted surface
Compact 25 mm installation length
Easy temperature sensor replacement
Food processing
Beverage processing
Hygienic process equipment
Temperature monitoring
Process machinery
Industrial automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E38826 |
| Product Type | Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D3/DN25 Ingold/EL=25 |
| Application | For temperature sensors |
| Pressure Rating | 16 bar / 1.6 MPa |
| Material | Stainless steel 316L / 1.4435 |
| Sensor Connection | G3/8 internal thread, Ø3 mm |
| Process Connection | Ingold Ø25 mm |
| Surface Finish | Ra < 0.38 µm |
| Installation Length | 25 mm |
| Bore Length | 83 mm |
| Design Length | 83 mm |
| Weight | 868 g |
| Pack Quantity | 1 pc |
