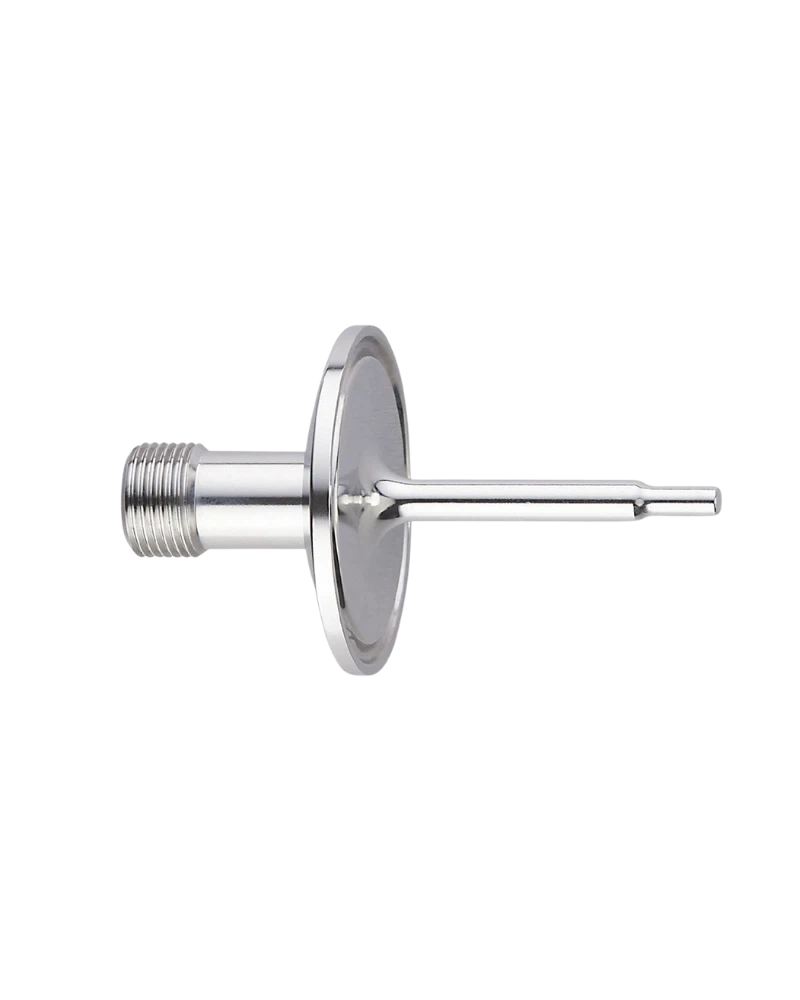

IFM E38825 is a hygienic thermowell with a 1 to 1.5 inch Clamp process connection for reliable temperature sensor protection. Its 316L stainless steel construction, 25 bar pressure rating and 50 mm installation length support demanding process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Effective Temperature Sensor Protection
E38825 protects temperature sensors from aggressive media and high flow velocities during process operation. The thermowell provides mechanical protection while allowing the sensor to accurately monitor process temperature. It can also simplify sensor replacement and maintenance. This makes it suitable for continuous industrial processes.
Hygienic Clamp Connection
The product features a Clamp DN25 to DN40 connection covering 1 to 1.5 inch process connections. The connection complies with DIN 32676 / ISO 2852 requirements. Its hygienic configuration is suitable for clean process installations. The Clamp design allows convenient installation and removal.
316L Stainless Steel Construction
The thermowell is manufactured from stainless steel 316L / 1.4435. This material provides strong corrosion resistance and mechanical durability. The wetted surface has a smooth Ra < 0.38 µm finish. This supports hygienic cleaning and process requirements.
Compact Installation
The E38825 provides a 50 mm installation length and 83 mm bore/design length. It is rated for process pressures up to 25 bar. The compact construction makes it suitable for temperature measurement points requiring a short insertion depth.
1 to 1.5 inch hygienic Clamp connection
316L stainless steel construction
25 bar pressure rating
Smooth wetted surface
50 mm installation length
Reliable temperature sensor protection
Food and beverage processing
Dairy equipment
Hygienic process machinery
Process tanks and vessels
Temperature monitoring
Industrial automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E38825 |
| Product Type | Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D3/1-1.5" CLAMP/EL=50 |
| Application | For temperature sensors |
| Pressure Rating | 25 bar / 2.5 MPa |
| Material | Stainless steel 316L / 1.4435 |
| Sensor Connection | G3/8 internal thread, Ø3 mm |
| Process Connection | Clamp DN25–DN40 / 1–1.5 inch |
| Standard | DIN 32676 / ISO 2852 |
| Surface Finish | Ra < 0.38 µm |
| Installation Length | 50 mm |
| Bore Length | 83 mm |
| Design Length | 83 mm |
| Weight | 108.4 g |
| Pack Quantity | 1 pc |
