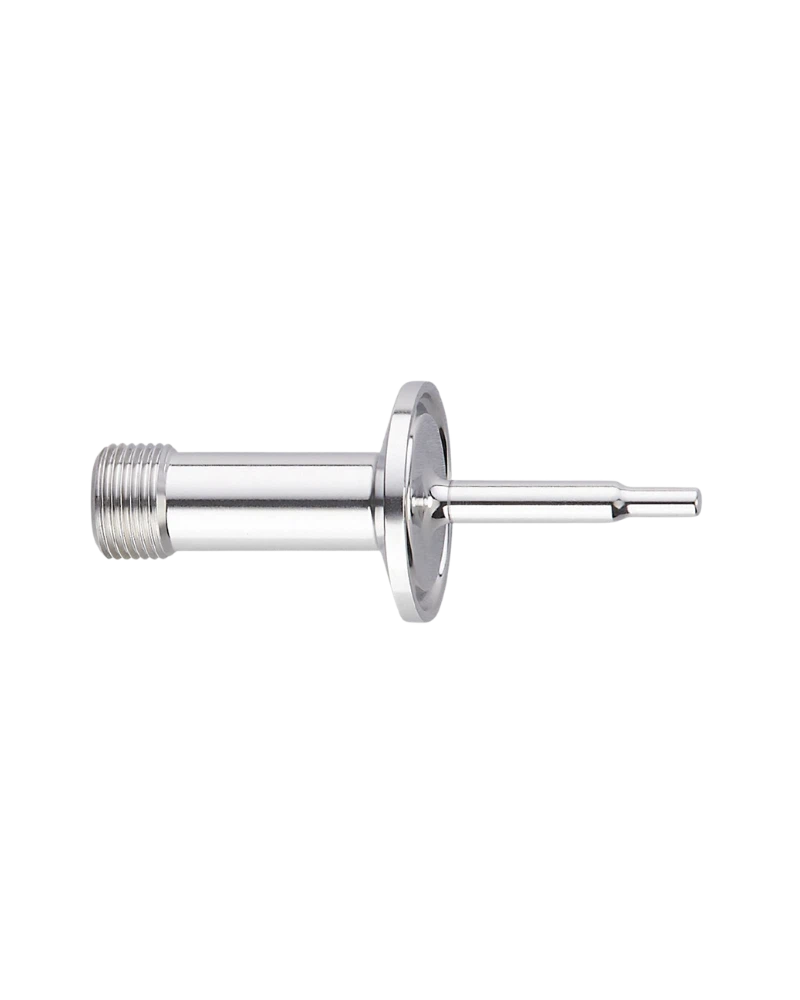

IFM E38795 is a hygienic thermowell designed for temperature sensors in food, beverage and industrial process applications. It features a DN10 to DN20 Clamp connection, 316L stainless steel construction and 38 mm installation length.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Hygienic Thermowell Protection
E38795 protects temperature sensors from aggressive media, high flow velocities and mechanical stress during process operation. The thermowell provides a protective barrier between the sensor and process medium. This improves sensor reliability and supports longer service life. It is designed for demanding hygienic applications.
Clamp Process Connection
The thermowell uses a Clamp DN10 to DN20 process connection suitable for 1/2 to 3/4 inch hygienic installations. The connection follows DIN 32676 / ISO 2852 standards. This provides a practical interface for hygienic process equipment. The Clamp design also simplifies installation and maintenance.
316L Stainless Steel Construction
The body is manufactured from stainless steel 316L / 1.4435 for durability and corrosion resistance. The wetted surface provides a smooth Ra < 0.38 µm finish. This supports hygienic process requirements and easier cleaning. The material is suitable for food and beverage processing environments.
Reliable Process Performance
E38795 is designed for temperature sensors with an 83 mm bore/design length. It provides a 38 mm installation length and supports pressure up to 25 bar. The configuration is suitable for compact hygienic temperature measurement points.
Hygienic Clamp process connection
316L stainless steel construction
25 bar pressure rating
Smooth Ra < 0.38 µm wetted surface
Compact 38 mm installation length
Reliable protection for temperature sensors
Food processing equipment
Beverage processing systems
Dairy processing
Hygienic production lines
Process temperature monitoring
Industrial automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E38795 |
| Product Type | Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D3/DIN10/15/20 CLAMP/EL=38 |
| Application | For temperature sensors |
| Pressure Rating | 25 bar / 2.5 MPa |
| Material | Stainless steel 316L / 1.4435 |
| Sensor Connection | G3/8 internal thread, Ø3 mm |
| Process Connection | Clamp DN10–DN20 / 1/2–3/4 inch |
| Standard | DIN 32676 / ISO 2852 |
| Surface Finish | Ra < 0.38 µm |
| Installation Length | 38 mm |
| Bore Length | 83 mm |
| Design Length | 83 mm |
| Weight | 70 g |
| Pack Quantity | 1 pc |
