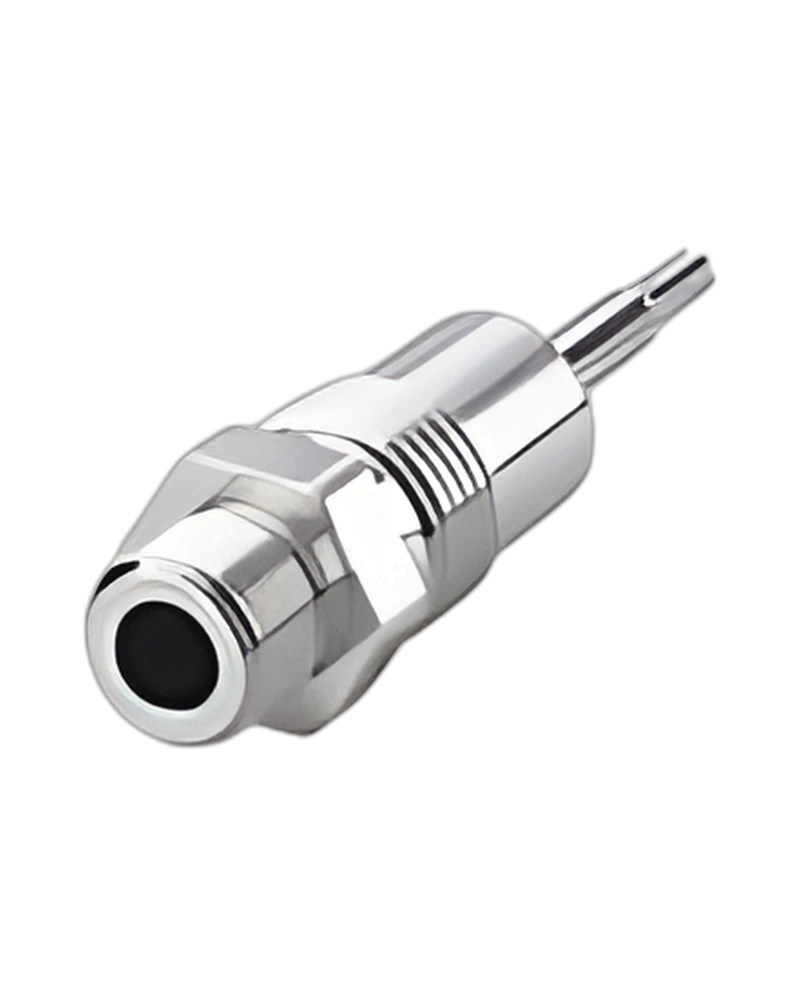

IFM E38515 is a compact thermowell designed to protect temperature sensors from aggressive media, high flow velocities and mechanical stress. It features a conical G1/2 process connection, G3/8 internal sensor connection and 30 mm installation length.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Compact Thermowell Design
IFM E38515 provides reliable protection for temperature sensors installed in industrial and hygienic process environments. The thermowell separates the sensor from direct contact with the process medium. This helps reduce mechanical and chemical stress on the sensing element. Its compact construction is suitable for applications with limited installation space.
Conical G1/2 Process Connection
The thermowell features a G1/2 external thread with a sealing cone for secure process installation. The conical connection provides a practical sealing arrangement when integrated with compatible process equipment. A G3/8 internal thread is provided for the temperature sensor. This configuration supports convenient sensor mounting and replacement.
316L Stainless Steel Construction
E38515 is manufactured from stainless steel 316L / 1.4435 for durable industrial performance. The material provides good resistance to corrosion and process-related mechanical stress. The wetted surface has a smooth Ra < 0.38 µm finish. This makes the thermowell suitable for hygienic and demanding process applications.
Reliable Sensor Protection
The thermowell is designed for temperature sensors with an 83 mm design length and has a 30 mm installation length. It supports pressure applications up to 16 bar. The protective design allows the sensor to remain protected while providing effective temperature measurement.
Reliable protection against aggressive process media
Protection from high flow velocities and mechanical stress
Compact 30 mm installation length
Durable 316L stainless steel construction
Conical G1/2 process connection
Smooth hygienic wetted surface
Industrial temperature monitoring
Hygienic process equipment
Food and beverage processing
Process machinery
Temperature measurement systems
Industrial automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E38515 |
| Product Type | Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D3/G1/2 conical/EL=30 |
| Application | For temperature sensors |
| Pressure Rating | 16 bar / 1.6 MPa |
| Material | Stainless steel 316L / 1.4435 |
| Sensor Connection | G3/8 internal thread, Ø3 mm |
| Process Connection | G1/2 external thread with sealing cone |
| Surface Finish | Ra < 0.38 µm |
| Installation Length | 30 mm |
| Bore Length | 83 mm |
| Design Length | 83 mm |
| Tightening Torque | 20 Nm |
| Weight | 97 g |
| Pack Quantity | 1 pc |
