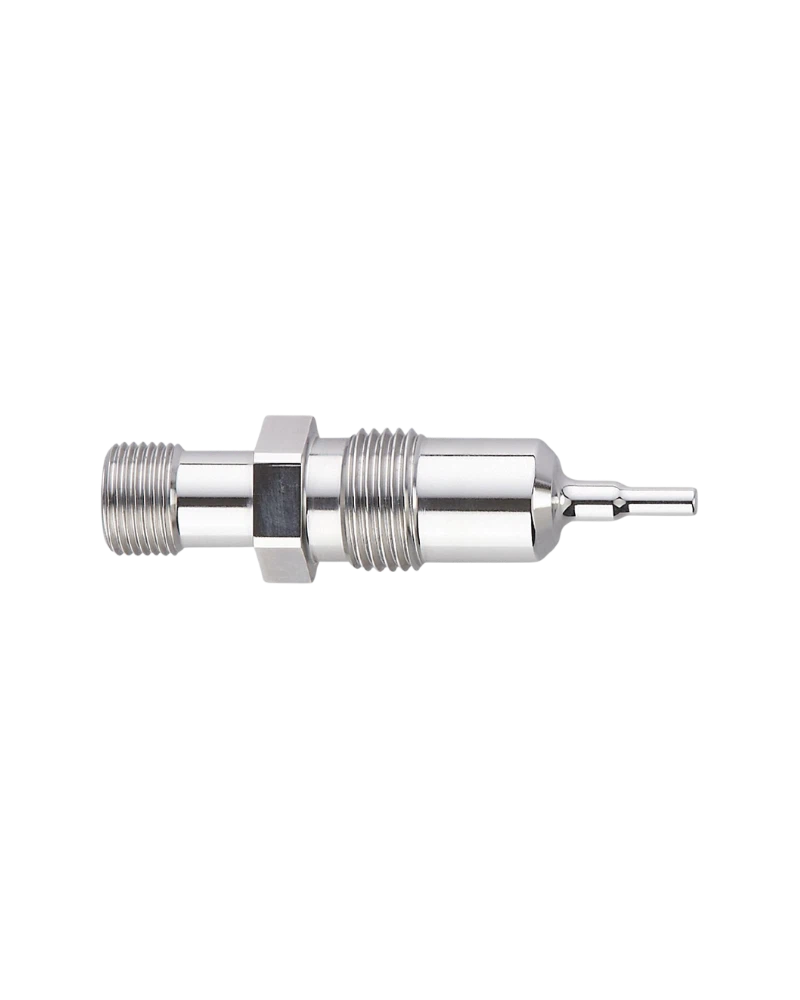

IFM E38505 is a compact hygienic thermowell with a conical G1/2 process connection for temperature sensors. Its 316L stainless-steel construction, 20 mm installation length and 16 bar pressure rating support reliable process temperature measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Conical G1/2 Connection
E38505 features an external G1/2 threaded process connection with a sealing cone, providing a compact and practical interface for suitable temperature sensor installations.
Compact Sensor Protection
The thermowell is designed for temperature sensors with an 83 mm design length and provides a 20 mm installation length. It protects the sensing element from direct process exposure.
316L Stainless Steel
The body is manufactured from stainless steel 316L / 1.4435. Its wetted surface finish of Ra < 0.38 µm supports hygienic process applications and helps maintain a clean sensor interface.
Reliable Process Integration
E38505 provides a G3/8 internal sensor connection with Ø3 mm bore and a 16 bar pressure rating. The compact design makes it suitable for hygienic temperature measurement assemblies.
Compact thermowell design
316L stainless-steel construction
Conical G1/2 process connection
16 bar pressure rating
Smooth Ra < 0.38 µm wetted surface
Suitable for hygienic temperature measurement
Food processing equipment
Beverage processing systems
Hygienic temperature measurement
Process machinery
Temperature monitoring systems
Industrial automation applications
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E38505 |
| Product Type | Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D3/G1/2 conical/EL=20 |
| Application | For temperature sensors |
| Pressure Rating | 16 bar / 1.6 MPa |
| Material | Stainless steel 316L / 1.4435 |
| Sensor Connection | G3/8 internal thread, Ø3 mm |
| Process Connection | G1/2 external thread with sealing cone |
| Tightening Torque | 20 Nm |
| Surface Finish | Ra < 0.38 µm |
| Design EL | 83 mm |
| Installation Length EL | 20 mm |
| Bore Length BL | 83 mm |
| Weight | 101.2 g |
| Pack Quantity | 1 pc |
