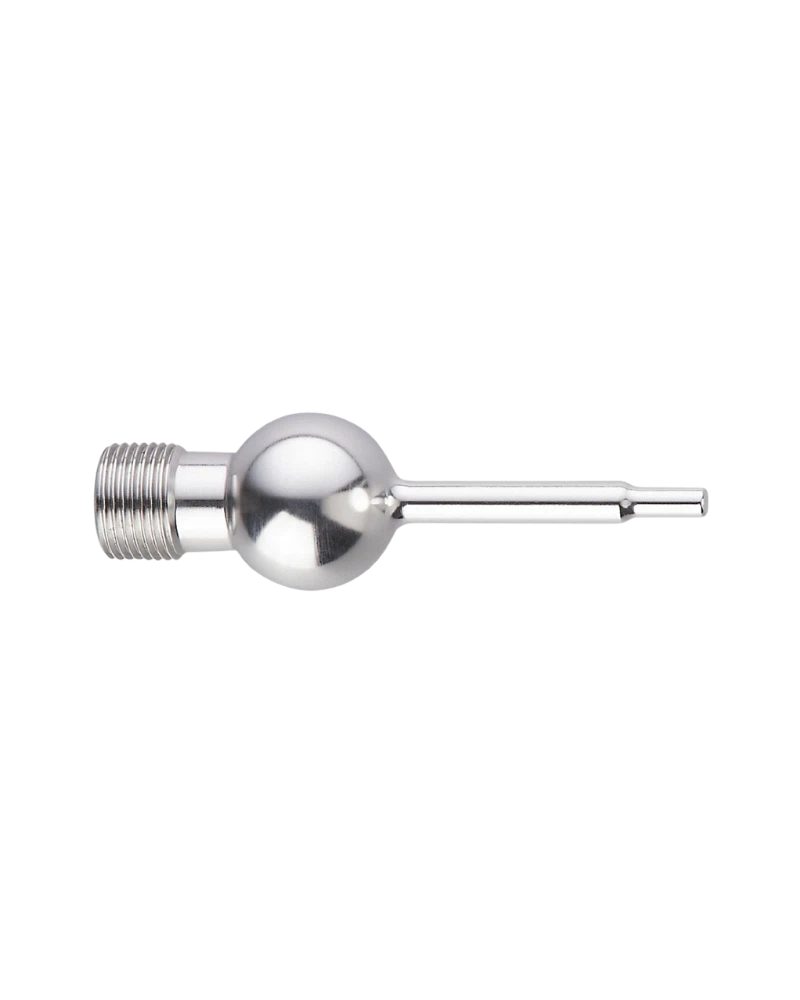

IFM E38425 is a compact welding thermowell designed to protect temperature sensors in demanding process environments. It features a 316L stainless-steel body, Ø25 mm welding adapter, G3/8 internal connection and 160 bar pressure rating.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Compact Welding Design
E38425 is designed for applications requiring a compact welded thermowell configuration. Its welding adapter provides a secure connection to suitable process equipment while maintaining effective sensor protection.
High-Pressure Performance
With a pressure rating of 160 bar / 16 MPa, the thermowell is suitable for demanding applications where temperature sensors need protection against high process pressures.
316L Stainless Steel Construction
The product uses stainless steel 316L / 1.4435 for strong and corrosion-resistant construction. Its wetted surface has a Ra < 0.38 µm finish for hygienic process requirements.
Short Installation Length
The model provides a 50 mm installation length and 83 mm bore length. Its G3/8 internal thread and Ø3 mm sensor interface allow connection with compatible temperature sensors.
160 bar pressure rating
Durable 316L stainless-steel body
Secure welded process connection
Ø25 mm welding adapter
Smooth Ra < 0.38 µm surface
Compact 50 mm installation length
Hygienic process equipment
Food and beverage production
Industrial temperature measurement
High-pressure process systems
Process machinery
Temperature sensor protection
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E38425 |
| Product Type | Welding Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D3/WELD-IN/EL=50 |
| Application | For temperature sensors |
| Pressure Rating | 160 bar / 16 MPa |
| Material | Stainless steel 316L / 1.4435 |
| Sensor Connection | G3/8 internal thread, Ø3 mm |
| Process Connection | Welding adapter Ø25 mm |
| Surface Finish | Ra < 0.38 µm |
| Design EL | 83 mm |
| Installation Length EL | 50 mm |
| Bore Length BL | 83 mm |
| Weight | 79.6 g |
| Pack Quantity | 1 pc |
