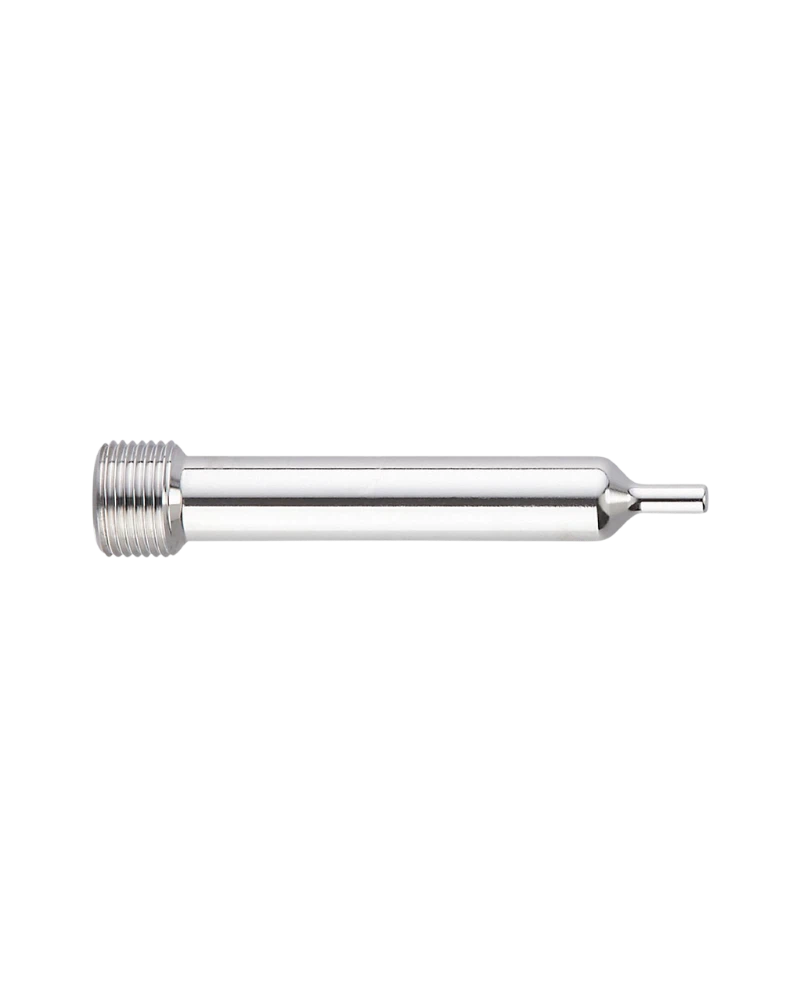

IFM E38395 is a welding thermowell designed for temperature sensors in high-pressure and hygienic process applications. Its 316L stainless-steel construction, Ø12 mm welding adapter and 160 bar pressure rating provide strong sensor protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Welding Installation
E38395 uses a welding adapter with a Ø12 mm process connection, allowing the thermowell to be permanently integrated into suitable process equipment. The welded design provides a secure and robust installation.
High-Pressure Protection
The thermowell offers a pressure rating of up to 160 bar / 16 MPa. This makes it suitable for demanding process conditions where the temperature sensor requires strong mechanical protection.
316L Stainless Steel
The thermowell is manufactured from stainless steel 316L / 1.4435. The wetted surface has a very smooth Ra < 0.38 µm finish, supporting hygienic process requirements.
Compact Sensor Design
E38395 has a G3/8 internal sensor connection with Ø3 mm bore. The design provides an installation length of 70 mm and bore length of 83 mm for compatible temperature sensors.
160 bar high-pressure rating
316L stainless-steel construction
Robust welding installation
Smooth Ra < 0.38 µm wetted surface
Compact sensor connection
Suitable for hygienic applications
Food and beverage processing
High-pressure process equipment
Hygienic production systems
Process temperature monitoring
Industrial tanks and vessels
Temperature measurement assemblies
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E38395 |
| Product Type | Welding Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D3/WELD-IN/EL=85 |
| Application | For temperature sensors |
| Pressure Rating | 160 bar / 16 MPa |
| Material | Stainless steel 316L / 1.4435 |
| Sensor Connection | G3/8 internal thread, Ø3 mm |
| Process Connection | Welding adapter Ø12 mm |
| Surface Finish | Ra < 0.38 µm |
| Design EL | 83 mm |
| Installation Length EL | 70 mm |
| Bore Length BL | 83 mm |
| Weight | 57.65 g |
| Pack Quantity | 1 pc |
