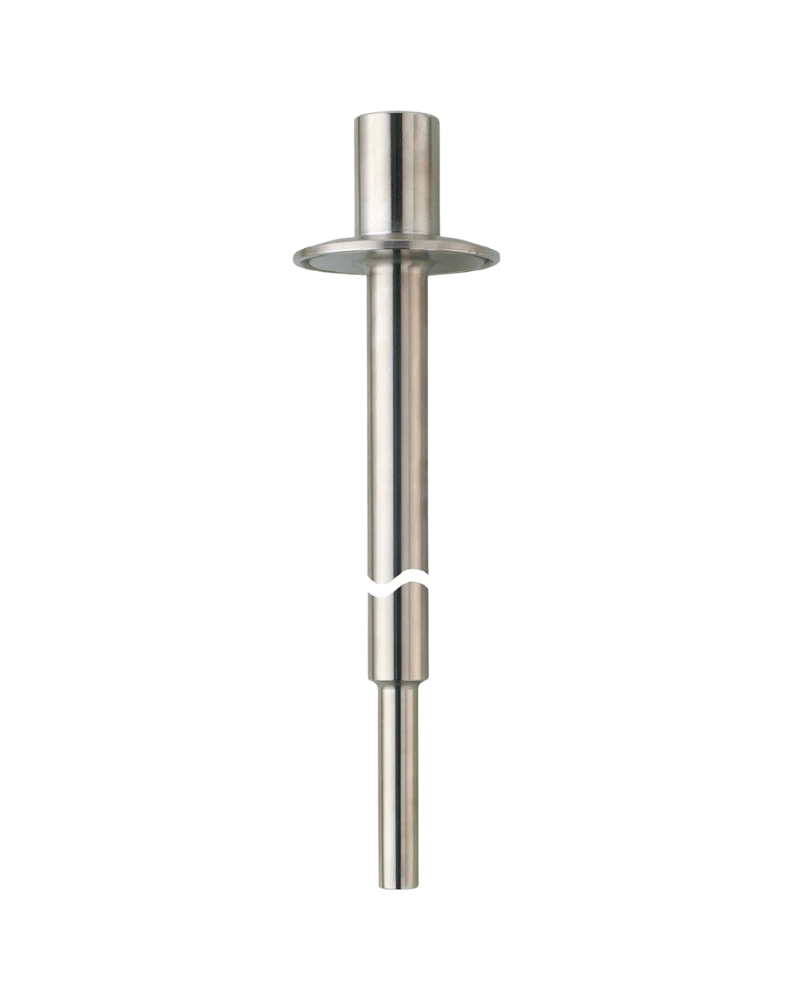

IFM E37910 is a hygienic 2-inch Clamp thermowell designed to protect temperature sensors in process applications. Its 316L stainless-steel body, 100 mm sensor configuration and 25 bar pressure rating provide dependable performance in hygienic environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
2-Inch Clamp Process Connection
E37910 features a DN50 2-inch Clamp process connection manufactured according to DIN 32676 / ISO 2852. This provides a hygienic and practical connection for compatible process equipment.
Temperature Sensor Protection
The thermowell protects the temperature sensor from aggressive process media and high flow velocities. It also allows the sensor to be replaced while keeping the protective thermowell installed.
316L Stainless Steel
The body is manufactured from stainless steel 316L / 1.4404. The wetted surfaces have a Ra < 0.6 µm finish, making the thermowell suitable for hygienic applications.
Reliable Process Performance
E37910 has a 100 mm sensor designation, 64 mm installation length and 25 bar pressure rating. It provides a robust solution for temperature measurement in larger hygienic process connections.
2-inch hygienic Clamp connection
316L stainless-steel construction
25 bar pressure rating
Ra < 0.6 µm wetted surface
Reliable sensor protection
Convenient sensor replacement and maintenance
Food and beverage industries
Dairy processing
Hygienic process plants
Process tanks and vessels
Industrial temperature monitoring
Automation and process control
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E37910 |
| Product Type | Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D6/2" CLAMP/L=100 |
| Application | For temperature sensors |
| Pressure Rating | 25 bar / 2.5 MPa |
| Material | Stainless steel 316L / 1.4404 |
| Sensor Connection | 1/2" NPS, Ø6 mm |
| Sensor Compatibility | Suitable for G1/2 and 1/2" NPT |
| Process Connection | Clamp DN50 (2") |
| Standard | DIN 32676 / ISO 2852 |
| Surface Finish | Ra < 0.6 µm |
| Installation Length EL | 64 mm |
| Bore Length BL | 101.6 mm |
| Weight | 296.2 g |
| Pack Quantity | 1 pc |
