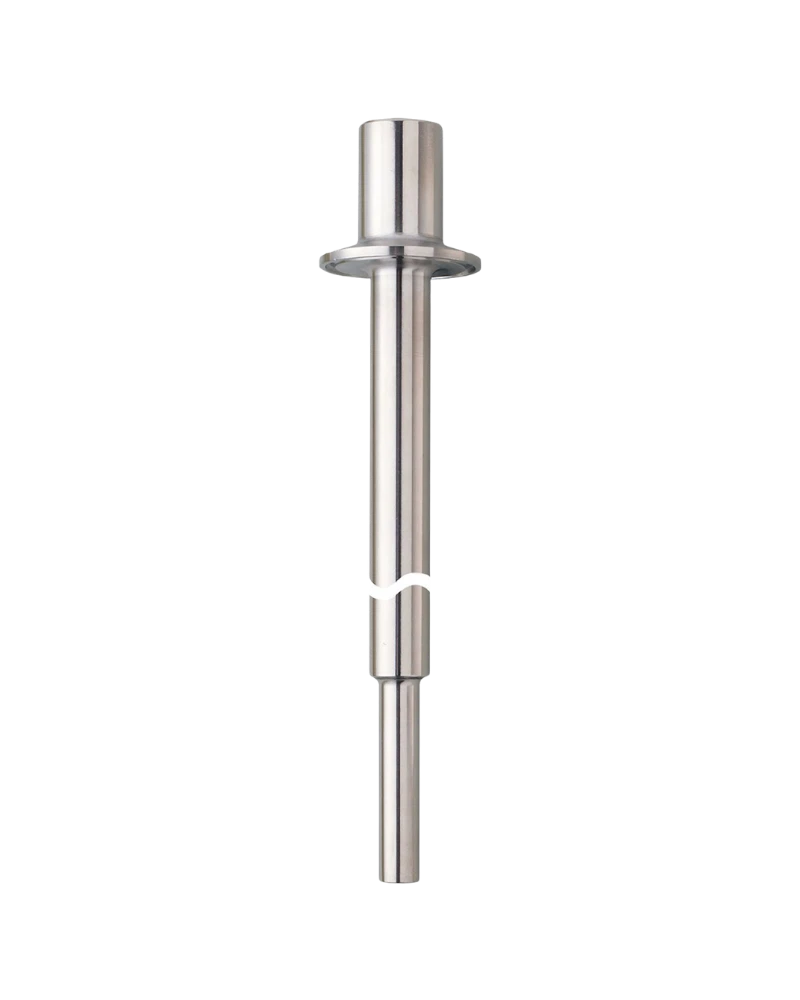

IFM E37830 is an extended 1.5-inch Clamp thermowell designed for temperature sensors used in deeper process measurement points. Its 316L stainless-steel construction, hygienic finish and 25 bar pressure rating support reliable industrial operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Sensor Reach
E37830 is designed for temperature measurement applications requiring an extended thermowell configuration. Its longer insertion arrangement enables suitable positioning of the temperature sensor within process equipment.
Hygienic Clamp Connection
The thermowell uses a DN25–DN40 1.5-inch Clamp process connection based on DIN 32676 / ISO 2852. This provides a practical hygienic interface for process installations.
Durable Stainless Steel
The product is constructed from stainless steel 316L / 1.4404, providing durability and corrosion resistance. The wetted surface has a Ra < 0.6 µm finish for hygienic process environments.
25 bar Pressure Rating
E37830 supports pressure ratings up to 25 bar and is designed for temperature sensors with a 300 mm designation. The model provides an installation length of 191 mm and bore length of 228.6 mm.
Extended 191 mm installation length
1.5-inch hygienic Clamp connection
316L stainless-steel construction
25 bar pressure rating
Smooth wetted surface
Suitable for deeper temperature measurement
Food processing plants
Beverage production systems
Hygienic process equipment
Large process vessels
Industrial temperature monitoring
Production automation systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E37830 |
| Product Type | Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D6/1.5" CLAMP/L=230 |
| Application | For temperature sensors |
| Pressure Rating | 25 bar / 2.5 MPa |
| Material | Stainless steel 316L / 1.4404 |
| Sensor Connection | 1/2" NPS, Ø6 mm |
| Sensor Compatibility | Suitable for G1/2 and 1/2" NPT |
| Process Connection | Clamp DN25–DN40 (1–1.5") |
| Standard | DIN 32676 / ISO 2852 |
| Surface Finish | Ra < 0.6 µm |
| Installation Length EL | 191 mm |
| Bore Length BL | 228.6 mm |
| Pack Quantity | 1 pc |
