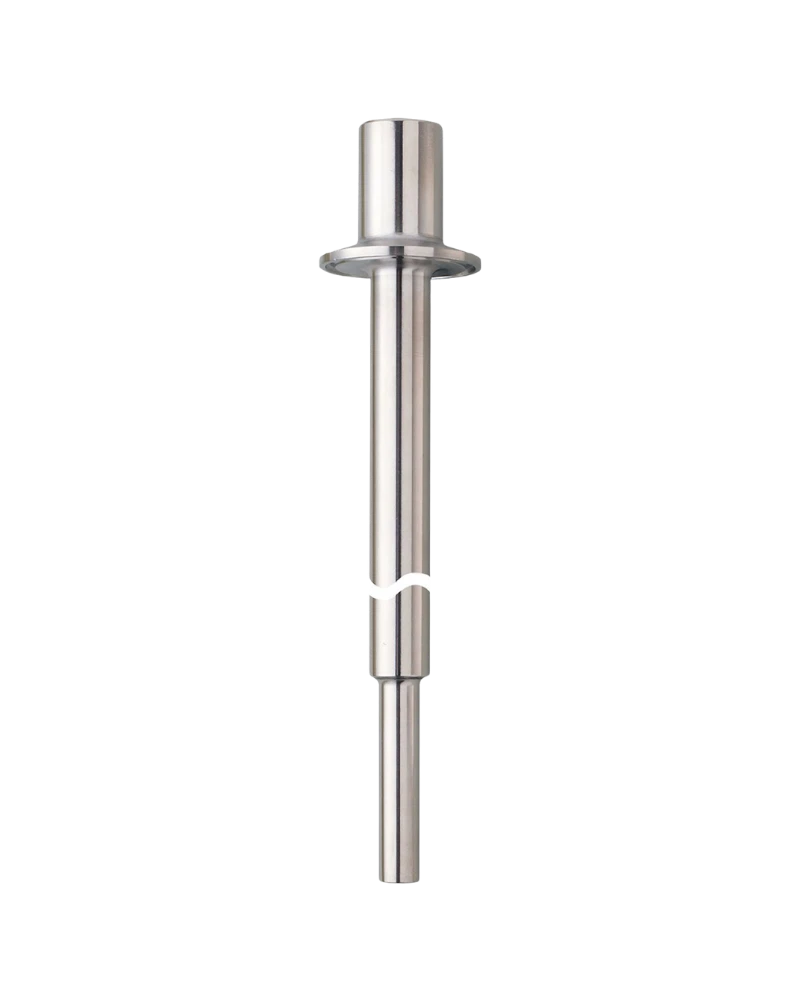

IFM E37820 is a 1.5-inch Clamp thermowell designed for temperature sensors requiring an extended insertion depth. Its 316L stainless-steel body, hygienic surface finish and 25 bar pressure rating make it suitable for demanding process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Thermowell Design
E37820 provides a longer sensor installation configuration than the shorter Clamp models, making it suitable for process points requiring deeper temperature measurement. The thermowell protects the sensor from direct process exposure.
Hygienic Clamp Connection
The 1.5-inch Clamp process connection follows DIN 32676 / ISO 2852 requirements. This allows convenient mounting and removal while supporting hygienic process installation practices.
316L Stainless Steel Construction
The thermowell is manufactured from stainless steel 316L / 1.4404 for durability and corrosion resistance. Its wetted surface has a smooth Ra < 0.6 µm finish, supporting clean process environments.
Reliable Pressure Resistance
E37820 is rated for pressures up to 25 bar and provides a 115 mm installation length. This combination makes it suitable for deeper sensor placement in hygienic and industrial processes.
Extended sensor installation capability
1.5-inch hygienic Clamp connection
316L stainless-steel construction
25 bar pressure rating
Smooth wetted surface finish
Easy installation and sensor maintenance
Food and beverage processing
Dairy processing equipment
Hygienic production machinery
Process tanks and vessels
Temperature monitoring systems
Industrial automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E37820 |
| Product Type | Thermowell for Temperature Sensors |
| Designation | THERMOWELL, D6/1.5" CLAMP/L=150 |
| Application | For temperature sensors |
| Pressure Rating | 25 bar / 2.5 MPa |
| Material | Stainless steel 316L / 1.4404 |
| Sensor Connection | 1/2" NPS, Ø6 mm |
| Sensor Compatibility | Suitable for G1/2 and 1/2" NPT |
| Process Connection | Clamp DN25–DN40 (1–1.5") |
| Standard | DIN 32676 / ISO 2852 |
| Surface Finish | Ra < 0.6 µm |
| Installation Length EL | 115 mm |
| Bore Length BL | 151.6 mm |
| Pressure Resistance | 25 bar |
| Pack Quantity | 1 pc |
